5.1

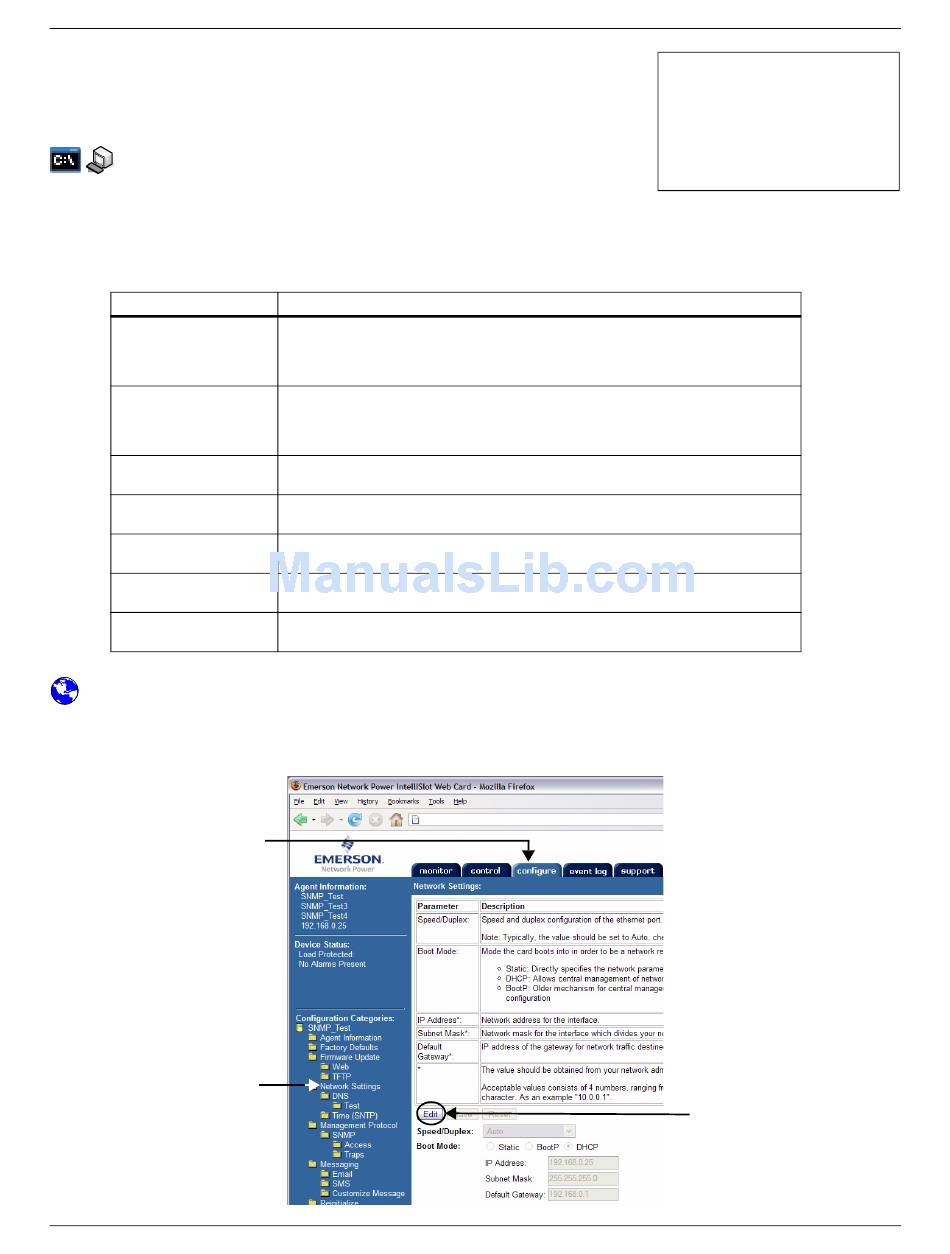

Boot/IP Settings

The Boot/IP Settings Menu is used to set parameters for network
access to the Web card. Consult your network administrator for these
settings.
Terminal Emulation (Serial or TCP/IP Connection) / Telnet
To change any parameter:
1. Choose IP Network Settings from the Main Menu, then Boot/IP Settings.
2. Select an option to change—for example, Speed/Duplex, then enter settings according to the
following guide.
Table 9 Boot/IP settings range
Parameter
Speed/ Duplex
Boot Mode
IP address
Netmask
Default Gateway
DHCP/BootP Server
DNS Server
* Consult your network administrator for proper settings.
Web Interface
To access Boot/IP Settings through the Web interface:
• Click on the Configure tab, then Network Settings in the left panel and finally Edit beneath
the table of parameters and descriptions. After making changes, click Save.
Configure tab
Network
Settings
Description & Valid Settings*
Speed and duplex configuration of the Ethernet port.
• Auto (default—use this setting if unknown)
• 10Mbs/Half Duplex
• 10Mbs/Full Duplex
Startup mode enabling the Web card to be a network-ready device.
• Static - Fixed network addresses and other parameters
• DHCP - Central management using dynamic network addresses
• BootP - Older mechanism for central management of network addresses
Network address for the Liebert unit.
Four numbers (0-255) separated by periods (.)—for example, 10.0.0.5
Network mask that divides your network into manageable segments.
Four numbers (0-255) separated by periods (.)—e.g., 255.255.255.0
IP address of the gateway for network traffic to other networks or subnets.
Four numbers (0-255) separated by periods (.)—e.g., 10.0.0.1
Device on a network that assigns IP addresses that are not static.
Four numbers (0-255) separated by periods (.)—for example, 192.168.0.5
IP address of the Domain Name Server for the network.
Four numbers (0-255) separated by periods (.)—e.g., 10.0.0.1
13
• 100Mbs/Half Duplex
• 100Mbs/Full Duplex
Network Settings
Boot/IP Settings Menu
----------------------
1: Speed/Duplex Auto
2: Boot mode Static
3: IP Address 192.168.0.125
4: Netmask 255.255.255.0
5: Default Gateway 192.168.0.1
6: DNS Server 0.0.0.0
<ESC>: Cancel menu level
Please select a key ?>
Edit
