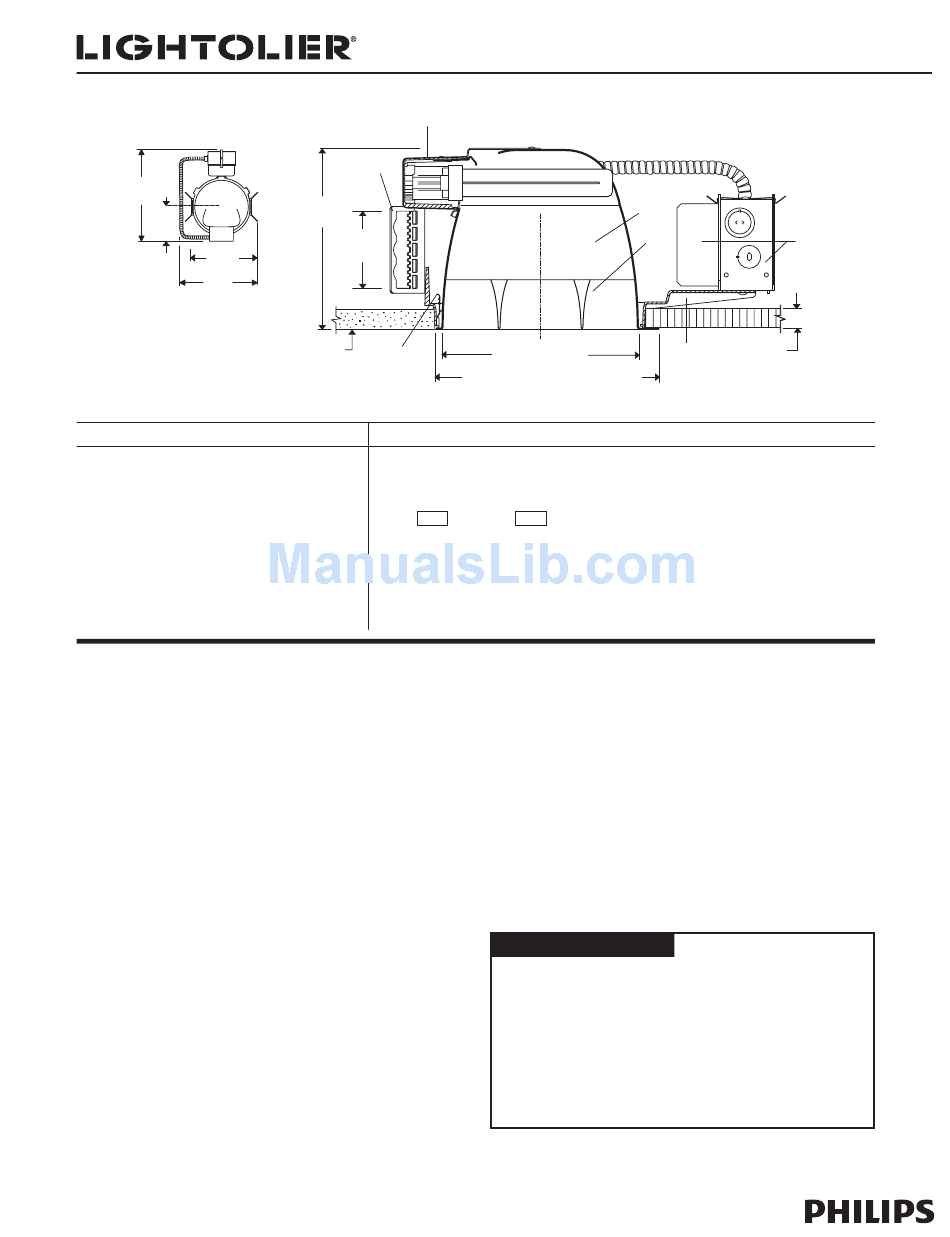

Lightolier Calculite 8056TB Specification

Page 1 of 2
14 5/8"
(372 mm)
5 1/4"
(134 mm)
Ceiling Cutout: 8" (203 mm) Dia.
Reflector Trim
8056TBW
Clear Iridescence Free, White Flange
8056TBP Clear Iridescence Free, Polished Flange
8056CTBW Comfort Clear, White Flange
8056CTBP Comfort Clear, Polished Flange
Features
1. Reflector: 16 ga. Specular Alzak
Self-flanged trim.
2. Socket Cup: Snaps onto reflector neck to assure consistently correct optical
alignment without tools.
4. Retaining Springs: Precision-tooled steel friction springs secure reflector
to mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture.
Use 3/4" or 1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
6. Ballast/J-Box: Outboard mounted to reduce heat transfer and maintain
lamp efficacy and life. Service from below without tools.
7. Turbo Louver: Radial assembly; Specular Alzak
keyed for orientation. 50° visual cutoff, medium beam.
Electrical
Note: For ballast electrical data and latest lamp/ballast compatibility refer to
"Ballast" specification sheet for complete electrical data.
UL listed for through branch circuit wiring with max of (8) No. 12 AWG, 90° C
supply conductors.

Options and Accessories

Emergency Add suffix EM*
Chicago Plenum Add suffix LC
Existing/Thk. Ceiling FA EC7*
Emergency Ltg. Kit FA EM3E* (4 pin)
FA EM2T* (2 pin)
Lightolier is a Philips group brand
5
6 7/8"
(175 mm)
3"
(76 mm)
11 3/8"
(289 mm)
12 1/2"
(318 mm)
Top View
1" (25 mm) min.-
2 1/8" (54 mm) max.
Frame-In Kit
S7126HU 7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
S7218HU 7" aperture, 2 lamp 18W Quad Tube CFL (120/277V) 2-pin and 4-pin
S7226HU 7" aperture, 2 lamp 26W Quad Tube CFL (120/277V) 2-pin and 4-pin
Dimming Options:
S7126H
CU3
J1LD3 Lutron 5% Dimming (120V)
J2LD3 Lutron 5% Dimming (277V)
JUM7 Mark 7 Dimming (120/277V
J1MX Mark 10 Dimming (120V)
J2MX Mark 10 Dimming (277V)
Other dimming product available, please consult factory
aluminum. Iridescence Free
®
aluminium, removable and
®

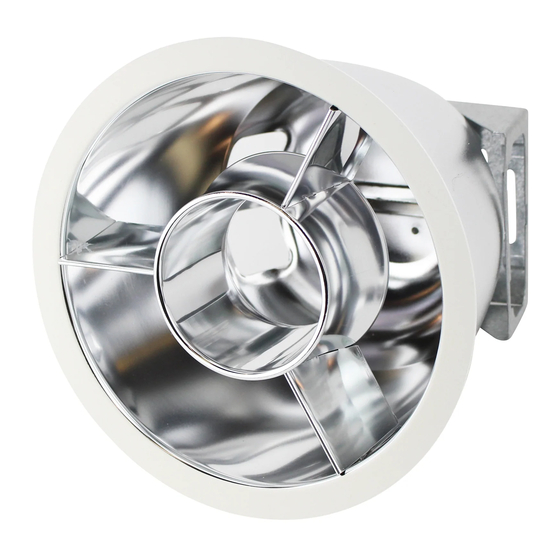

Calculite CFL Open Downlight
®
2
4
7 3/8" (187 mm) Dia.
7 7/8" Trimless 8 5/8" Self-Flanged Trim
(200 mm)
or S7218H or S7226H
Lightolier PowerSpec 3% Dimming (120/277V)
Options and Accessories (continued)
finish. Fuse (Slow Blow)
™
*See Spec. Sheets: FAEC, FAEM
Mounting Bars & Accessories; see Specification Sheet MBA.
Sloped Ceiling Adapters; see Specification Sheet SCA.
Labels
UL listed for damp locations, I.B.E.W.
Alzak ® is a registered trademark of ALCOA.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • F0711
