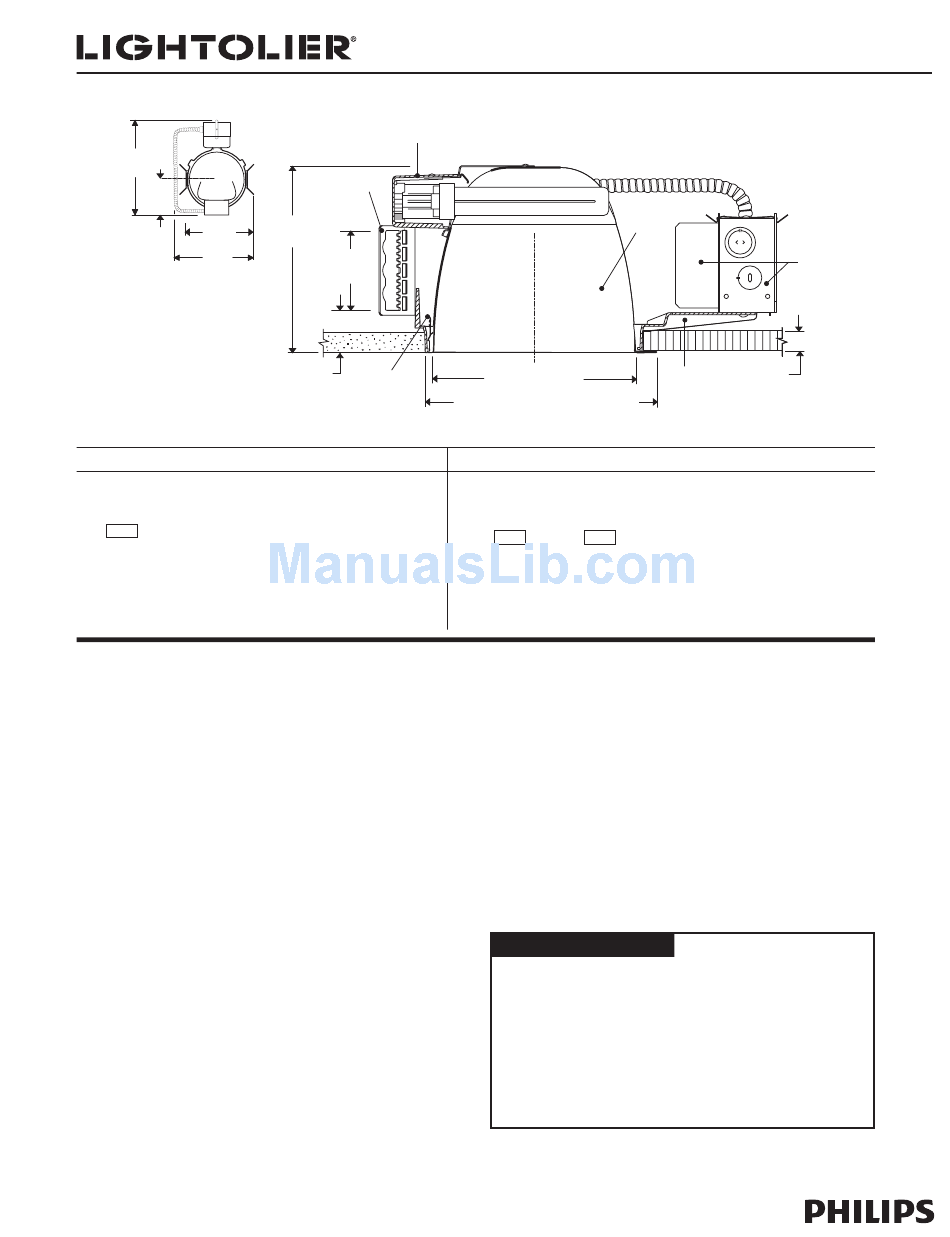

Lightolier Calculite 8056 Specification

Page 1 of 2
14-5/8"
(372 mm)
5-1/4"
(134 mm)
Top View
Reflector Trim
8056 CLW Clear Iridescence Free, White Flange
8056 CLP Clear Iridescence Free, Polished Flange
8056 CL
Clear Iridescence Free, Molded Trim Ring
8056 Add suffix. See options for other finishes.
Features
1. Reflector: 16 ga. Die-formed aluminum, Anobrite finish.
2. Socket Cup: Snaps onto reflector neck to assure consistently correct optical
alignment without tools.
4. Retaining Springs: Precision-tooled steel friction springs secure reflector to
mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or
1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
6. Ballast/J-Box: Outboard mounted to reduce heat transfer and maintain
lamp efficacy and life. Service from below without tools.
Electrical
Note: For ballast electrical data and latest lamp/ballast compatibility refer to
"Ballast" specification sheet for complete electrical data.
UL listed for through branch circuit wiring with max of (8) No. 12 AWG, 90° C
supply conductors.

Options and Accessories

Comfort Clear ™ Finishes
CCL
Clear
Diffuse CCD
Champagne Bronze CCZ
Specify desired flange
1
W White, P Polished
Factory Emergency
Add suffix LC
Chicago Plenum
Lightolier is a Philips group brand
5
6-7/8"
11-3/8"
(175 mm)
(289 mm)
12-1/2"
3"
(318 mm)
(76 mm)
1" (25 mm) min.-
2-1/8" (54 mm) max.
1 Other Finishes
WH
White
Add suffix EM*
Calculite
7 3/8" Aperture (2) Quad Tube Horizontal Lamp
2
4
7-3/8" (187 mm) Dia.
7-7/8" Trimless 8-5/8" Self-Flanged Trim
(200 mm) (209 mm)
Frame-In Kit
S7218HU 7" aperture, 2 lamp 18W Quad Tube CFL (120/277V) 4-pin
S7226HU 7" aperture, 2 lamp 26W Quad Tube CFL (120/277V) 4-pin
Dimming Options:
S7218H or S7226H
CU3 Lightolier PowerSpec 3% Dimming (120/277V)
J1LD3 Lutron 5% Dimming (120V)
JUM7 Mark 7 Dimming (120/277V
J2MX Mark 10 Dimming (277V)
Other dimming product available, please consult factory
Options and Accessories (continued)
Existing/Thk. Ceiling
Field Emergency Kit
Fuse (Slow Blow)
*See Spec. Sheets: FAEC, FAEM
Mounting Bars & Accessories; see Specification Sheet MBA.
Sloped Ceiling Adapters; see Specification Sheet SCA.
Labels
UL listed for damp locations
Alzak is a registered trademark of ALCOA.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • D0711
CFL Open Downlight
®
1
3
1-1/8" (29 mm) max.
Ceiling Thickness
J2LD3
Lutron 5% Dimming (277V)
J1MX
Mark 10 Dimming (120V)
FA EC7*
FA EM3E* (4 pin)
FA EM4E* (4 pin)
Add Suffix F
Type:
8056
6
