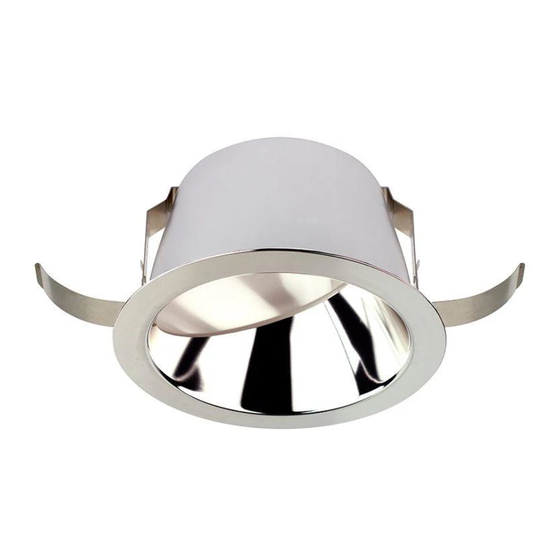

Lightolier Calculite 8086 Specification

Page 1 of 3
14-5/8"
(372 mm)
5-1/4"
(134 mm)
Top View
Reflector Trim
8086 CLW Clear Iridescence Free, White Flange
8086 CLP Clear Iridescence Free, Polished Flange
8086 CL
Clear Iridescence Free, Molded Trim Ring
8086
Add suffix. See options for other finishes.
Features
1. Downlight Wall Washer Reflector: 16 ga. Specular Alzak
lamp cutoff to lamp and lamp image. Provides vertical surface wall wash and
downlighting. Iridescence Free finish. Self-flanged or flangeless with molded
white trim ring (field paintable).
2. Socket Cup: Snaps onto reflector neck to assure consistently correct optical
alignment without tools.
4. Retaining Springs: Precision-tooled steel friction springs secure reflector to
mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or 1
1/2" lathing channel, 1/2" EMT, or optional mounting bars.
6. Ballast/J-Box: Outboard mounted to reduce heat transfer and maintain lamp
efficacy and life. Service from below without tools.
Electrical
Note: For ballast electrical data and latest lamp/ballast compatibility refer to
"Ballast" specification sheet for complete electrical data.
UL listed for through branch circuit wiring with max of (8) No. 12 AWG, 90° C
supply conductors.

Options and Accessories

Comfort Clear Finishes
™
Clear CCL
Diffuse CCD
Champagne Bronze CCZ
Specify desired flange
1
W White, P Polished
Blank - Molded Ring
Lightolier is a Philips group brand
5
6-7/8"
(175 mm)
3"
11-3/8"
(76 mm)
(289 mm)
12-1/2"
(318 mm)
(289 mm)
1" (25 mm) min.
2-1/8" (54 mm) max.
Frame-In Kit
S7218HU 7" aperture, 2 lamp 18W Quad Tube CFL (120/277V) 2-pin and 4-pin
S7226HU 7" aperture, 2 lamp 26W Quad Tube CFL (120/277V) 2-pin and 4-pin
Dimming Options:
S7218H
CU3
J2LD3 Lutron 5% Dimming (277V)
J1MX
Other dimming product available, please consult factor
®
Other Finishes
1
White WH
Calculite
®
2
7-3/8" (187 mm) Dia.
4
7-7/8" Trimless 8-5/8" Self-Flanged Trim
(200 mm) (209 mm)
or S7226H
Lightolier PowerSpec 3% Dimming (120/277V)
Mark 10 Dimming (120V)
Options and Accessories (continued)
aluminum, 55° Emergency
Chicago Plenum
Existing/Thk. Ceiling
Emergency Ltg. Kit
Fuse (Slow Blow)
*See Spec. Sheets: FAEC, FAEM
Mounting Bars & Accessories; see Specification Sheet MBA.
Sloped Ceiling Adapters; see Specification Sheet SCAπ
Labels
UL listed for damp locations, I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • B0209
CFL Open Wall Washer
7" Aperture (2) Quad Tube Horizontal Lamp
1
1-1/8" (29 mm) max
3
Ceiling Thickness.
J1LD3 Lutron 5% Dimming (120V)
JUM7 Mark 7 Dimming (120/277V
J2MX Mark 10 Dimming (277V)
Add suffix EM*
Add suffix LC
FA EC7*
FA EM3E* (4 pin)
FA EM4E* (4 pin)
FA EM2T* (2 pin)
Add Suffix F
Type:
8086
6
