Lightolier Xceed 1050SQSLW Specification

Page 1 of 2

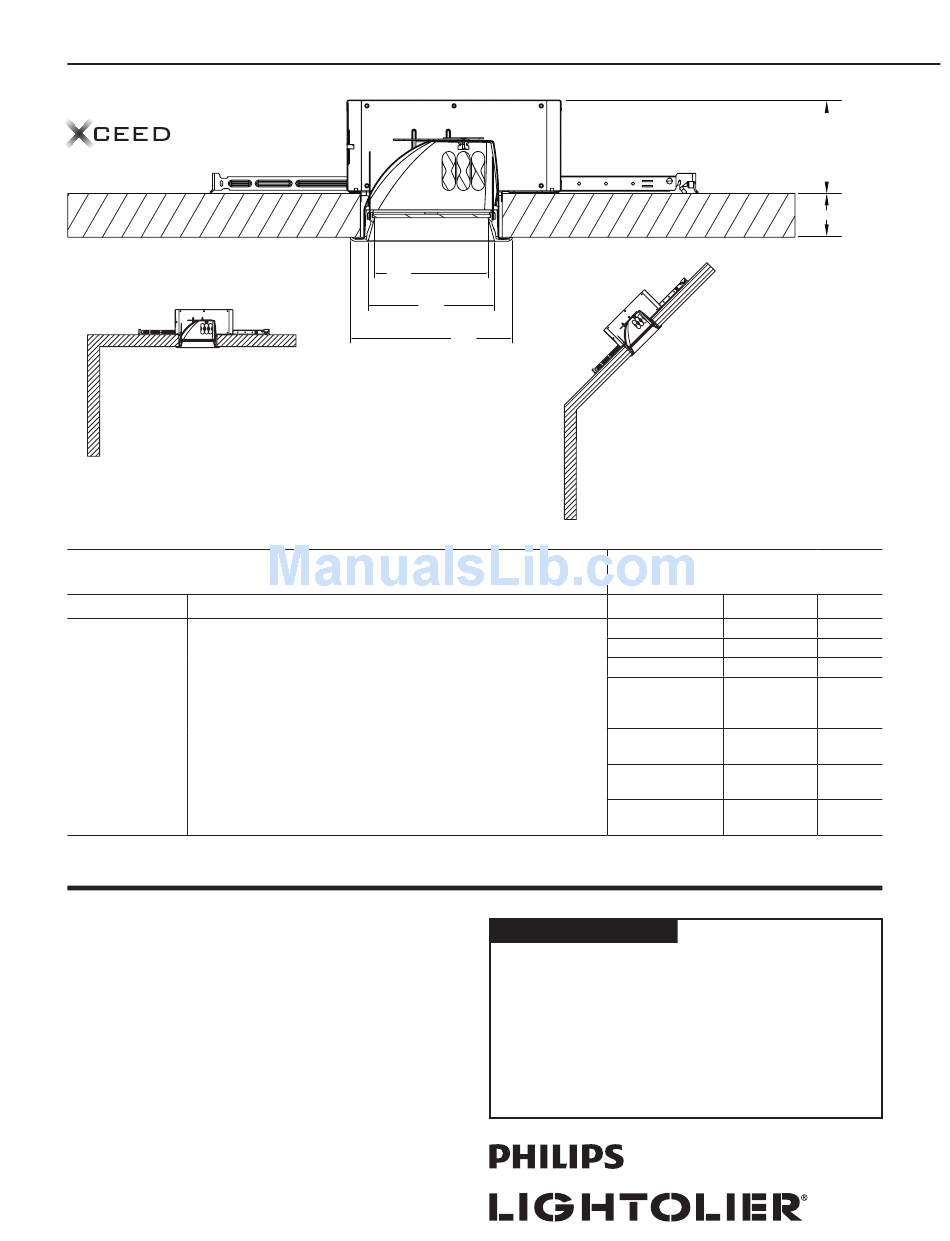

Application 1:
Wall Wash Orientation
Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.
Xceed Compact Fluorescent Lensed Square Reflector Trims
Catalog No. Description
1050SQSLWWB 5" Horizontal Lensed Slope/Wall Wash - White Baffle, White Flange
1050SQSLWCDW 5" Horizontal Lensed Slope/Wall Wash - Clear Diffuse, White Flange
1050SQSLWCDP 5" Horizontal Lensed Slope/Wall Wash - Clear Diffuse, Clear Diffuse Flange
1050SQSLWWDW
5" Horizontal Lensed Slope/Wall Wash - Warm Diffuse, White Flange
1050SQSLWWDP
5" Horizontal Lensed Slope/Wall Wash - Warm Diffuse, Warm Diffuse Flange
1050SQSLWWC 5" Horizontal Lensed Slope/Wall Wash - White Cone, White Flange
1050SQSLWFGWB 5" Horizontal Frosted Lensed Slope/ Wall Wash- White Baffle, White Flange
1050SQSLWFGCDW 5" Horizontal Frosted Lensed Slope/ Wall Wash- Clear Diffuse, White Flange
1050SQSLWFGCDP 5" Horizontal Frosted Lensed Slope/ Wall Wash- Clear Diffuse, Clear Diffuse Flange
1050SQSLWFGWDW
5" Horizontal Frosted Lensed Slope/ Wall Wash- Warm Diffuse, White Flange
1050SQSLWFGWDP
5" Horizontal Frosted Lensed Slope/ Wall Wash- Warm Diffuse, Warm Diffuse Flange
1050SQSLWFGWC 5" Horizontal Frosted Lensed Slope/ Wall Wash- White Cone, White Flange
†All frames come standard with preset mounting screws and a 2700K lamp. Models are available with preset nails and/or a 3500K lamp (13ES/13CMU = 2700K only).
*Simply add an "N" and/or 35 to the end of the model number for those options. **Simply add an N and/or 35 before the "U" in the model number for those options.
Features
1. U pper Reflector: Formed aluminum. Highly reflective corrosion resistant
anodized finish.
2. L ower Baffle / Cone: Injection molded non-yellowing Polycarbonate plastic
trim. Matte white finish. CD and WD finishes are a painted metallic finish.
3. Lens: 1/8" thick high transmission soda lime glass. Solite texture to hide
visibility to the lamp. Frosted lens (FG version) is a sand blasted version of the
solite lens.
4. Finishes: WB = Matte white baffle CD = Clear Diffuse WD = Warm Diffuse
5. P erformance Data: See attached photometric reports for distribution
and efficiency data. Go to www.lightolier.com for .IES files.
Labels
cULus Listed. Suitable for Wet Locations. I.B.E.W.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • H1009
Lensed Recessed CFL Downlighting
5" Square Horizontal Lensed Slope/Wall Wash, CFL, Reflector Trim
4.21"
(107 mm)
4.70"
(119 mm)
6.00"
(152 mm)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
1050SQSLW
Application 2:
Slope Ceiling Orientation
Works with 14°- 45° (3/12-12/12) Slope
Compatible Xceed Frame-In Kits
(See Individual Frame-In Kit Specification Sheets)
Catalog No. Installation Type
1050SQ13ES †* IC Airseal
1050SQ18ES †* IC Airseal
1050SQ26ES †* IC Airseal
1050DSQ26ES †* IC Airseal
Energy Star
Dimming 120V
1050SQ13CMU †** Non-IC Airseal
120/277v
1050SQ18CMU †**
Non-IC Airseal
120/277v
1050SQ26CMU †** Non-IC Airseal
120/277v
Type:
3.47"
(88 mm)
Frame
Height
Ceiling
Min 3/8" (10 mm)
Max 1 1/2" (38 mm)
Lamping
120v 13w Triple
®
120v 18w Triple
®
120v 26w Triple
®
26w Triple
®
®
13w Triple
®
® 18w Triple
26W Triple
®
