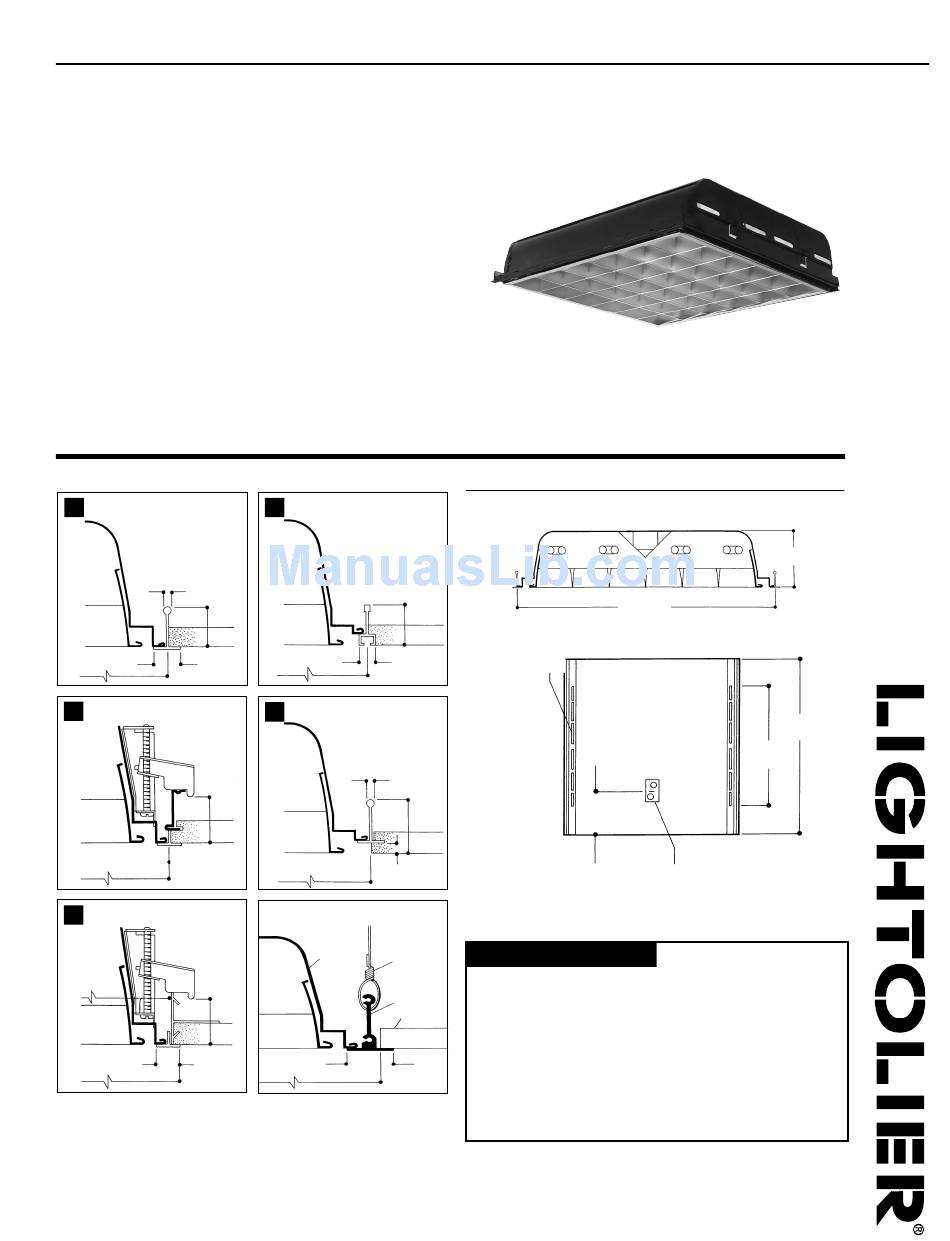

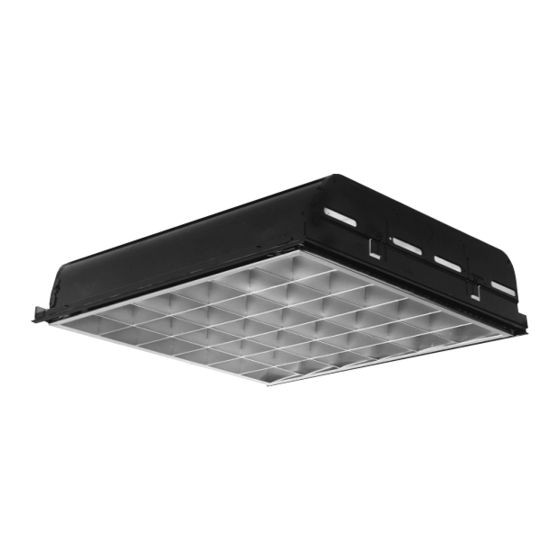

Lightolier MDS2G36PS4FT Specification

MD*4 2'x2' Recessed Fluorescent
Page 1 of 2 Examination Light, 1-1/2" Deep, 36 Cell (6 Rows) Parabolic Louver, Static, 4 Lamp TT5
Features
• 2 units provide 123 footcandles on patients bed when installed over
each end of bed.
• Utilizes 4-40 watt Biax type lamps with excellent color rendition
(82 CRI).
• Efficiency 55.9%.
• Electronic ballast, standard for cool operation, consumes only
132 watts.
• Only 5" deep.
• 3-1/2" x 3-1/2" cell size.
• Low iridescence specular pre-anodized aluminum louver, standard.
• Louver has prismatic virgin acrylic overlay.
• Louver has protective film dust guard.
• Reversible louver hinging.
• Door jamb with integral positive light stop.
• Spring-loaded "roosterhead" latches.
• Integral earthquake clip.
• Metal gauge/construction to meet NYC Code requirements is
available.
Mounting Methods
exposed T-grid ceiling.
G
1/4" max.
1-1/2" max.
15/16"
24"
or 1"
concealed Z-spline ceiling.
F
1-1/8" min.
3-3/4" max.
24"
plaster ceiling/flanged.
F
Plaster Opening
24-1/8"
1-1/8" min.
3-3/4" max.
13/16"
24-11/16"
exposed slot T-grid ceiling.
T
1-7/8" max.
9/16"
24"
direct concealed two directional T-grid
T
ceiling (see options for splay trim).
1/4" max.
1-7/8" max.
3/8"
24"
drywall kit. (See options)
Type "G"
Support
Fixture
(by others)
Drywall Kit
(See Options)
Drywall
(by others)
Ceiling Opening
15/16"
24-5/16" x 24-5/16"
MDS2G36PS4FT
Dimensions
24" (610mm)
Air supply slots
(MPA only)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte Thomas Company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
Copyright 2002 Lightolier
5" (127mm)
23-7/8"
(606mm)
15-11/16"
(398mm)
2"x 2-1/2" access plate
with two K.O.s (7/8" dia.)
Type:
www.lightolier.com
Section 8/Folio R40-30 Rev. A
