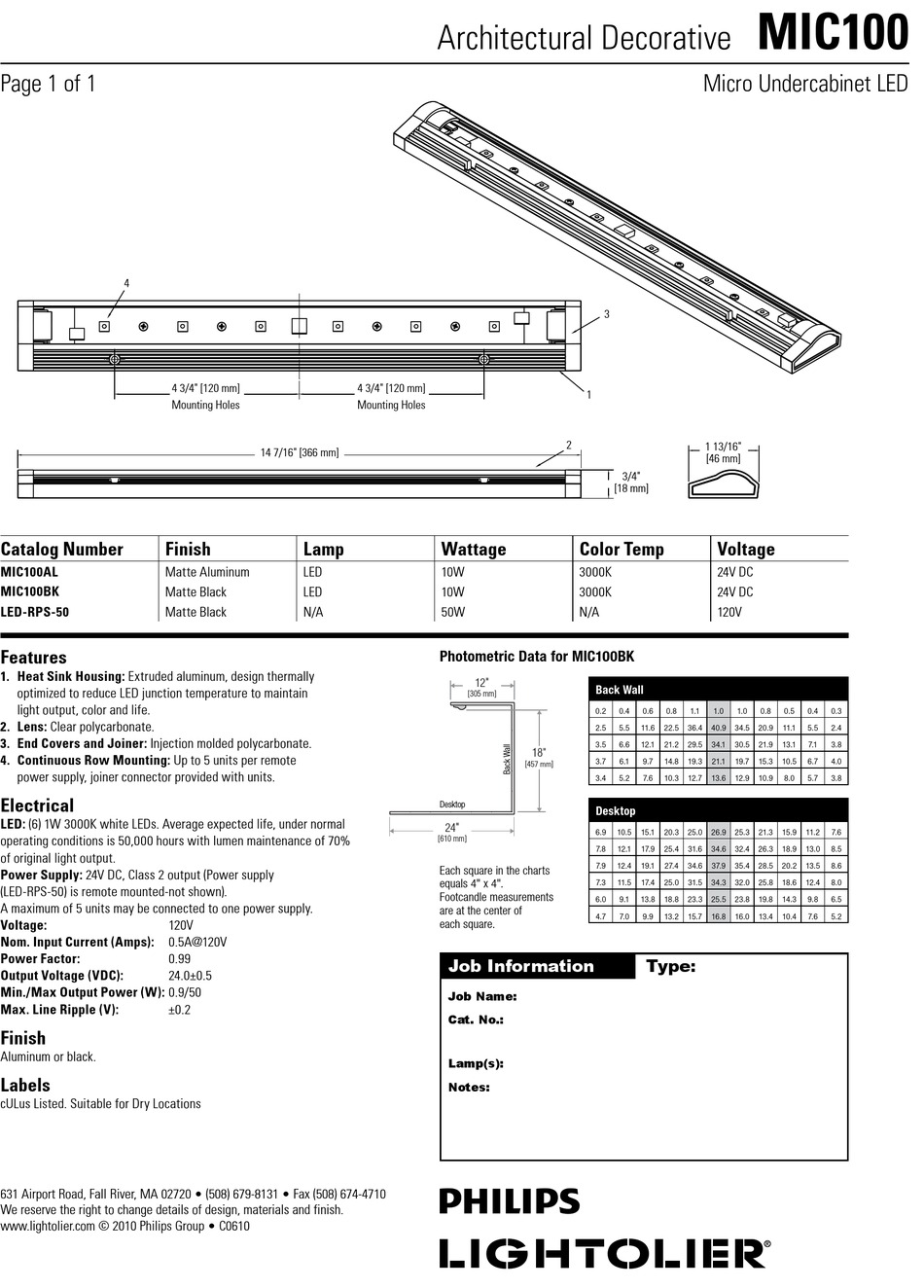

Page 1 of 1
Catalog Number
MIC100AL
MIC100BK
LED-RPS-50
Features
1. Heat Sink Housing: Extruded aluminum, design thermally
12"
optimized to reduce LED junction temperature to maintain
[305 mm]
light output, color and life.
45°
90°
2. Lens: Clear polycarbonate.
3. End Covers and Joiner: Injection molded polycarbonate.
18"
4. Continuous Row Mounting: Up to 5 units per remote
[457 mm]
power supply, joiner connector provided with units.
Electrical
Desktop
Desktop
LED: (6) 1W 3000K white LEDs. Average expected life, under normal
24"
24"
operating conditions is 50,000 hours with lumen maintenance of 70%
[610 mm]
[610 mm]
of original light output.
Power Supply: 24V DC, Class 2 output (Power supply
(LED-RPS-50) is remote mounted-not shown).
A maximum of 5 units may be connected to one power supply.
Voltage:
Nom. Input Current (Amps):
Power Factor:
Output Voltage (VDC):
Min./Max Output Power (W): 0.9/50
Max. Line Ripple (V):
Finish
Aluminum or black.
Labels
cULus Listed. Suitable for Dry Locations
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0610
4
4 3/4" [120 mm]
Mounting Holes
14 7/16" [366 mm]
Finish
Lamp
Matte Aluminum
LED
Matte Black
LED
Matte Black
N/A
12"
12"
[305 mm]
[305 mm]
18"
[457 mm]
Desktop
24"
[610 mm]
120V
0.5A@120V
0.99
24.0±0.5
±0.2
Architectural Decorative
4 3/4" [120 mm]
Mounting Holes
Wattage
10W
10W
50W
Photometric Data for MIC100BK
12"
[305 mm]
18"
18"
[457 mm]
[457 mm]
Desktop
24"
[610 mm]
Each square in the charts
equals 4" x 4".
Footcandle measurements
MIC100
are at the center of
each square.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
MIC100
Micro Undercabinet LED
3
1
2
1 13/16"
[46 mm]
3/4"
[18 mm]
Color Temp
Voltage
3000K
24V DC
3000K
24V DC
N/A
120V
Back Wall
0.2
0.4
0.6
0.8
1.1
1.0
1.0
2.5
5.5
11.6
22.5
36.4
40.9
34.5
3.5
6.6
12.1
21.2
29.5
34.1
30.5
3.7
6.1
9.7
14.8
19.3
21.1
19.7
3.4
5.2
7.6
10.3
12.7
13.6
12.9
Desktop
6.9
10.5
15.1
20.3
25.0
26.9
25.3
7.8
12.1
17.9
25.4
31.6
34.6
32.4
7.9
12.4
19.1
27.4
34.6
37.9
35.4
7.3
11.5
17.4
25.0
31.5
34.3
32.0
6.0
9.1
13.8
18.8
23.3
25.5
23.8
4.7
7.0
9.9
13.2
15.7
16.8
16.0
Type:
0.8
0.5
0.4
0.3
20.9
11.1
5.5
2.4
21.9
13.1
7.1
3.8
15.3
10.5
6.7
4.0
10.9
8.0
5.7
3.8
21.3
15.9
11.2
7.6
26.3
18.9
13.0
8.5
28.5
20.2
13.5
8.6
25.8
18.6
12.4
8.0
19.8
14.3
9.8
6.5
13.4
10.4
7.6
5.2
