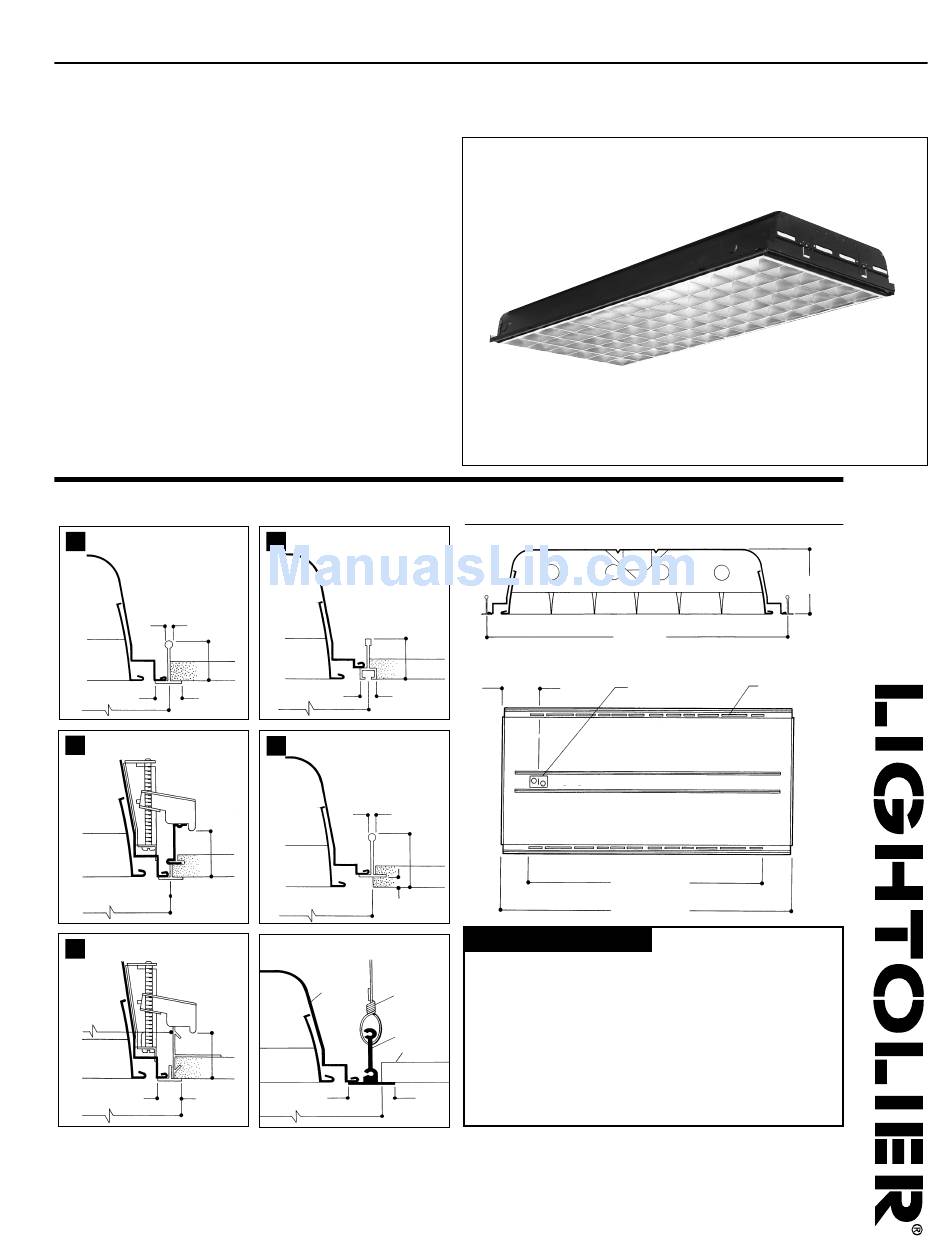

Lightolier MPA2G78LS432 Specifications

Page 1 of 2
FEATURES
• 5" deep body.
• 3 1/2" x 3 1/2" cell size.
• 62.1% efficient.
• Clean contoured interior.
• Eyeleted heat removal vents in fixture ends.
• One-piece housing has ribbed construction for added strength.
• Hemmed over side rails for safe handling.
• Fixture ends turned-in for safe handling.
• Built-in earthquake clips (patent no. 5,072,344).
• Pre-anodized aluminum parabolic louver.
• Vertical grain louver eliminates reflected lamp images on cross baffle.
• Spring-loaded rooster head latches.
• 18 gauge steel hinges.
• Louver frame with integral positive light stop.
• Louver has protective film dust guard.
• Construction to meet Chicago Plenum is available.
MOUNTING METHODS
exposed T-grid ceiling.
G
1/4" max.
1-1/2" max.
15/16"
24"
or 1"
concealed Z-spline ceiling.
F
1-1/8" min.
3-3/4" max.
24"
plaster ceiling/flanged.
F
Plaster Opening
24-1/8"
1-1/8" min.
3-3/4" max.
13/16"
24-11/16"
PARABAFFLE plus
2'x4' RECESSED FLUORESCENT, 1 1/2" DEEP, 78 CELL PARABOLIC LOUVER
exposed slot T-grid ceiling.
T
1-7/8" max.
9/16"
24"
direct concealed two directional
T
T-grid ceiling (see options for
splay trim).
1/4" max.
1-7/8" max.
3/8"
24"
drywall kit. (See options)
Type "G"
Support
Fixture (by others)
Drywall Kit
(See Options)
Drywall
(by others)
Ceiling Opening
15/16"
24-5/16" x 48-5/16"
MPA2G78LS432
STATIC OR AIR SUPPLY/RETURN, 4 LAMP, T8 OR T12
DIMENSIONS
24" (610mm)
2" x 2-1/2" access plate
6" (152mm)
with two K.O.s
(7/8" dia.)
39-1/4" (997mm)
47-31/32" (1218mm)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte Thomas Company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division)
A0902
5" (127mm)
Air supply slots
(MPA only)
Type:
www.lightolier.com
SECTION 2/Folio G20-20
