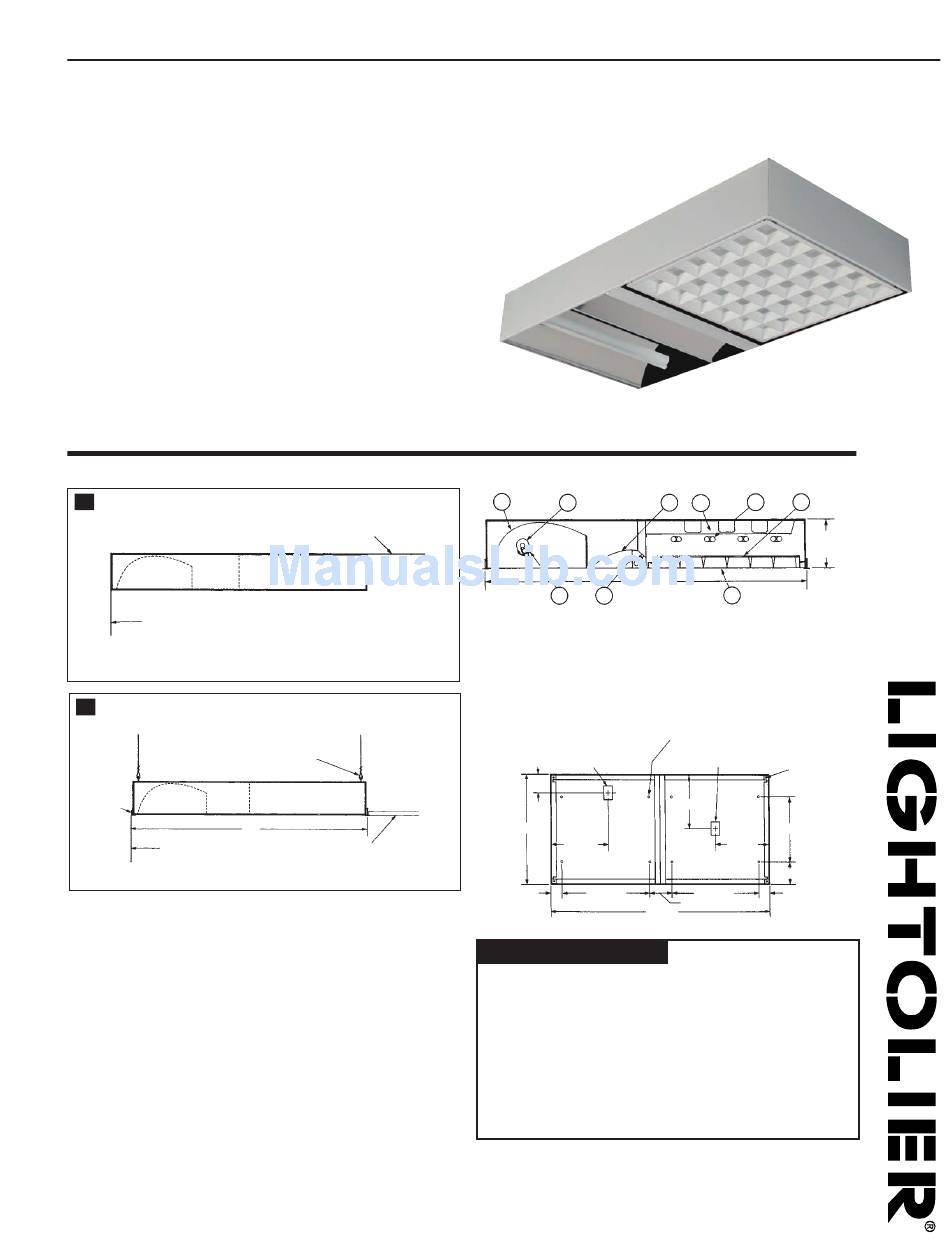

Lightolier MD4GPSVA2SB4SB Specification

MD * 4 2' x 4' Recessed or Surface
Page 1 of 4
Features
• Four lighting functions with intregral ambient, reading, examination
and nurses night light.
• Precise light control for glare free patient environment.
• Installs as a one-piece unit.
• Recessed or surface mounted to ceiling which eliminates damage to
fixture from hospital equipment attached to bed.
• 6-7/8" deep.
• All lamps are enclosed.
• All twin tube T5 lamps are accessible for relamping without tools.
• All ballasts accessible thru louver compartment.
• Optional low voltage electronic sequential switch mounted in fixture
for ambient and reading light controlled with pillow speaker
(optional by others).
• Optional 50 watt or LED night light.
• Meets NYC Code requirements. Chicago Plenum requirements
available.
Mounting Methods
surface
S
Wall
exposed T-grid ceiling
G
Wall Angle
or T-bar
(by others)
48"
Wall
Now available in 3 styles
(Reflectors always semi-specular)
Traditional with specular louver (PS option)
(For multiple patient room)
White louver and horizontal surfaces to blend with ceiling (FF option)
(Reflectors always semi-specular)
All components white (AW option)
(For single patient room)
6/07
Ceiling
Secure fixture
(4 places)
Acoustical Tile
(by others)
MD4GPSVA2SB4SB
Style 1 shown
Dimensions
1
6
48" (1219mm)
6
2
1. Reading light with low iridescence anodized semi-specular aluminum reflector.
2. Extruded aluminum lamp baffle.
3. Ambient light with low iridescence anodized secular aluminum reflector.
4. Examination light with specular 36 cell aluminum louver with virgin acrylic overlay (illustrated).
5. Twin tube T5 lamps (6).
6. Clear acrylic lens.
7. Prismatic virgin acrylic overlay.
8. Ballast compartment accessible by opening louver and reflector.
2" x 3" access plate with (2) 7/8"
dia. K.O.s (Ambient/Reading)
4"
23-3/4"
12-3/4"
19-11/16"
2-1/32"
47-3/4"
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 a Genlyte company
Multi-Function Patient Lighting
8
3 5 7
6-7/8"
(175mm)
4
Mounting holes (8)
2" x 3" access plate with (2) 7/8"
dia. K.O.s (Examination)
Tabs for wire
supports
(4 places)
11-7/8"
14"
11-7/8"
4-7/8"
19-11/16" 2-1/32"
4-5/16"
