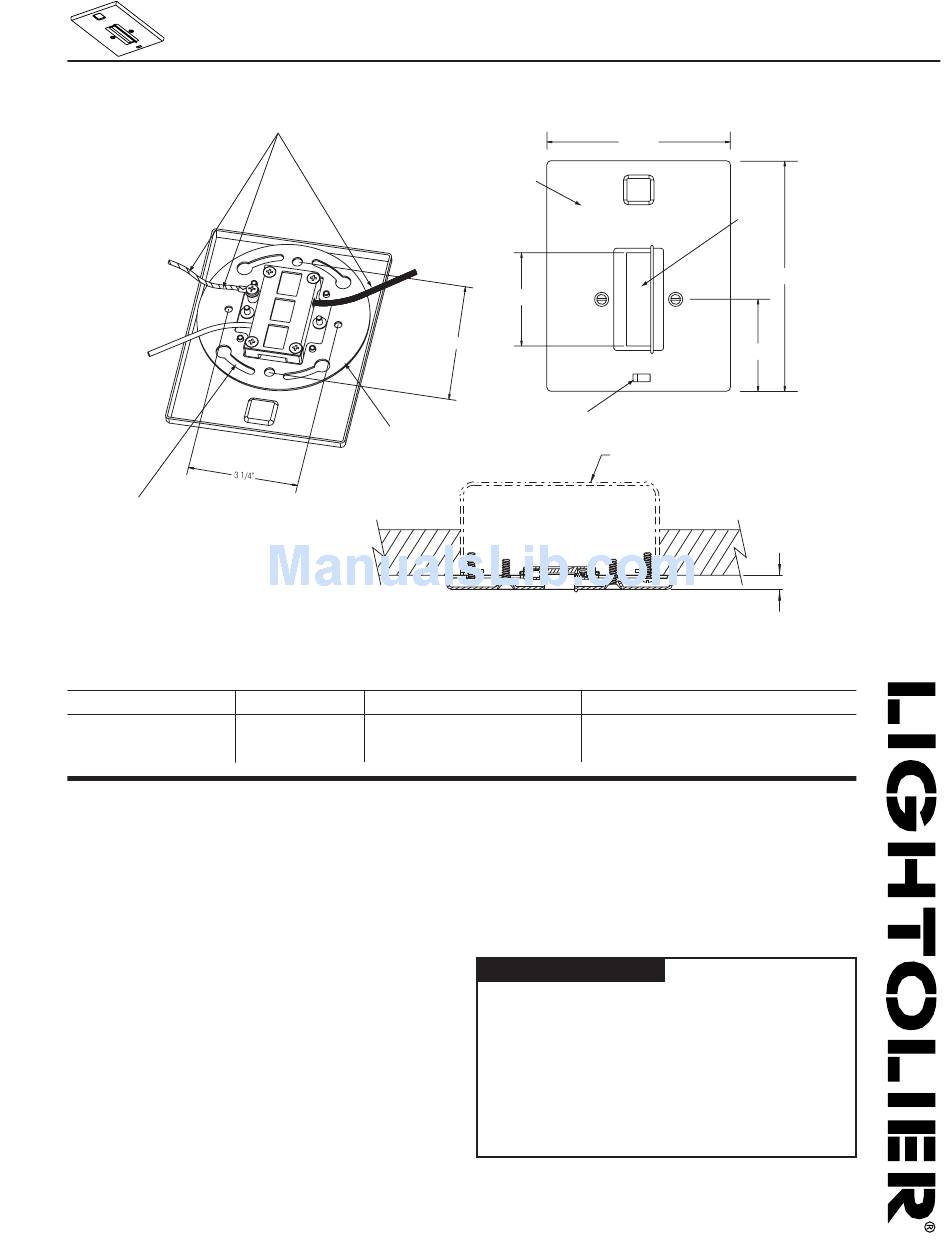

Lightolier Lytespan 6170 Specification

Page 1 of 1
3 1/2" Dia. J-Box Mounting Slots
Ordering Information
Catalog No. Finish
6170WH Matte White
6170BK Matte Black
6170AL Matte Aluminum
Features
1. Basic Lytespan Track Strip: Die-cast with high-temperature impact-resis-
tant thermoplastic insulator, supporting electrical contacts. Accepts Lytespan
luminaires for individual applications.
2. Junction Box Canopy: Steel low-profile canopy, attached with two painted
slotted cap screws (provided).
3. Crossbar: 0.074 steel, permanently fixed to track. Provides secure mounting
of monopoint to electrical junction box.
4. Supply Leads: 16ga. White and Black, Green; insulated stranded wire.
5. Locking Slot: Accepts locking tab of some Lytespan Track luminaires.
Finish
All Painted finishes are baked enamel.
Electrical
Capacity is 120volts, 60Hz, 660W max. All Lytespan Track luminaires are polar-
ized and continuously grounded throughout. Electrical conductors are concealed
in an insulating liner. Intended for wiring to branch circuit building wire with
ground. All wiring must be in accordance with National and Local Codes.
Use 90°C minimum supply wire to monopoint.
4
3 1/4"
3
ceiling
or wall
Junction Box Mounting
4" & 3 1/2" Octagonal, 4" & 3 1/2" Round
Lytespan ® Track Lighting System
4 1/2"
2
2 5/16"
5
Junction Box
(by others)
Compatibility
Lytespan Track Luminaires. See individual
spec sheets for compatibility with Monopoints
Labels
U.L. listed, cULus
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • A1005
Lytespan ® Rectangular Monopoint
1
5 5/8"
2 1/4"
ceiling
or wall
1/4"
Type:
www.lightolier.com
6170
