Lightolier 4F35 Specification

Page 1 of 2

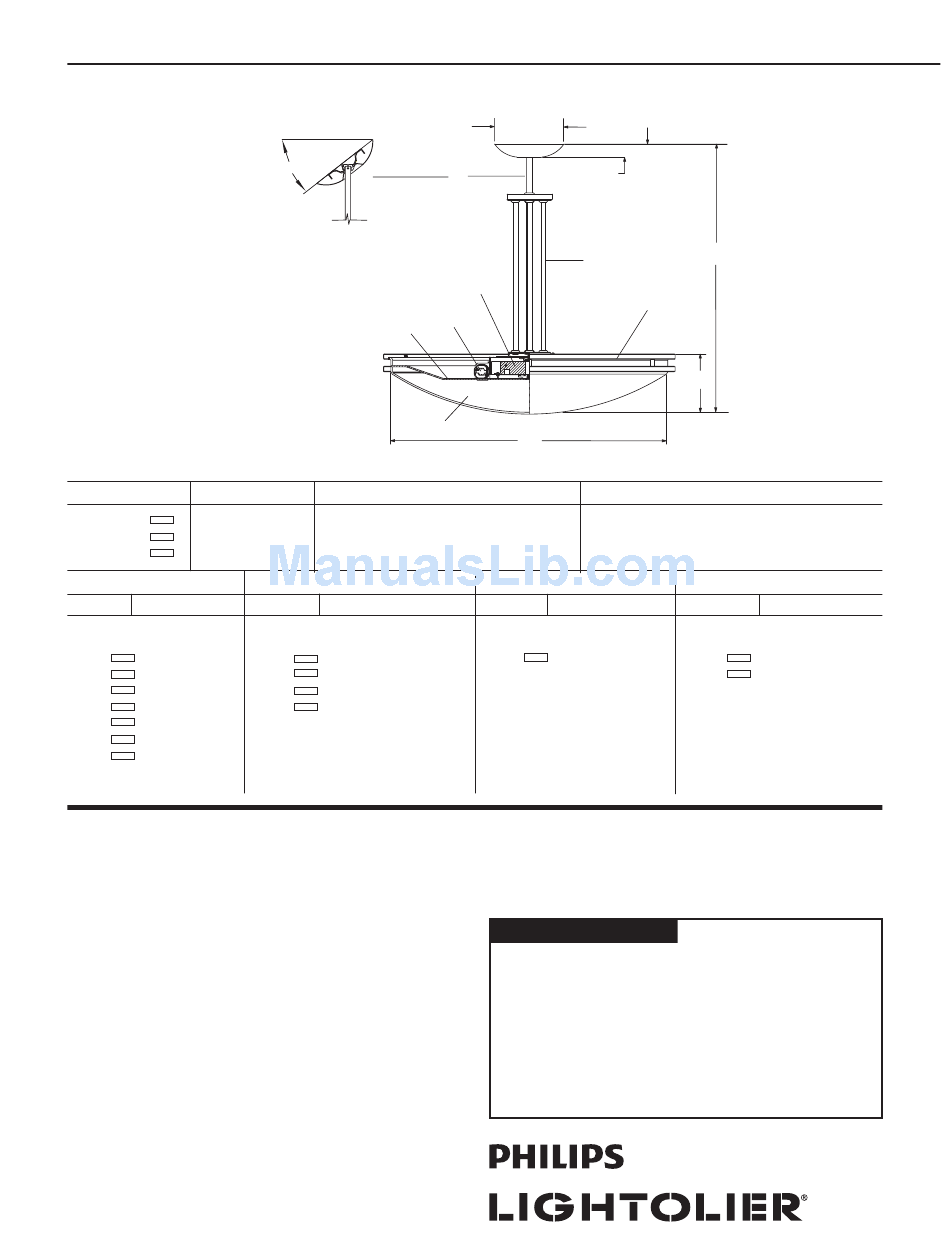

Note: Drawing above illustrates only one of the suspen-
sion types available for this Luminaire. For other draw-
ings, consult individual Suspension Specification Sheet
numbers as noted in Suspension chart(s) below.
Complete Luminaire consists of Body and Suspension: Order each separately.
Body Cat. No. Finish
4F35642APBU Polished Brass
4F35642ASNU Satin Nickel
4F35642AWHU White
Single Swivel Stem
Cat. No. Nominal OAL
Specify Finish as Suffix:
PB, SN or WH
4SB115 16 9/16"
4SB118 18" (close-to-ceiling) 4SB228
4SB121 19 5/16"
4SB124 25 9/16"
4SB128 29 3/8"
4SB135
35"
4SB142 40 5/16"
See Specification
Sheet(s) 4SB115, 4SB124

Specifications

• Suspension Size: For optimum performance testing recommends OAL
(overall length) in proportion to the Body diameter or for close-to-ceiling
proportion length (see shaded cells). OAL is defined from bottom of diffuser
to ceiling plane.
• Stem Wires: Equipped with 120" of leads with keyed connections for quick
connection to Body wiring.
Options & Accessories
MX1 = Dimming Electronic Ballast, 26 Watt, 120V, only
Replace Body Cat No. Suffix "U" with Suffix "MX1".
E3 = 347V (Canada)
Replace Body Suffix "U" with Suffix "E3".
EM = Emergency Battery Pack
Add Suffix "EM" to Body Cat. No.
Multi-Level Switching: Prewired, consult wiring diagram.
Fusing: Consult Factory
Finishes: PB = Polished Brass, SN = Satin Nickel, WH = White
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • D0609
45ϒ
Max.
2
Lamps
6-26 Triple Tube Compact Fluorescent
or 6-32 Triple Tube Compact Fluorescent
or 6-42 Triple Tube Compact Fluorescent
Multiple to Short Swivel Stem 3 Cables to Short Swivel
Cat. No. Nominal OAL
Specify Finish as Suffix:
PB, SN or WH
4SB224 25 9/16"
29 3/8"
4SB235 35"
4SB242 40 5/16"
See Specification sheet 4SB324
Architectural Decorative
Pendalux Gemini 35" Diameter Body 6-26/32/42 Triple Tube
7"
4 1 3/8"
5
3
6
1
35"
Options
MX1 (26W, 120V only),
E3 (347V)
Add Suffix to Cat. No.
Cat. No. Nominal OAL
Specify Finish as Suffix:
PB, SN or WH
4SB335 35"
See Specification Sheet 4SB324
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Nominal OAL
7
7 11/16"
Suspension Ext. Kits
Cat. No. Nominal OAL
Specify Finish as Suffix:
PB, SN or WH
4SXT48 48"
4SXT96 96"
Type:
4F35
