Lightolier 4F42 Specification

Page 1 of 2

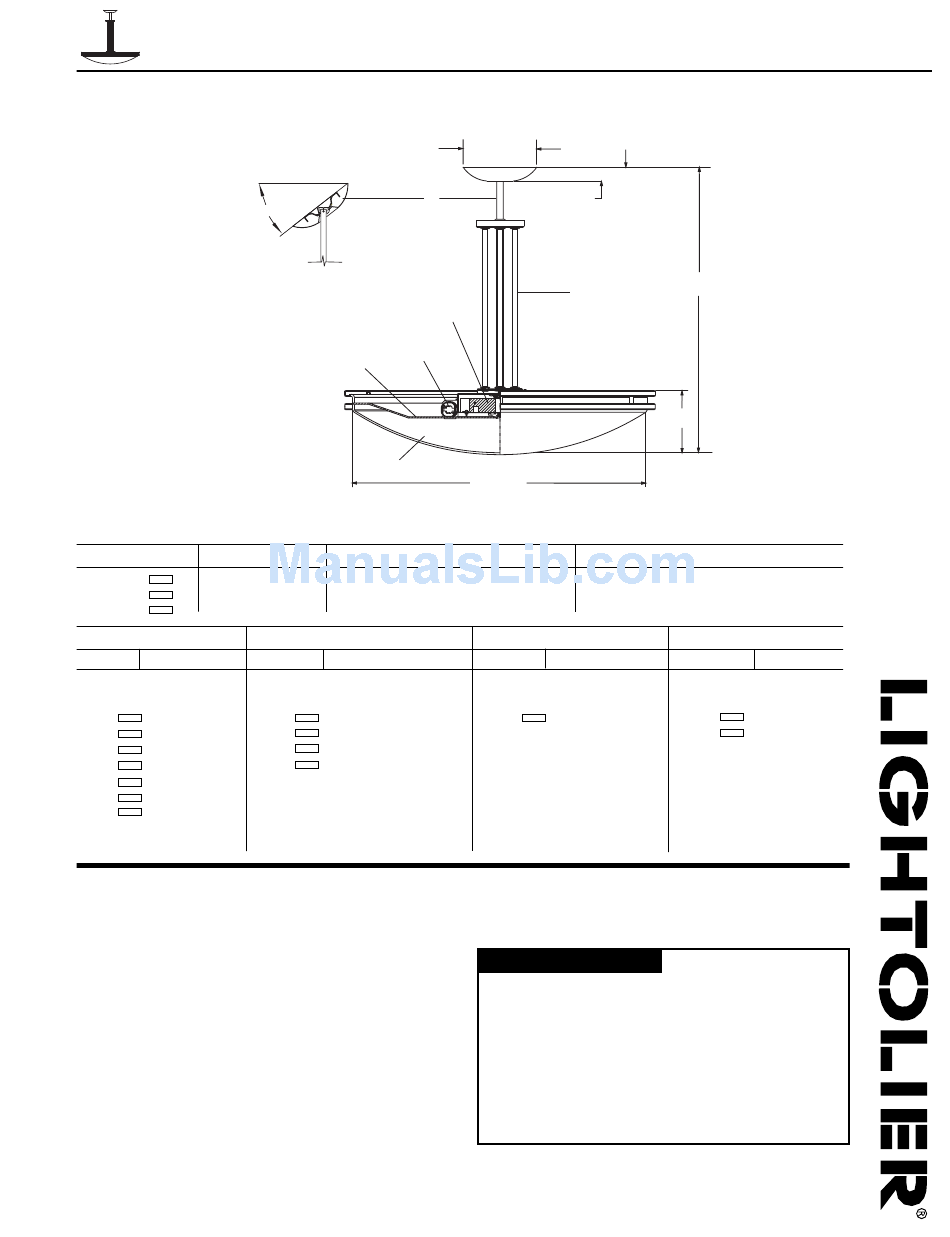

Note: Drawing above illustrates only one of the
suspension types available for this Luminaire. For
other drawings, consult individual Suspension
Specification Sheet numbers as noted in
Suspension chart(s) below.
Complete Luminaire consists of Body and Suspension: Order each separately.
Body Cat. No. Finish
4F42842APBU Polished Brass
4F42842ASNU Satin Nickel
4F42842AWH White
Single Swivel Stem Multiple to Short Swivel Stem 3 Cables to Short Swivel
Cat. No. Nominal OAL Cat. No.
Specify Finish as Suffix: Specify Finish as Suffix:
PB, SN or WH PB, SN or WH
4SB115 18 1/4" 4SB224
4SB118 19 11/16" 4SB228
4SB121 21" (close-to-ceiling) 4SB235
4SB124 27 1/4" 4SB242
4SB128 31 1/16" See Specification sheet 4SB324
4SB135 36 11/16"
4SB142 42"
See Specification
Sheet(s) 4SB115, 4SB124

Specifications

• Suspension Size: For optimum performance testing recommends OAL (over-
all length) in proportion to the Body diameter or for close-to-ceiling propor-
tion length (see shaded cells). OAL is defined from bottom of diffuser to ceil-
ing plane.
• Stem Wires: Equipped with 120" of leads with keyed connections for quick
connection to Body wiring.
Options & Accessories
D2 = Dimming Electronic Ballast, 26 Watt, 120V, only
Replace Body Cat No. Suffix "U" with Suffix "D2".
E3 = 347V (Canada)
Replace Body Suffix "U" with Suffix "E3".
EM = Emergency Battery Pack
Add Suffix "EM" to Body Cat. No.
Multi-Level Switching: Prewired, consult wiring diagram.
Fusing: Consult Factory
Finishes: PB = Polished Brass, SN = Satin Nickel, WH = White
4
45°
Max.
3
6
2
1
Lamps
8-26 Triple Tube Compact Fluorescent
or 8-32 Triple Tube Compact Fluorescent
or 8-42 Triple Tube Compact Fluorescent
Nominal OAL
27 1/4"
31 1/16"
36 11/16"
42"
Architectural Decorative
Pendalux Gemini 42" Diameter Body 8-26/32/42 Triple Tube
7"
1 3/8"
5
42"
Options
D2 (26W, 120V only),
E3 (347V)
Add Suffix to Cat. No.
Cat. No. Nominal OAL
Specify Finish as Suffix:
PB, SN or WH
4SB342 42"
See Specification Sheet 4SB324
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • C0605
Nominal OAL
9 3/8"
Suspension Ext. Kits
Cat. No. Nominal OAL
Specify Finish as Suffix:
PB, SN or WH
4SXT48 48"
4SXT96 96"
Type:
www.lightolier.com
4F42
