Lightolier 4R28 Specification

Page 1 of 2
45ϒ Max.

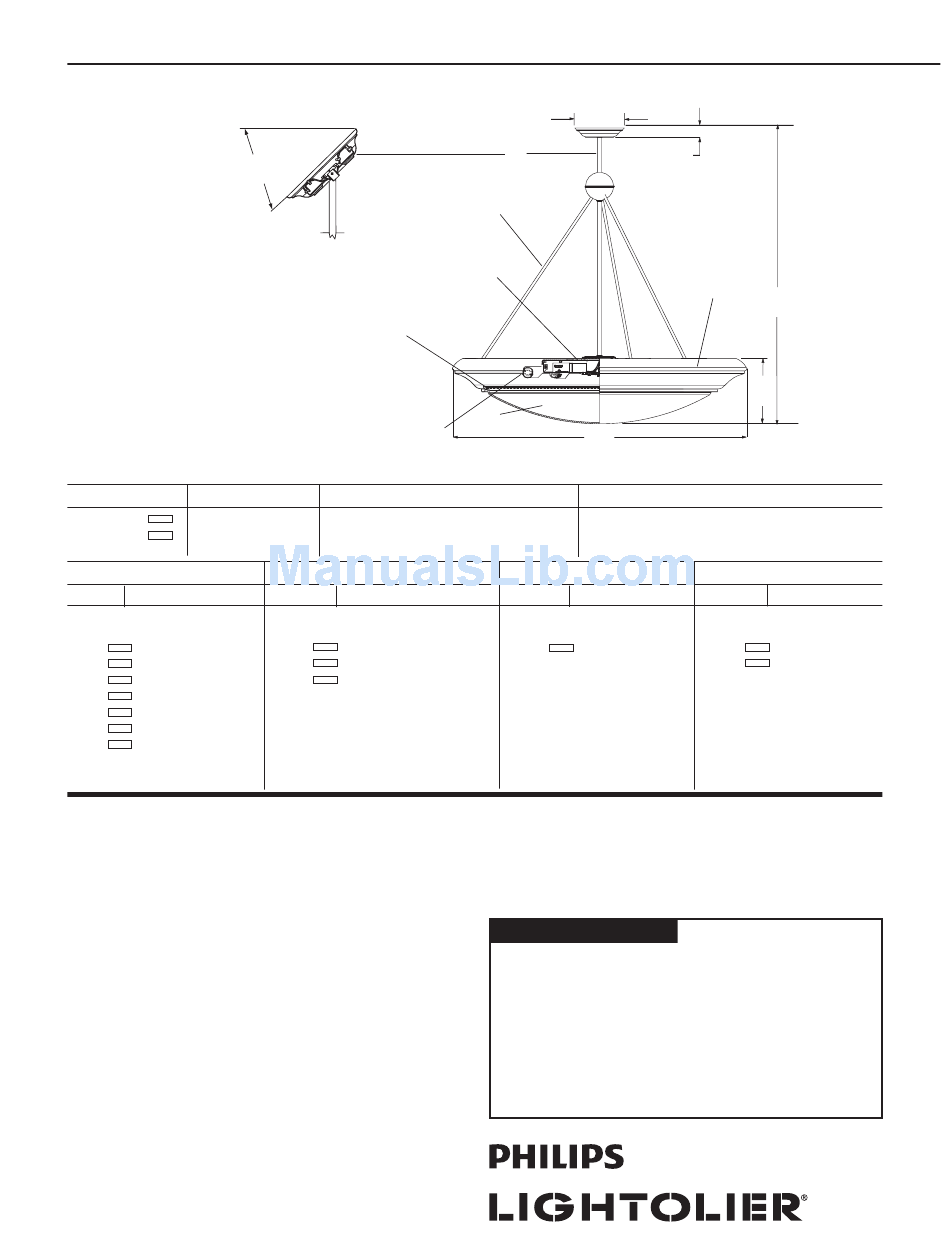

Note: Drawing illustrates only one of the suspension
types available for this luminaire. For other drawings,
consult individual Suspension Specification Sheet
numbers as noted in Suspension chart(s) below.
Complete Luminaire Consists of Body and Suspension: Order Each Separately.
Catalog No. Finish
4R28442APBU Polished Brass
4R28442ASBU Satin Brass
Single Swivel Stem
Cat. No. Nominal OAL
Specify Finish as Suffix:
PB or SB
4SB115 15 3/16" (close-to-ceiling) 4ST228
4SB118 16 5/8"
4SB121 17 15/16"
4SB124
24 3/16"
4SB128 28"
4SB135 33 5/8"
4SB142 38 15/16"
See Specification
Sheet(s) 4SB115, 4SB124

Specifications

• Suspension Size: For optimum performance testing recommends OAL
(overall length) in proportion to the Body diameter or for close-to-ceiling
proportion length (see 4SB115, 4SB128, 4ST228, 4ST428). OAL is defined from
bottom of diffuser to ceiling plane.
• Stem Wires: Equipped with 120" of leads with keyed connectors
for quick connection to Body wiring.
Options & Accessories
MX1 = Dimming Electronic Ballast, 26 Watt, 120V, only.
Replace Body Cat No. Suffix "U" with Suffix "MX1".
E3 = 347V (Canada)
Replace Body Suffix "U" with Suffix "E3".
EM = Emergency Battery Pack
Add Suffix "EM" to Body Cat. No.
Multi-Level Switching: Prewired, consult wiring diagram.
Fusing: Consult Factory
Finishes: PB = Polished Brass, SB = Satin Brass
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • D0609
Pendalux Traditional 28" Diameter Body 4-26/32/42 Triple Tube
2
6
Lamps
4-26 Triple Tube Compact Fluorescent
or 4-32 Triple Tube Compact Fluorescent
or 4-42 Triple Tube Compact Fluorescent
Multiple to Short Swivel Stem
Cat. No. Nominal OAL
Specify Finish as Suffix:
PB or SB
28"
4ST235 33 5/8"
4ST242 38 15/16"
See Specification sheet 4ST228
Architectural Decorative
7"
4
1 3/8"
5
3
1
28"
Options
MX1 (26W, 120V only),
E3 (347V), or EM
Add Suffix to Cat.No.
3 Rods to Short Swivel
Cat. No. Nominal OAL
Specify Finish as Suffix:
PB or SB
4ST428 28"
See Specification Sheet 4ST324
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
4R28
7
Nominal OAL
6 5/16"
Suspension Ext. Kits
Cat. No. Nominal OAL
Specify Finish as Suffix:
PB or SB
4SXT48 48"
4SXT96 96"
Type:
