Lightolier 4R35 Specification

Page 1 of 2
45°
Max.

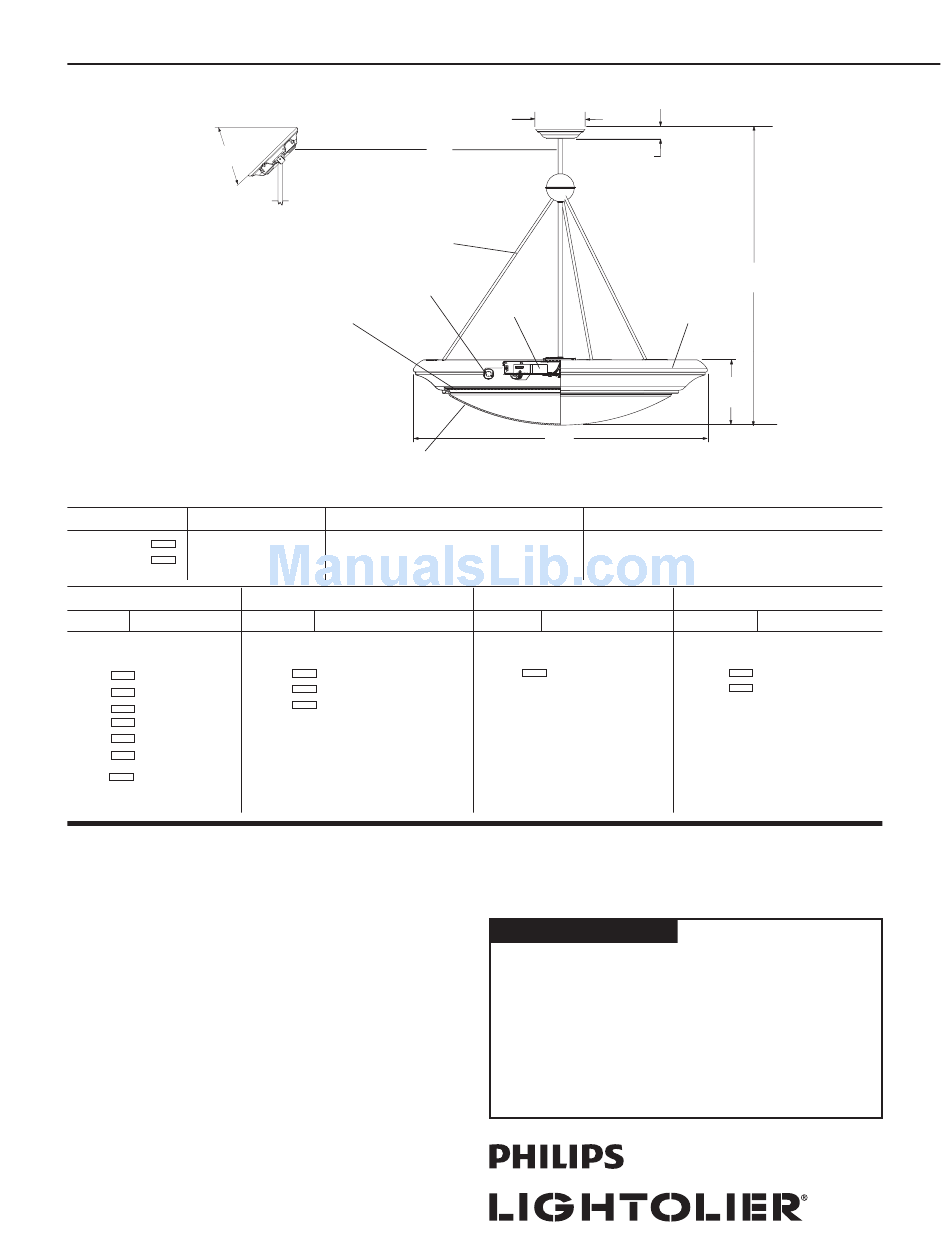

Note: Drawing illustrates only one of the suspension types
available for this luminaire. For other drawings, consult indi-
vidual Suspension Specification Sheet numbers as noted in
Suspension chart(s) below.
Complete Luminaire Consists of Body and Suspension: Order Each Separately.
Body Cat. No. Finish
4R35642APBU Polished Brass
4R35642ASBU
Satin Brass
Single Swivel Stem
Cat. No. Nominal OAL
Specify Finish as Suffix:
PB or SB
4SB115 16 9/16"
4SB118 18" (close-to-ceiling) 4ST235
4SB121 19 5/16"
4SB124 25 9/16"
4SB128
29 3/8"
4SB135 35"
4SB142 40 5/16"
See Specification
Sheet(s) 4SB115, 4SB124

Specifications

• Suspension Size: For optimum performance testing recommends OAL
(overall length) in proportion to the Body diameter or for close-to-ceiling
proportion length (see shaded cells). OAL is defined from bottom of diffuser
to ceiling plane.
• Stem Wires: Equipped with 120" of leads with keyed connectors for quick
connection to Body wiring.
Options & Accessories
MX1 = Dimming Electronic Ballast, 26 Watt, 120V, only.
Replace Body Cat No. Suffix "U" with Suffix "MX1".
E3 = 347V (Canada)
Replace Body Suffix "U" with Suffix "E3".
EM = Emergency Battery Pack
Add Suffix "EM" to Body Cat. No.
Multi-Level Switching: Prewired, consult wiring diagram.
Fusing: Consult Factory.
Finishes: PB = Polished Brass, SB = Satin Brass
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • C0609
6
2
1
Lamps
6-26 Triple Tube Compact Fluorescent
or 6-32 Triple Tube Compact Fluorescent
or 6-42 Triple Tube Compact Fluorescent
Multiple to Short Swivel Stem 3 Rods to Short Swivel
Cat. No. Nominal OAL
Specify Finish as Suffix:
PB or SB
4ST228 29 3/8"
33"
4ST242 40 5/16"
See Specification sheet 4ST228
Architectural Decorative
Pendalux Traditional 35" Diameter Body 6-26/32/42 Triple Tube
7"
4
5
3
35"
Options
MX1 (26W, 120V only),
E3 (347V), or EM
Add Suffix to Cat. No.
Cat. No. Nominal OAL
Specify Finish as Suffix:
PB or SB
4ST435 35"
See Specification Sheet 4ST428
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
3/8"
Nominal OAL
7
7 11/16"
Suspension Ext. Kits
Cat. No. Nominal OAL
Specify Finish as Suffix:
PB or SB
4SXT48 48"
4SXT96 96"
Type:
