Lightolier 4K35 Specification

Page 1 of 2

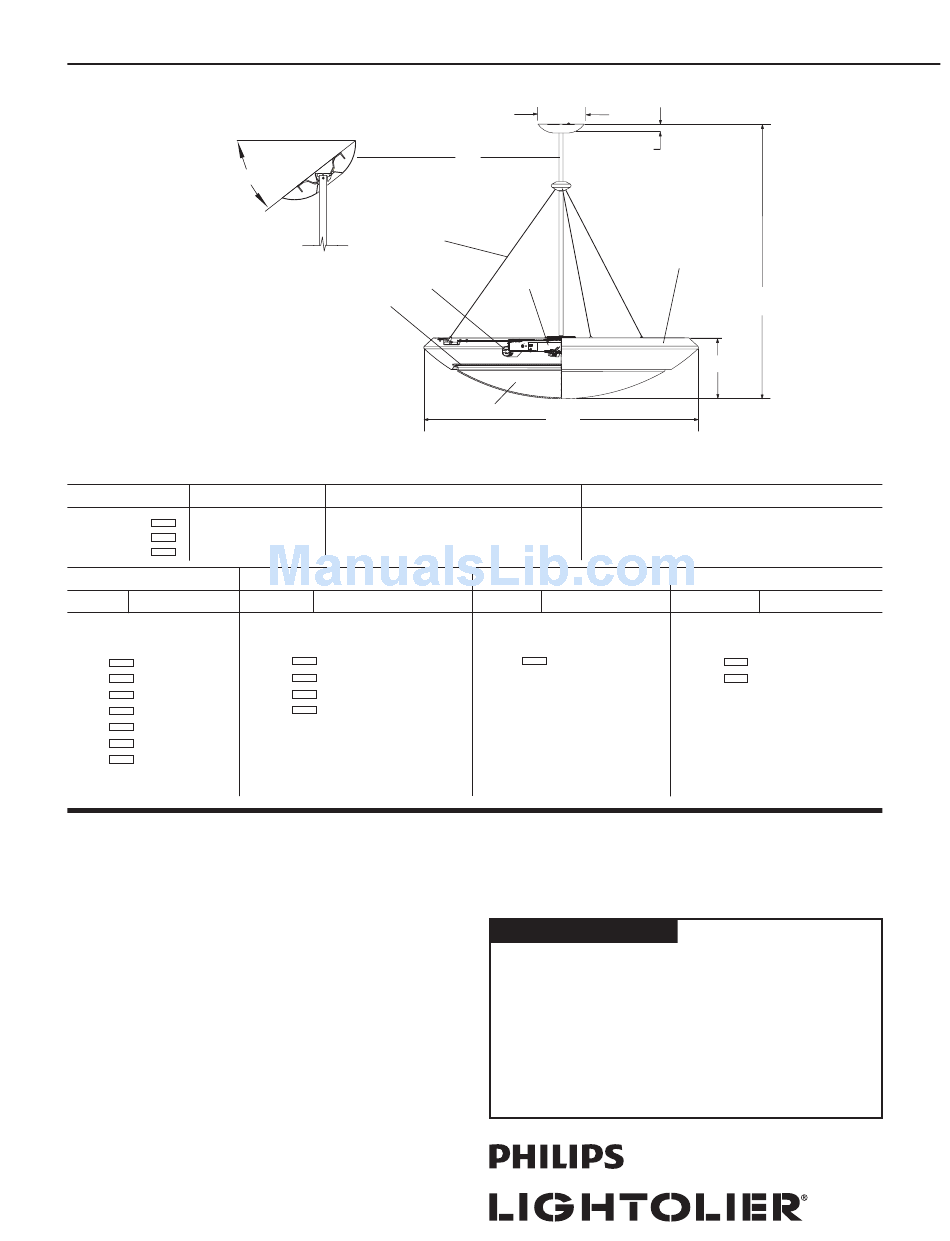

Note: Drawing illustrates only one of the suspension
types available for this luminaire. For other drawings,
consult individual Suspension Specification Sheet
numbers as noted in Suspension chart(s) below.
Complete Luminaire Consists of Body and Suspension: Order Each Separately.
Body Cat. No. Finish
4K35642ASBU Satin Brass
4K35642ASNU Satin Nickel
4K35642AWHU White
Single Swivel Stem
Cat. No. Nominal OAL
Specify Finish as Suffix:
SB, SN or WH
4SB115
16 9/16"
4SB118 18"(close-to-ceiling)
4SB121 19 5/16"
4SB124 25 9/16"
4SB128 29 3/8"
4SB135 35"
4SB142
40 5/16"
See Specification
Sheet(s) 4SB115, 4SB124

Specifications

• Suspension Size: For optimum performance testing recommends OAL
(overall length) in proportion to the Body diameter or for close-to-ceiling
proportion length (see shaded cells).OAL is defined from bottom of diffuser to
ceiling plane.
• Stem Wires: Equipped with 120" of leads with keyed connectors for quick
connection to Body wiring.
Options & Accessories
MX1 = Dimming Electronic Ballast, 26 Watt, 120V, only.
Replace Body Cat No. Suffix "U" with Suffix "MX1".
E3 = 347V (Canada)
Replace Body Suffix "U" with Suffix "E3".
EM = Emergency Battery Pack
Add Suffix "EM" to Body Cat. No.
Multi-Level Switching: Prewired, consult wiring diagram.
Fusing: Consult Factory
Finishes: SB = Satin Brass, SN = Satin Nickel, WH = White
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • E0609
Pendalux Contemporary 35" Diameter Body 6-26/32/42 Triple Tube
45°
Max.
6
2
Lamps
6-26 Triple Tube Compact Fluorescent
or 6-32 Triple Tube Compact Fluorescent
or 6-42 Triple Tube Compact Fluorescent
Multiple to Short Swivel Stem 3 Cables to Short Swivel
Cat. No. Nominal OAL
Specify Finish as Suffix:
SB, SN or WH
4SB224
25 9/16"
4SB228 29 3/8"
4SB235 35"
4SB242 40 5/16"
See Specification sheet 4SB224
Architectural Decorative
7"
4
5
3
1
35"
Options
MX1 (26W, 120V only),
E3 (347V), or EM
Add Suffix to Cat. No.
Cat. No. Nominal OAL
Specify Finish as Suffix:
SB, SN or WH
4SB335
35"
See Specification Sheet 4SB324
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
1 3/8"
7
Nominal OAL
7 11/16"
Suspension Ext. Kits
Cat. No. Nominal OAL
Specify Finish as Suffix:
SB, SN or WH
4SXT48
48"
4SXT96 96"
Type:
4K35
