Lightolier 4K28 Specification

Page 1 of 2

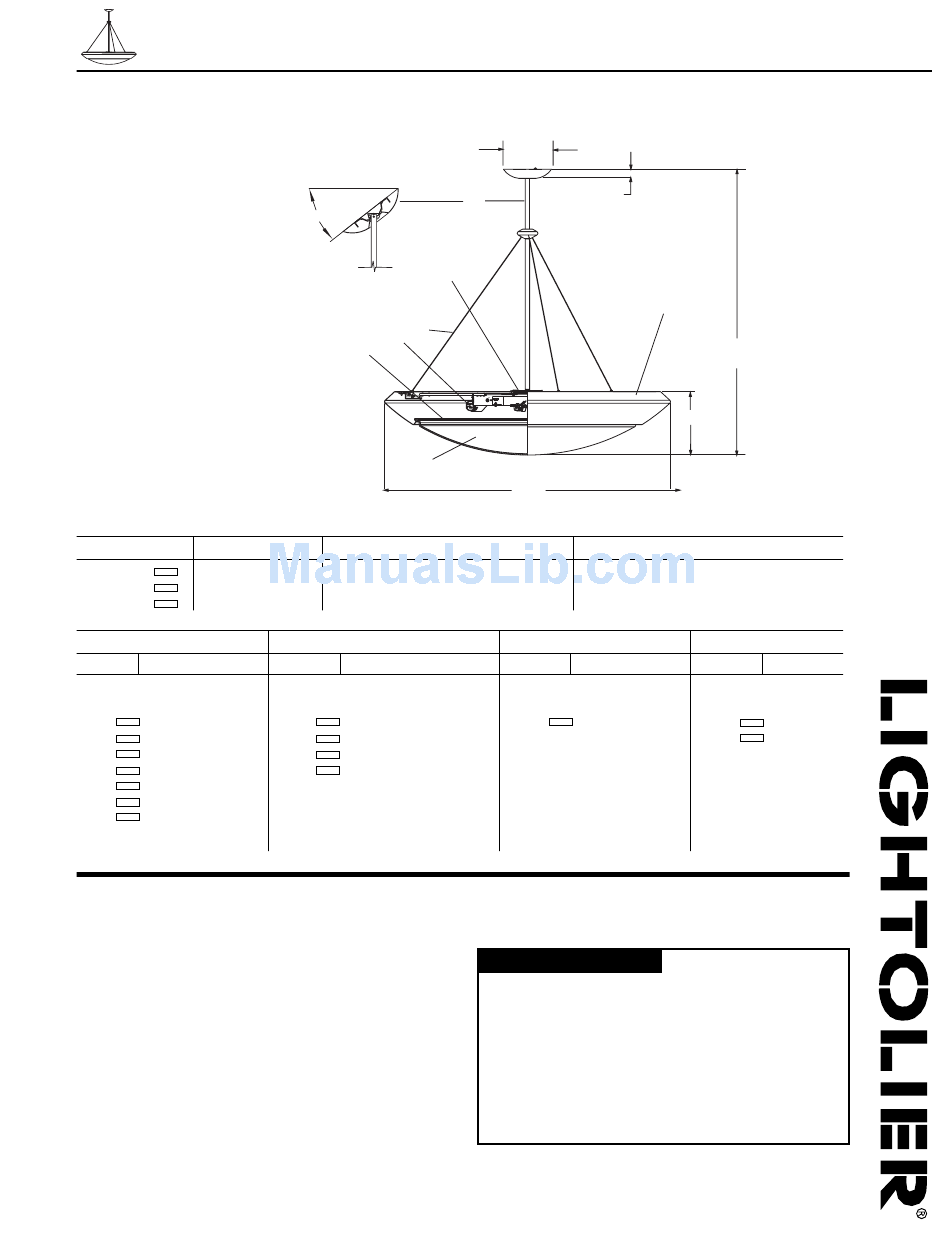

Note: Drawing above illustrates only one of the suspen-
sion types available for this Luminaire. For other drawings,
consult individual Suspension Specification Sheet num-
bers as noted in Suspension chart(s) below.
Complete Luminaire consists of Body and Suspension: Order each separately.
Body Cat. No. Finish
4K28442ASBU Satin Brass
4K28442ASNU Satin Nickel
4K28442AWHU White
Single Swivel Stem
Cat. No. Nominal OAL
Specify Finish as Suffix:
SB, SN or WH
4SB115 15 3/16" (close-to-ceiling)
4SB118 16 5/8"
4SB121 17 15/16"
4SB124 24 3/16"
4SB128 28"
4SB135 33 5/8"
4SB142 38 15/16"
See Specification
Sheet(s) 4SB115, 4SB124

Specifications

• Suspension Size: For optimum performance testing recommends OAL (over-
all length) in proportion to the Body diameter or for close-to-ceiling propor-
tion length. OAL is defined from bottom of diffuser to ceiling plane.
• Stem Wires: Equipped with 120" of leads with keyed connections for quick
connection to Body wiring.
Options & Accessories
D2 = Dimming Electronic Ballast, 26 Watt, 120V, only
Replace Body Cat No. Suffix "U" with Suffix "D2".
E3 = 347V (Canada)
Replace Body Suffix "U" with Suffix "E3".
EM = Emergency Battery Pack
Add Suffix "EM" to Body Cat. No.
Multi-Level Switching: Prewired, consult wiring diagram.
Fusing: Consult Factory
Finishes: SB = Satin Brass, SN = Satin Nickel, WH = White
Pendalux Contemporary 28" Diameter Body 4-26/32/42 Triple Tube
45°
Max.
3
5
6
2
1
Lamps
4-26 Triple Tube Compact Fluorescent
or 4-32 Triple Tube Compact Fluorescent
or 4-42 Triple Tube Compact Fluorescent
Multiple to Short Swivel Stem
Cat. No. Nominal OAL
Specify Finish as Suffix:
SB, SN or WH
4SB224 24 3/16"
4SB228 28"
4SB235 33 5/8"
4SB242 38 15/16"
See Specification sheet 4SB224
Architectural Decorative
7"
1 3/8"
4
28"
Options
D2 (26W, 120V only),
E3 (347V), or EM
Add Suffix to Cat. No.
3 Cables to Short Swivel Suspension Ext. Kits
Cat. No. Nominal OAL
Specify Finish as Suffix:
SB, SN or WH
4SB328 28"
See Specification Sheet 4SB324
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • C0605
