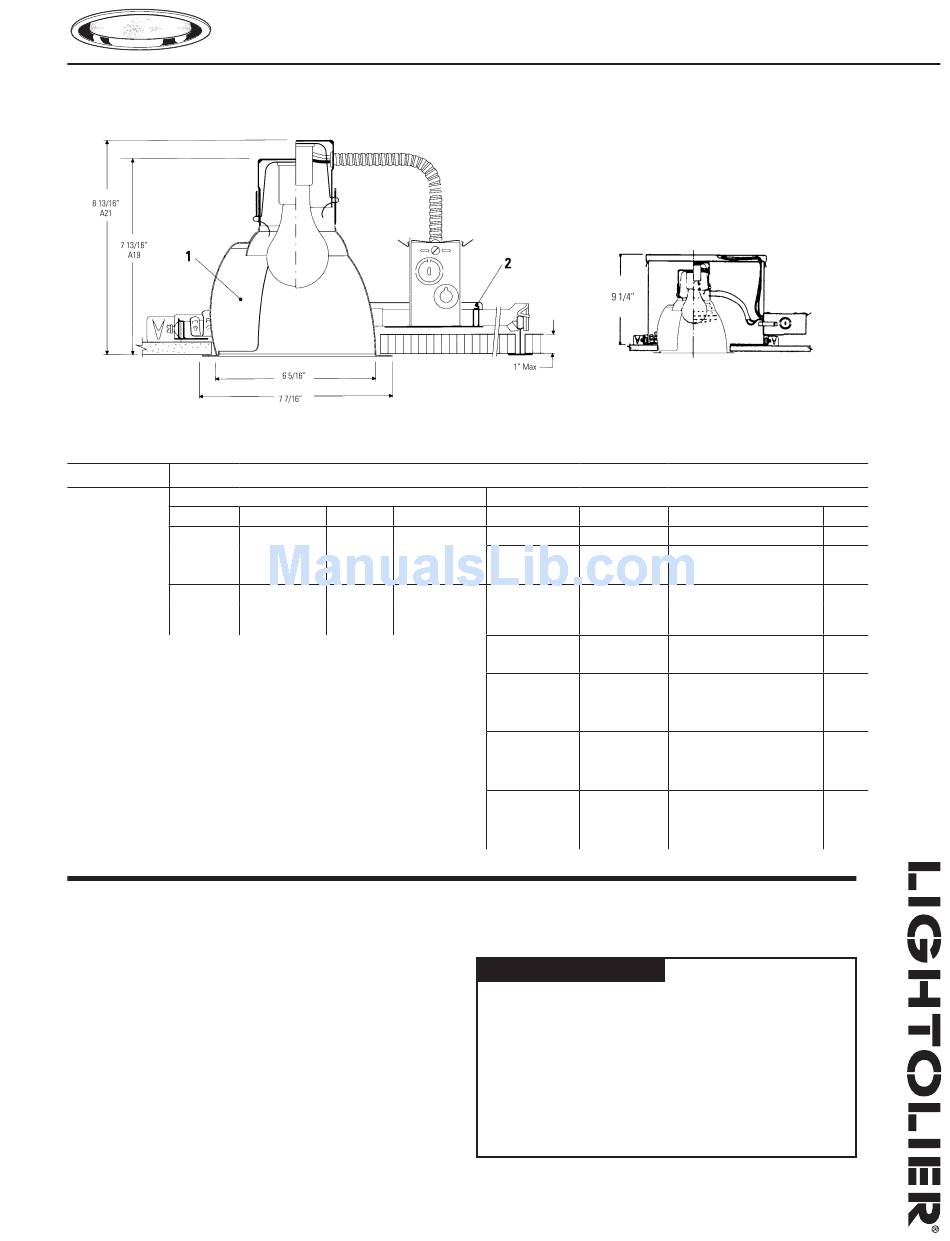

Lightolier Lytecaster 1195 Specification

Page 1 of 2
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets
Frame-In Kit Installation Type Lamping
1195*
1102P1 Non-IC
Specular Gold
1196
Specular Clear
1196CD
1100DAICM Deep AirSeal
Clear Diffuse
Features
1. Deep Reflector: Hydroformed aluminum, .040 thick (18 ga.); specular clear,
gold, or clear diffuse finish; matte white trim, self flanged. Depth provides
38˚ shielding angle.
2. Frame-In Kit: (1102P1 standard frame shown). Other frames listed above and
shown on the right. See Frame-In Kit specification sheets for more details.
Options & Accessories
Extra Wide Flange Trim Ring: 1954 - 8 5/8" O. D.
Plaster Ceiling Ring: 1960 - 7/8" depth for wet plaster ceilings
Labels
U.L. (Suitable for Damp Locations); I.B.E.W.
Lytecaster
1195/1102P1 Series
Standard Incandescent
Incandescent
Height
100W A19 7 13/16", 8 13/16" 1100FTU Series Non-IC
150W A21
(135W A21)*
IC 75W A19 9 1/4"
®
Recessed Downlighting
®
6 3/4" Aperture Deep Wall Washer Reflector Trim
1195/1100 DEEP IC Series
Incandescent Insulated Ceiling
Fluorescent
Frame-In Kit Installation Type Lamping
1101F18U UniFrame
™
Series
Non-IC
1101F2642U UniFrame
™
Series Non-IC
1101F18ICU/N Performance IC
1101F2642ICU Performance IC
1101F2642IUN
1101FDICMX1/N Performance IC
Advance Mark10
Dimming 120v
1101FDICMX2/N Performance IC
Advance Mark10
Dimming 277v
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • I1007
Height
(1) Triple 26/32W (GX24q-3) 8 13/16"
(1) Quad/Triple 18W (GX24q-2) 7 15/16"
max.
(1) Quad/Triple 26W (GX24q-3) 7 15/16"
(1) Triple 32W (GX24q-3) max.
(1) Triple 42W (GX24q-3)
(1) Quad/Triple 18W (GX24q-2) 7 1/4"
(1) Quad/Triple 26W (GX24q 3) 7 1/4"
(1) Triple 32W (GX24q-3)
(1) Quad/Triple 26W (GX24q-3) 7 1/4"
(1) Triple 32W (GX24q-3)
(1) Quad/Triple 26W (GX24q-3) 7 1/4"
(1) Triple 32W (GX24q-3)
Type:
www.lightolier.com
1195
