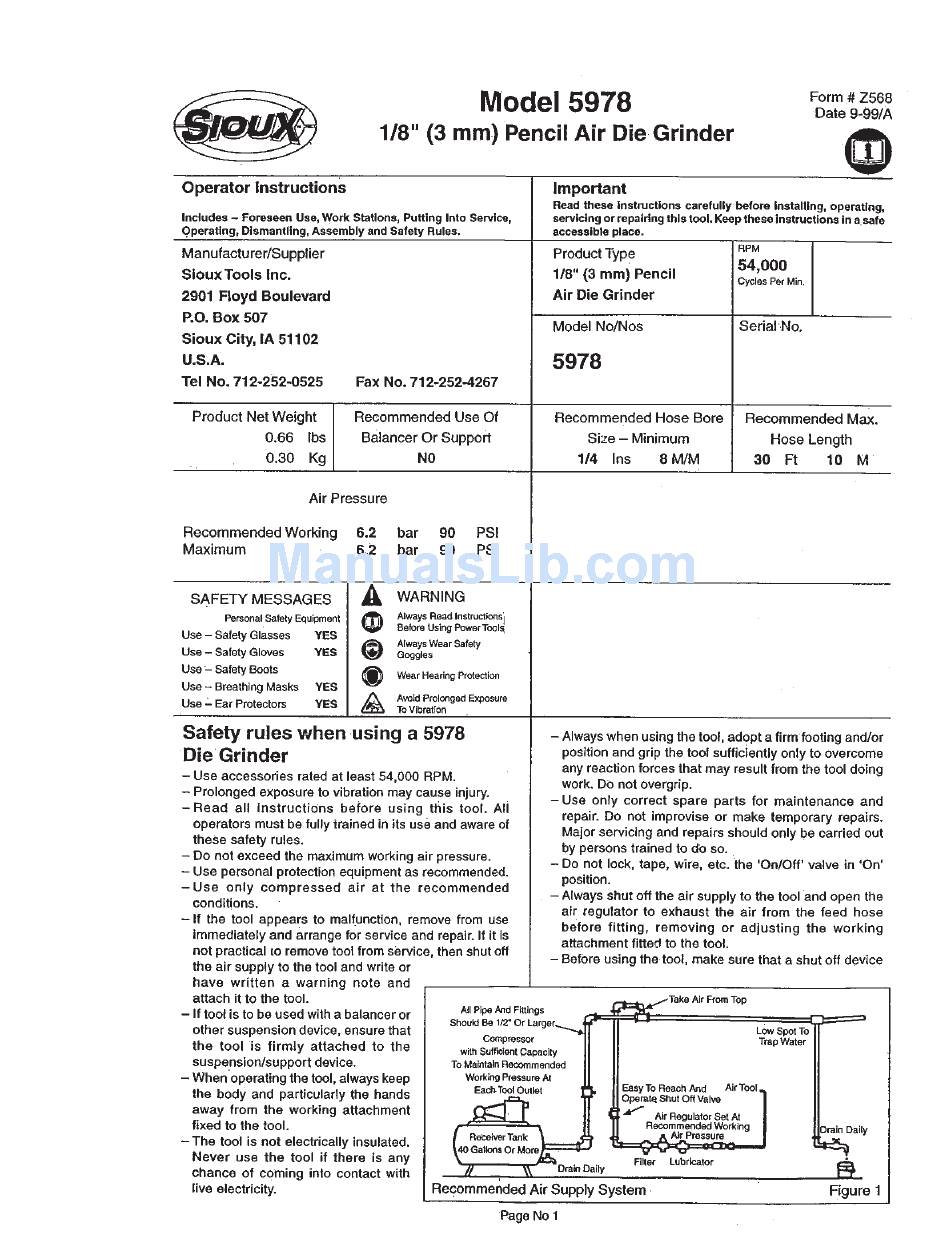

Sioux Tools 5978 Operator Instructions

Model 5978
Operator Instructions
Includes
-
Foreseen Use, Work Stations, Putting Into Service,
Operating, Dismantling, Assembly and Safety Rules.
ManufacturerlSupplier
Sioux Tools Inc.
2901 Floyd Boulevard
P.O. Box
507
Sioux City, IA 51 102
U.S.A.
Tel No. 71
2-252-0525 Fax No. 71 2-252-4267
Air Pressure
RecommendedWorking
6.2
bar
90 PSI
Maximum
6.2
bar 90
PSI
U s e
-
Safely
lasses
YES
Always Wear Safety
U s e
'-
Safety
Boots
@
Wear Hearing
Protection
U s e
-
Breathing
Masks YES
U s e
-
Ear Protectors YES
A
Ep
E3tposure
Safety
rules
when using a 5978
Die Grinder
-
Use accessories rated at least 54,000 RPM.
-
Prolonged exposure to vibration may cause injury.
-Read all instructions before using this tool. All
operators must be fully trained in its use and aware of
these safety rules.
-
Do not exceed the maximum working air pressure.
-
Use personal protection equipment as recommended.
-Use only compressed air at the recommended
conditions.
-If the tool appears to malfunction, remove from use
immediately and arrange for service and repair. It it Is
not practical
1 0
remove tool from service, then shut off
the air supply to the tool and write or
have written a warning note and
,
attach it to the tool.
-
If tool is to be used with a balancer or
other suspension device, ensure that
the tool i s firmly attached to the
suspension/support device.
-When operating the tool, always keep
the body and particularly the hands
away from the working attachment
fixed to
the
tool.
-The tool is not electrically insulated.
Never use the tool if there is any
chance of coming into contact with
live electricity.
Form # Z568
Date
9-59/A
Important
Read these instructions carefully before Installing, operating,
servicing or repairing this tool. Keep these Instructions in asafe
. .
. .
accessible place.

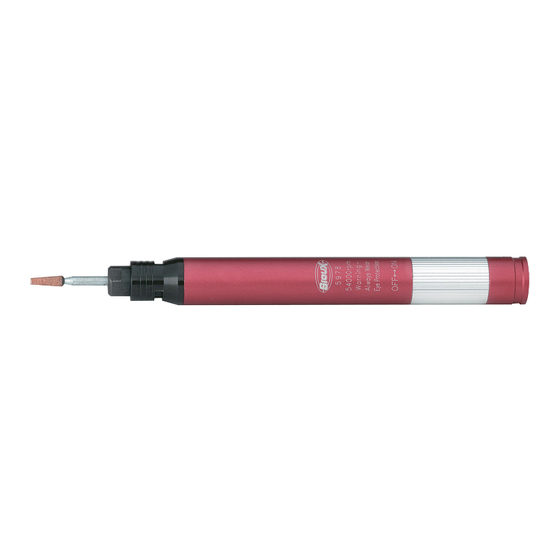

Product Type
118" (3 rnrn) Pencil
Air Die Grinder
Model No/Nos
Recommended Hose Bore
Size
-
Minimum
114 Ins
8 M f M
54,000
Sycles Per Min.
-
Serial
No.
Recommended
Max.
Hose Length
30 Ft
10
M
-
Always when using the tool, adopt a firmfooting and/or
position and grip the tool sufficiently only to overcome
any reaction forces that may result from the tool doing
work. Do not overgrip.
-Use only correct spare parts for maintenance and
repair. Do not improvise or make temporary repairs.
Major servicing and repairs should only be carried out
by persons trained to do so.
-
Do not lock, tape, wire, etc. the 'OnIOff' valve in 'On'
position.
-Always shut off the air supply to the tool and open the
air regulator to exhaust the air from the feed hose
before fitting, removing or adjusting the working
attachment fitted to the tool.
- Before using thetool, make sure that a shut off device
Take A i r From
Top
-
*
L& Spot To
Trap
Water
with Suffichl Capacity
To Maintain ~ecomhended
Working Pressure A>
EachTool Outlet
Easy
To Reach
And
Air Toot
Filter Lubricator
~ecommended Air Supply
System
Figure 1
Page No 1
