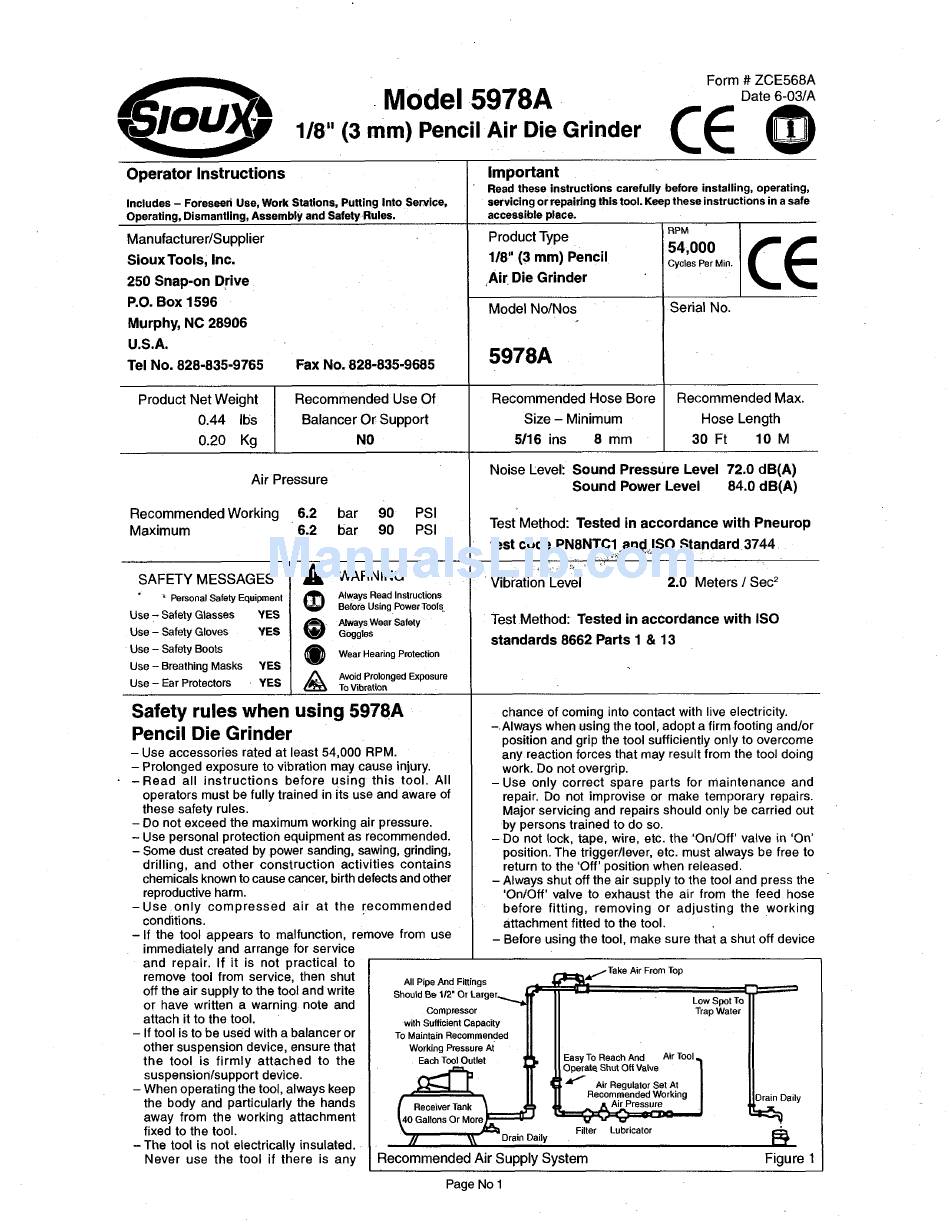

Sioux Tools 5978A Operating Instructions Manual

Model 5978A
118" (3
mm) Pencil Air Die Grinder
Operator Instructions
Includes
-
Foreseen Use, Work Stations, Putting Into Service,
Operating, Dismantling, Assembly and Safety Rules.
Manufacturer/Supplier
Sioux Tools,
Inc.
250 Snap-on Drive
P.O. Box 1596
Murphy, NC 28906
U.S.A.
Tel No. 828-835-9765
Fax No. 828-835-9685
Product Net Weight Recommended Use
Of
0.44 Ibs Balancer Or Support
0.20
Kg
NO
Air Pressure
Recommended Working 6.2 bar 90 PSI
Maximum 6.2 bar
90
PSI
Personal Safety Equipment
a
Always Read Instructions
Before Using PowerTools
e
-
a a s s e s Y E
1
H^s
wear
Use
-
Safety Gloves YES
Goggles
Safety rules when using 5978A
Pencil Die Grinder
Use
-
Safety Boots
Use
- Breathing
Masks YES
Use
-
Ear Protectors YES
- Use accessories rated at least 54.000 RPM.
- Prolonged exposure to vibration may cause injury.
-Read all instructions before using this tool. All
operators must be fully trained in its use and aware of
these safety rules.
- Do not exceed the maximum working air pressure.
-
Use personal protection equipment as recommended.
-Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains
chemicals known to cause cancer, birth defects and other
reproductive harm.
-Use only compressed air at the recommended
conditions.
-
If the tool appears to malfunction, remove from use
immediately and arrange for service
and reoair. If it is not oractical to
7
@
Wear Hearing Protection
A
~ ~ b ~ ~ ~ g e d Expsure
remove tool from service, then shut
off the air supply to the tool and write
or have written a warning note and
attach it to the tool.
- If tool is to be used with a balancer or
other suspension device, ensure that
the tool is firmly attached to the
suspension/support device.
-When operating the tool, always keep
the body and particularly the hands
away from the working attachment
fixed to the tool.
-The tool is not electrically insulated.
Never use the tool if there is any
Form # ZCE568A
Date 6-03lA
Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible olace.
Model NotNos
Product Type
118"
(3 mm)
Pencil
Air Die Grinder
Serial No.
RPM
Cycles Per ~ m .
54000
Noise Level: Sound Pressure Level 72.0 dB(A)
Sound Power Level 84.0 dB(A)
ce
Recommended Hose Bore
Size
-
Minimum
5/16 ins 8 mm
Test Method: Tested
in
accordance with Pneurop
test code PN8NTC1 andISO Standard 3744
- '
>
*
Recommended Max.
Hose Length
30 Ft 10
M
vibration Level 2.0 Meters
/
Sec2
Test Method: Tested
in
accordance with I S 0
standards 8662 Parts
1 &
13
chance of coming into contact with live electricity.
-Always when using the tool, adopt a firm footing and/or
position and grip the tool sufficiently only to overcome
any reaction forces that may result from the tool doing
work. Do not overgrip.
-Use only correct spare parts for maintenance and
repair. Do not improvise or make temporary repairs.
Major servicing and repairs should only be carried out
by persons trained to do so.
- Do not lock, tape, wire, etc. the 'OnIOtf valve in 'On'
position. The triggerllever, etc. must always be free to
return to the 'Off' position when released.
-Always shut off the air supply to the tool and press the
On/Off1 valve to exhaust the air from the feed hose
before fitting, removing or adjusting the working
attachment fitted to the tool.
-
Before using the tool, make sure that a shut off device
Take Air From Top
Al l
Pipe And Fittings
Should Be 112" Or Larger
Compressor
with Sufficient Capacity
To Maintain Recommended
Working Pressure At
Each Tool Outlet
Drain Daily
L
Recommended Air Supply System Figure 1
Page No
1
