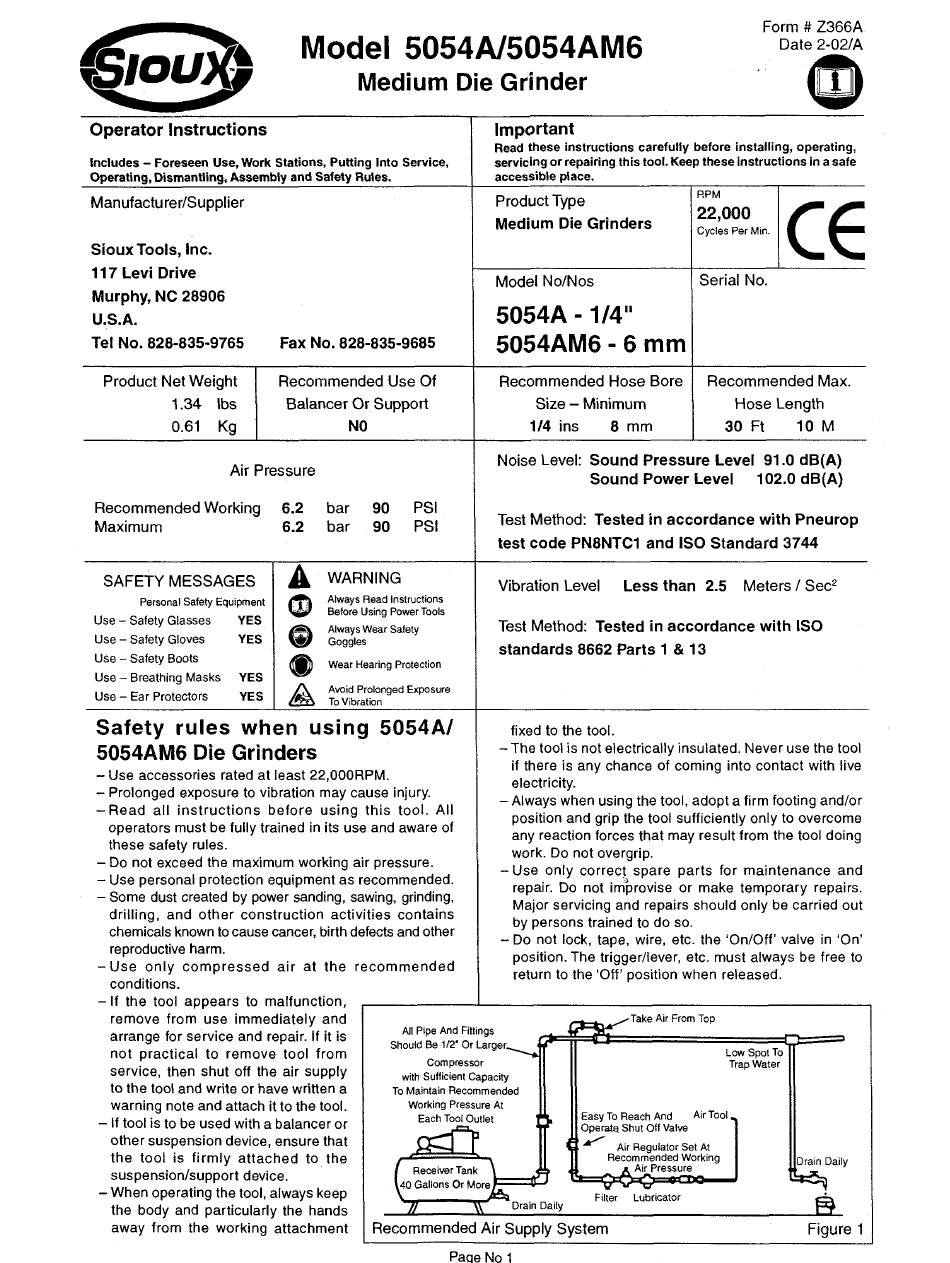

Sioux Tools 5054A Operator Instructions Manual

Form #
Z366A
Model 5054N5054AM6
Date 2 - O ~ / A u

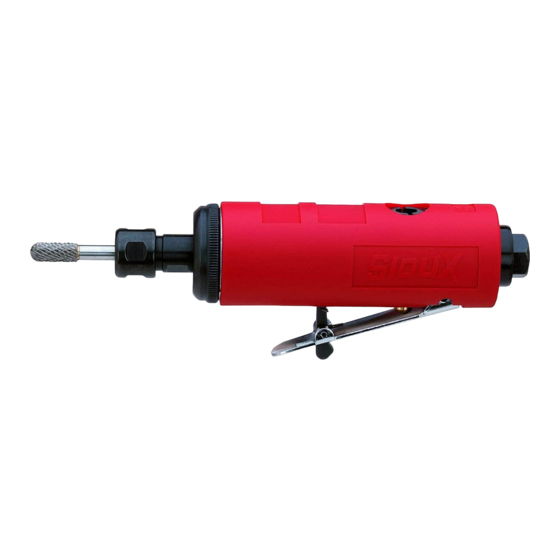

Medium Die Grinder
Operator Instructions
Includes
-
Foreseen Use, Work Stations, Putting Into Service,
Operating, Dismantling, Assembly and Safety Rules.
Manufacturer/Supplier
S i o u x Tools, Inc.
Recommended Working
Maximum
117 L e v i Drive
Murphy, N C 28906
U.S.A.
Tel No. 828-835-9765
Fax
No. 828-835-9685
6.2 bar 90 PSI
6.2 bar 9 0 PSI
Product Net Weight
1.34 Ibs
0.61 K g
SAFETY MESSAGES
Personal Safety Equipment
Use
-
Safety Glasses
YES
Use - Safety Gloves
YES
Use
-
Safety Boots
Use - Breathing Masks
YES
Use - Ear Protectors
YES
Recommended Use Of
Balancer Or Support
NO
A
WARNING
Always Read Instructions
Before Using Power Tools
Air Pressure
@
Always Wear Safety
Goggles
@
Wear Hearing Protection
Avoid Prolonged Exposure
To Vibration
Safety rules when using 5 0 5 4 A l
5054AM6 Die Grinders
-Use accessories rated at least 22,000RPM.
-
Prolonged exposure to vibration may cause injury.
-Read all instructions before using this tool. All
operators must be fully trained in its use and aware of
these safety rules.
- Do not exceed the maximum working air pressure.
-
Use personal protection equipment as recommended.
- Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains
chemicals known to cause cancer, birth defects and other
reproductive harm.
- U s e only compressed air at the recommended
conditions.
- I f the tool appears to malfunction,
,
remove from use immediately and
arrange for service and repair. If it is
not practical to remove tool from
service, then shut off the air supply
to the tool and write or have written a
warning note and attach it to the tool.
- If tool is to be used with a balancer or
other suspension device, ensure that
the tool is firmly attached to the
suspension/support device.
-When operating the tool, always keep
the body and particularly the hands
away from the working attachment
Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Product Type
RPM
22,000
Medium Die Grinders
per
Noise Level: S o u n d Pressure Level 91.0 dB(A)
S o u n d Power Level 102.0 dB(A)
- - --
Recommended Hose Bore
Size
-
Minimum
114 ins 8 m m
Test Method: Tested
in
accordance
with
P n e u r o p
test c o d e PN8NTC1
and
I S 0 Standard 3744
Recommended Max.
Hose Length
3 0 F t 1 0 M
Vibration Level L e s s t h a n 2.5 Meters
/
Sec2
Test Method: Tested
in
accordance w i t h
IS0
standards 8662 Parts
1 &
1 3
fixed to the tool.
-The tool is not electrically insulated. Never use the tool
if there is any chance of coming into contact with live
electricity.
-Always when using the tool, adopt a firm footing and/or
position and grip the tool sufficiently only to overcome
any reaction forces that may result from the tool doing
work. Do not overgrip.
-Use only correct spare parts for maintenance and
repair. Do not improvise or make temporary repairs.
Major servicing and repairs should only be carried out
by persons trained to do so.
-Do not lock, tape, wire, etc. the 'On/Off valve in 'On'
position. The triggedlever, etc. must always be free to
return to the 'Off' position when released.
All Pipe And Fittings
Should Be 112' Or Large
with Sufficient Capacity
To Maintain Recommended
Worki n g
Pressure At
Easy To Reach And
Air Tool
Operate Shut Off Valve
Recommended Air Supply System Figure
1
Page No 1
