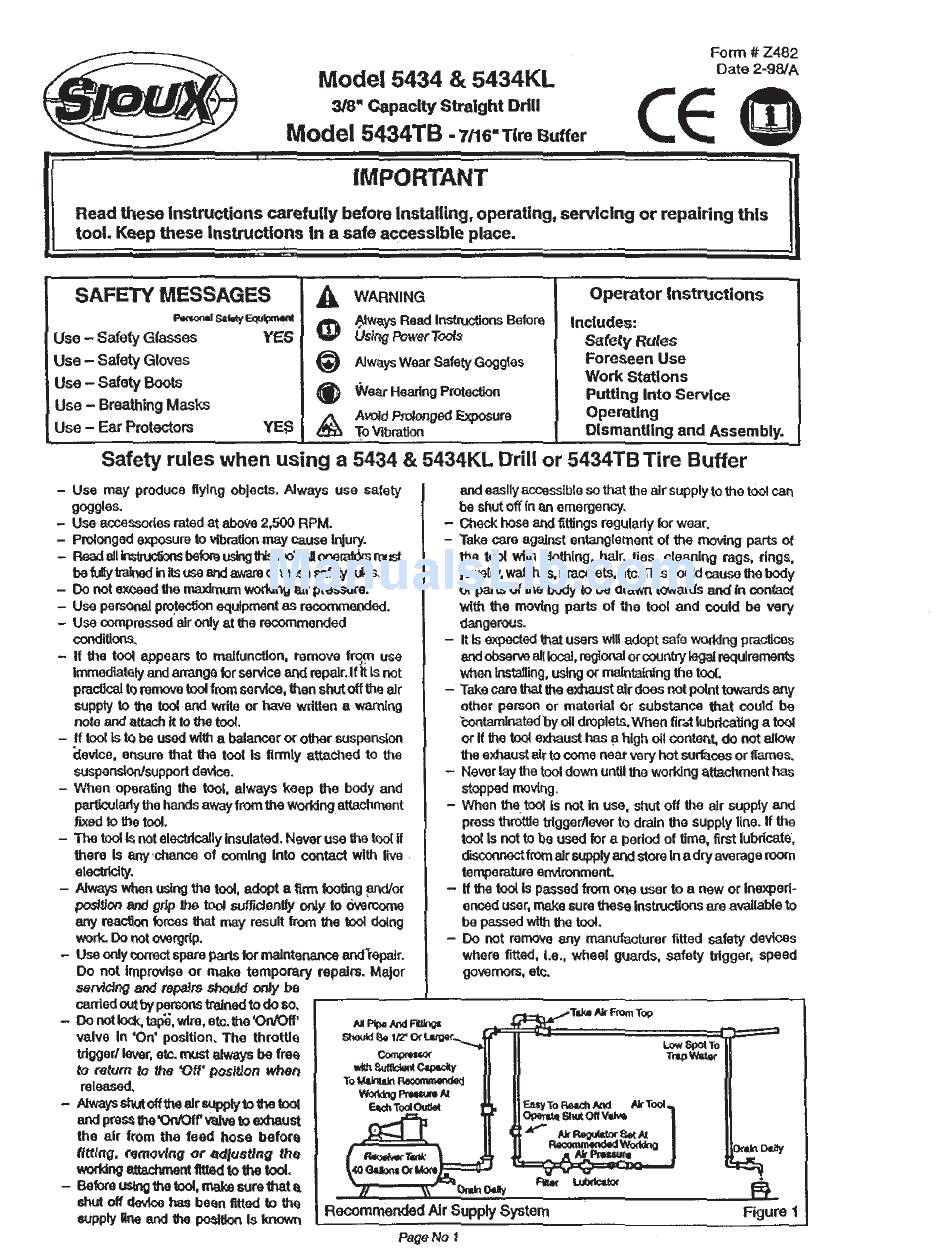

Sioux Tools 5434KL Operator Instructions

Form # 2482
Model 5434 & 5434KL
Date 2-98/~

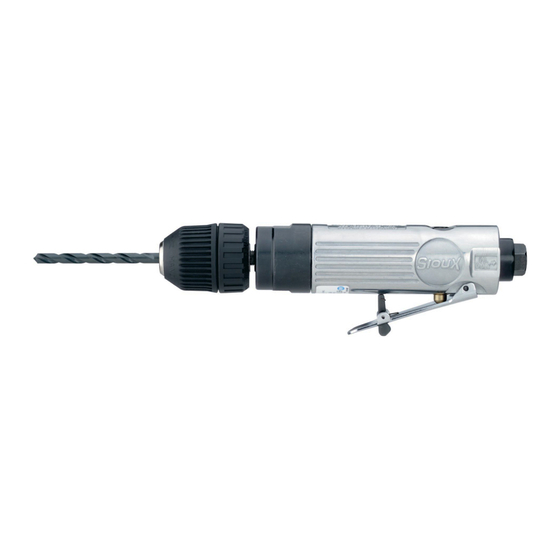

3/8" Capacity Straight Drill
Mo,del5434TB
-
7/16"Tke Buffer
IMPORTANT
Read these instructions carefully before Installing, operating, servicing or repairing this
tool. Keep these Instructions In a safe accessible place.
1
SAFETY
MESSAGES
1 A
WARNING
1
Operator Instructions
I
Safety
rules
when using a 5434 & 5434KL Drill or 5434TB Tire Buffer
Use
-
Safety Gloves
Use
-
Safety
Boots
Use
-
Breathing
Masks
Use
-
Ear Protectors
YES
-
Use may produce flying objects. Always use safety
goggles.
-
Use accessories rated at W e 2,500 RPM.
-
Prolonged exposure to vibration may cause Injury.
-
ReadallInstnxfiCTTCbeforeusingthtetoot.Atopeiatiremust
befuKytainedInitsusaandawareof thesesafety nies.
-
Do not exceed the maximum working air pressure.
-
Use personal protection equipment as recommended.
-
Use compressed air only
at
the recommended
conditions.
-
If the tool appears to malfunction, remove from use
Immediately and arrange for service and repair.lf
h
I S
not
practical to remove tool from service, (hen shut off the air
supply to the toot and write or have written a
warning
note and
attach
it
to the toot.
-
If tool
Is
to be used with a balancer or other suspension
device, ensure that the tool is firmly attached to the
suspensidsupport device.
-
When operating the tool. always keep the body and
particularly the hands away from the working, attachment
fixed tothe
tool.
-
The tool Is not electrically Insulated. Never use the tool If
there Is any -chance of coming Into contact with live
electricity.
-
Always when using the tool, adopt a finn footing
and/or
position and grip the tool sufficiently only to 6wrcorne
any
reaction forces
that
may result from
the too)
doing
work. Do not overgrip.
-
Use only con-act spare
parts
for
maintenance ancfrepadr.
Do not Improvise or make temporary repairs. Major
servicing and repairs should only be
carriedoutbvnereonstminedtodoso.
7
-
DO
not
taps,
wire, etc. the WOW
valve In 'Ona position. The throttle
trigger/ fever, etc. must always be free
to return to the 'Off' position when
released.
-
Ahvfwsshutoffthealrsupptytothetool
and press the "On/Off
valve to
exhaust
the air from the lead hose before
fitting, removing
or adjusting
the
W n g attachment fitted to the tool.
-
Beforeusbgthetoolmakesurethata
shut
off device
has been
fitted
to
the
supply One and the position Is known
@
Always Wear Safety Goggles
<fi)
wear Hearing Protection
Avoid Prolonged Exposure
A
o Vibration
and easily accessible so that the alrsupply to the
tool
can
be shut off In
an
emergency.
-
Check hose and fittings regularly
(or
wear.
-
Take
care against entanglement
of the moving parts
of
the tool with clothing, hair, ties, cleaning rags, rings,
jewelry, watches, bracelets,
etc.This
could cause the body
or parts of
the
body to be drawn towards
and in contact
with the moving parts of the tool and could be very
dangerous.
-
It Is
expected
that users will adopt safe woridng practices
and observa all local, regional
or
country legal requirements
when Installing, using
or
maintaining (he tool.
-
Take care
that
the exhaust air does not point
towards
any
other person or material or substance that could be
-3ontaminatedby dl droplets. When firo$ lubricating a tool
or If the toot exhaust has high
ofl
content, do not allow
the exhaust air to come near very hot surfaces or flames.
-
Never lay the tool down until the working attachment has
stopped moving.
-
When the tool is
not
in use. shut off the air supply
and
press throttle triggerAever to drain the supply line. If the
tool I s
not to I n used (or a
period of
time,
first
lubricate,
disconnect from air supply and store In adry average room
temperature
environment
-
If the
tool
Is passed from one user to a new or Inexperi-
enced usor, make sure these Instructions are available to
be passed with the
tool.
-
Do not
remove
any
manufacturer fitted safety devices
where fitted,
I.8..
wheel guards, safety trigger, speed
governors, etc.
ores seen
Use
Work Stations
Putting
Into Service
Operating
Dismantling and Assembly.
\
\ \ - - w
Recommended Air Supply System
Fiqure
1
Page No
1
