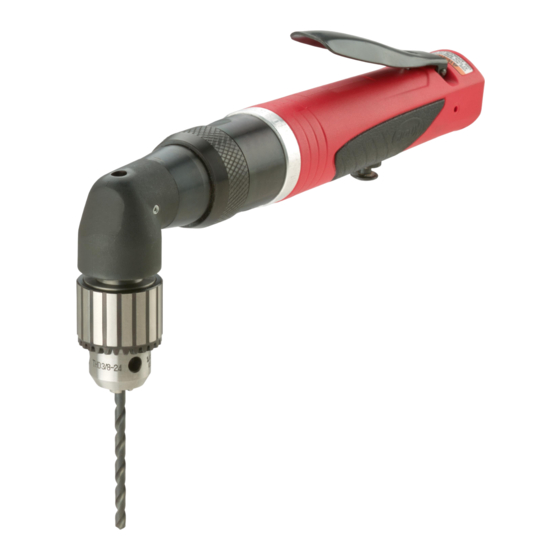

INSTRUCTIONS & PARTS LIST FOR SDR10A ANGLE DRILLS
Everyone using, maintaining, changing accessories or working near this tool must read, understand and follow
Drills can cause flying particles.
Proper eye protection must be worn at all times by tool user and bystanders.
Flying particles can cause eye injury.
Power tools generate noise.
Ear protection must be worn when tool noise level exceeds 85 dBA. We also recommend that ear protection be
worn when the tool noise level is below 85 dBA. See the tool's information sheet for the noise level.
Prolonged exposure to noise can cause hearing loss.
Power tools vibrate.
Excessive vibration can cause injury. If numbness, tingling, pain or whitening of the skin occurs, stop using tool
and consult a physician. See the tool's information sheet for the vibration level.
Prolonged exposure to vibration can cause injury.
Drills present a risk of entanglement.
Keep loose hair away from power tools and accessories. Keep hands away from moving parts of the tool and
accessories. Do not wear jewelry, loose clothing, or neckwear around power tools. Keep work area clear of
cleaning rags and all items that could become entangled with the tool.
Entanglements can cause injuries.
Drilling operations creates dust.
Do not breathe drilling dust. Use approved mask.
Breathing drilling dust can cause injury.
This tool is not insulated for contact with electric power sources.
Do not use near live electric circuits. When drilling into walls, be aware that they may have hidden electric wires.
Electric shock can cause injury.
This tool is not intended for use in a flammable or explosive atmosphere.
Do not use this tool in a flammable or explosive atmosphere.
Explosions and fire can cause injury.
When using a drill, sudden and unexpected tool movement can occur:
• When the drill bit breaks through the material being drilled.
• If the tool stalls because of being pushed too hard.
• If the bit snags on the material being drilled.
Be sure your body position allows you to have control of the tool at all times. Make sure your footing is secure.
Sudden and unexpected tool movement can cause injury.
Using excessive force on a tool makes it hard to control.
Do not force tool.
Hard to control tool can cause injury.
Taping or wiring the throttle valve in the "ON" position will prevent the tool from shutting off if the tool should jam or
malfunction or if anything unexpected happens.
Do not wire or tape down the "On-Off" valve of any power tool.
Tools that are prevented from shutting off can cause injury.
250 Snap-on Drive • PO Box 1596 • Murphy, NC 28906 • USA • Phone: 828-835-9765 •www.siouxtools.com
Read and understand these instructions before operating this tool.
SAVE THESE INSTRUCTIONS!
When used improperly power tools can create hazardous situations.
Improperly used power tools can cause injury or death.
DRILL SAFETY
SERIAL"A"
WARNING
these Safety Instructions!
1
Form ZCE800
Date 2009September23/B
Page 1 of 26
Advertisement
Table of Contents
Related Manuals for Sioux Tools SDR10A
Summary of Contents for Sioux Tools SDR10A
- Page 1 Form ZCE800 Date 2009September23/B Page 1 of 26 INSTRUCTIONS & PARTS LIST FOR SDR10A ANGLE DRILLS SERIAL“A” Read and understand these instructions before operating this tool. SAVE THESE INSTRUCTIONS! WARNING When used improperly power tools can create hazardous situations. Everyone using, maintaining, changing accessories or working near this tool must read, understand and follow these Safety Instructions! Improperly used power tools can cause injury or death.
-
Page 2: Intended Use
Be sure actuator is off before hooking up air. Unexpected starts can cause injury. The use of any accessory with this tool not provided or specified by Sioux Tools can perform unpredictably. Use only accessories provided or specified by Sioux Tools. -
Page 3: Maintenance
Disconnect tool from air supply before installing or removing drill bit or making any adjustments SOUND AND VIBRATION READINGS *Sound Pressure *Sound Power *Vibration Catalog No. SDR10A Series 77.7 89.3 Less than 2.5 *per PN8NTC1 *per PN8NTC1 *per ISO 8662 DECLARATION OF CONFORMITY We, Sioux, Snap-on Power Tools, Inc., 250 Snap-on Drive, P.O. - Page 4 BEDIENUNGSANLEITUNG UND TEILELISTE FÜR WINKELBOHRER SDR10A SERIE“A” Lesen Sie diese Bedienungsanleitung, bevor Sie dieses Werkzeug in Betrieb nehmen. BEWAHREN SIE DIESE ANLEITUNG AUF! WARNUNG Unsachgemäßer Gebrauch von Werkzeugen kann zu gefährlichen Situationen führen. Jede Person, die dieses Werkzeug gebraucht, wartet, Zubehör auswechselt oder in der Nähe dieses Werkzeugs arbeitet, muss diese Sicherheitshinweise lesen, verstanden haben und befolgen! Unsachgemäßer Gebrauch von Werkzeugen kann zu Verletzungen oder zum Tod führen.
-
Page 5: Bestimmungsgemässer Gebrauch
Sorgen Sie dafür, daß der Einschalter auf “Aus” steht, bevor Sie die Druckluft anschließen. Unerwartete Starts können zu Verletzungen führen Der Gebrauch von Zubehör, das nicht von Sioux Tools geliefert oder spezifiziert wurde, kann zu unvorhersehbaren Zwischenfällen führen. Verwenden Sie ausschließlich von Sioux Tools geliefertes oder empfohlenes Zubehör. -
Page 6: Wartung
Trennen Sie das Werkzeug von der Druckluftversorgung, bevor ein Bohrer montiert oder entfernt oder eine Einstellung vorgenommen wird. SCHALL- UND VIBRATIONSWERTE Katalog *Schalldruck *Schallstärke *Vibration SDR10A Serie 77,7 89,3 Weniger als 2,5 *per PN8NTC1 *per PN8NTC1 *per ISO 8662 KONFORMITÄTSERKLÄRUNG Wir, Sioux, Snap-on Motorgetriebene Werkzeuge, Inc., 250 Snap-on Drive, P.O. - Page 7 INSTRUCCIONES Y LISTA DE PIEZAS PARA LOS TALADROS EN ANGULO SDR10A SERIE“A” Lea y entienda estas instrucciones antes de usar esta herramienta. ¡NO PIERDA ESTAS INSTRUCCIONES! ADVERTENCIA Una herramienta motorizada puede ser peligrosa si no se usa correctamente. ¡Las personas que vayan a usar la herramienta, darle mantenimiento, quitar o poner accesorios o trabajar cerca de la herramienta deben leer, entender y respetar estas instrucciones de seguridad! Una herramienta motorizada que no se use correctamente puede provocar lesiones o fatalidades.
-
Page 8: Uso Recomendado
Asegúrese que el accionador está en “off” (apagado) antes de conectar el aire. Los arranques inesperados pueden producir lesiones. El uso de cualquier accesorio con esta herramienta que no sea proporcionado o especificado por Sioux Tools puede tener un rendimiento impredecible. -
Page 9: Mantenimiento
Desconecte la herramienta del suministro de aire antes de poner o sacar brocas, o de realizar algún ajuste. LECTURA DE VIBRACIONES Y SONIDOS *Presión de sonido *Potencia de sonido *Vibración Catalogo SDR10A Series 77,7 89,3 Menos de 2,5 *según PN8NTC1 *según PN8NTC1 *según ISO 8662... - Page 10 ISTRUZIONI E LISTINO PARTI PER TRAPANI AD ANGOLO SDR10A SERIALE “A” Leggere attentamente queste istruzioni prima di usare l’attrezzo. CONSERVARE QUESTE ISTRUZIONI! AVVERTIMENTO Utensili a motore non usati correttamente possono creare condizioni di rischio.. Chiunque usi, mantenga, sostituisca accessori o lavori vicino a quest’utensile deve leggere attentamente e seguire queste istruzioni di sicurezza! L’uso diverso dal previsto di questi utensili a motore può...
-
Page 11: Uso Previsto
Accertarsi che il dispositivo di azionamento sia disattivato prima di collegare l’aria. Un avvio imprevisto può provocare lesioni. L’utilizzo, con questo strumento, di accessori non forniti o specificati da Sioux Tools può portare a risultati imprevedibili. Utilizzare solo accessori forniti o specificati da Sioux Tools. -
Page 12: Manutenzione
Scollegare l'utensile dall'aria prima di installare o rimuovere la punta di trapano o effettuare qualsiasi regolazione VALORI DI RUMOROSITA’ E VIBRAZIONI *Pressioine sonora *Potenza sonora *Vibratzioni Catalogo n. SDR10A Serie 77,7 89,3 Inferiore a 2,5 *secondo PN8NTC1 *secondo PN8NTC1 *secondo ISO 8662 CERTIFICAZIONE DI CONFORMITA La Sioux, Snap-on Power Tools, Inc, con sede al 250 Snap-on Drive, P.O. - Page 13 INSTRUCTIONS & LISTE DE PIÈCES POUR PERCEUSES D’ANGLE SDR10A SÉRIE “A” Veuillez lire et comprendre ces instructions avant d’utiliser cet outil. CONSERVEZ CES INSTRUCTIONS ! AVERTISSEMENT Une utilisation incorrecte d’outils électriques risque d’engendrer des situations dangereuses. Toute personne susceptible d’utiliser, d’entretenir, de remplacer des accessoires ou de travailler à proximité de cet outil doit avoir lu et compris les instructions de sécurité...
-
Page 14: Usage Prévu
S’assurer que le dispositif de commande est sur “Arrêt” avant d’activer l’alimentation pneumatique. Un démarrage accidentel peut entraîner des blessures. L’utilisation d’accessoires non fournis ou recommandés par Sioux Tools peut entraîner un fonctionnement irrégulier. N’utiliser que les accessoires fournis ou recommandés par Sioux Tools. - Page 15 Débrancher l'outil de l'alimentation d'air avant d'installer ou de retirer le foret ou d'effectuer tout réglage NIVEAUX ACOUSTIQUES ET VIBRATOIRES *Pression acoustique *Puissance acoustique *Vibration Catalog No. SDR10A Serie 77,7 89,3 Moins de 2,5 *selon la norme *selon la norme...
- Page 16 INSTRUCTIES EN ONDERDELENLIJST VOOR HOEKBOREN SDR10A SERIE“A” Zorg dat u deze instructies hebt gelezen en begrepen voordat u dit gereedschap gebruikt. BEWAAR DEZE INSTRUCTIES! WAARSCHUWING Bij verkeerd gebruik kunnen elektrische werktuigen gevaarlijke situaties teweegbrengen. Iedereen die accessoires gebruikt, onderhoudt of vervangt of nabij dit werktuig werkt, moet deze veiligheidsinstructies hebben gelezen, begrepen en volgen! Verkeerd gebruikte elektrische werktuigen kunnen letsel of de dood veroorzak.
-
Page 17: Beoogd Gebruik
Zorg dat de aan/uit knop uitstaat, alvorens de luchttoevoer aan te sluiten. Onverwacht startende slijpmachines kunnen letsel veroorzaken. Het gebruik van een niet door Sioux Tools geleverd of gespecificeerd onderdeel of accessoire kan onverwachte gevolgen hebben. Gebruik alleen door Sioux Tools geleverde of gespecificeerde onderdelen en accessoires. - Page 18 Koppel het werktuig los van de luchttoevoer voordat u een boortje installeert of verwijdert of de boor bijstelt. GELUIDS- EN TRILLINGSNIVEAUS Catalogus- *Geluidsdruk *Geluidsvermogen *Trilling nummer SDR10A Serie 77,7 89,3 Minder dan 2,5 *conform PN8NTC1 *conform PN8NTC1 *conform ISO 8662 CONFORMITEITSVERKLARING Ondergetekende, Sioux, Snap-on Power Tools, Inc., 250 Snap-on Drive, P.O.
- Page 19 ANVISNINGAR OCH RESERVDELSLISTA FÖR VINKEL BORRAR SDR10A SERIE“A” Läs och förstå dessa anvisningar innan du använder detta verktyg. SPARA DESSA ANVISNINGAR! VARNING Felaktig användning av motordrivna verktyg kan förorsaka risksituationer. Alla som använder, underhåller, byter tillbehör på eller arbetar nära detta verktyg måste läsa, sätta sig in i och följa dessa säkerhetsanvisningar!
-
Page 20: Avsett Användningsområde
Se till att manövreringsorganet är av innan du kopplar in luft. Oförutsedd start kan förorsaka kroppsskada. Om du använder tillbehör med detta verktyg som ej tillhandahålls eller specificeras av Sioux Tools kan dessa fungera oberäkneligt. Använd endast tillbehör som tillhandahålls eller specificeras av Sioux Tools. -
Page 21: Försäkran Om Överensstämmelse
Koppla loss verktyget från lufttillförseln före installation eller avlägsnande av borret och före eventuella justeringar LJUD- OCH VIBRATIONSAVLÄSNINGAR *Ljudtryck *Ljudeffek *Vibration Katalog nr. SDR10A Series 77,7 89,3 Mindre än 2,5 *enligt PN8NTC1 *enligt PN8NTC1 *enligt ISO 8662 FÖRSÄKRAN OM ÖVERENSSTÄMMELSE Vi, Sioux, Snap-on Power Tools, Inc., 250 Snap-on Drive, P.O. - Page 22 PARTS LIST FOR SDR10A SERIES ANGLE DRILLS REVERSING SINGLE REDUCTION SERIAL “A” *Order Quantity As Required FURNISH CATALOG, SERIAL, AND MODEL NUMBER WHEN ORDERING PARTS Fig. Part Description 21. ME11A33A Ball Bearing SDR-93 Single Reduction Gear Case (Includes Fig. 23)
- Page 23 PARTS LIST FOR SDR10A SERIES DRILLS REVERSING DOUBLE REDUCTION SERIAL “A” Fig. Part *Order Quantity As Required Description FURNISH CATALOG, SERIAL, AND SDR-24 Pin (3)* (300 RPM) MODEL NUMBER 30062 Pin (3)*(1000 & 600 RPM) WHEN ORDERING PARTS 10028B Needle Bearing (3)*(300 RPM) 10040 Needle Bearing (3)*(1000 &...
- Page 24 PARTS LIST FOR SDR10A SERIES ANGLE DRILLS NON-REVERSING SINGLE REDUCTION SERIAL “A” *Order Quantity As Required FURNISH CATALOG, SERIAL, AND MODEL NUMBER WHEN ORDERING PARTS Fig. Part Description SDR-44 Planetary Gear (2200 RPM)(3)* SDR-45 Planetary Gear (3000 RPM)(3)* 21. ME11A33A Ball Bearing SDR-93 Single Reduction Gear Case (Includes Fig.
- Page 25 PARTS LIST FOR SDR10A SERIES DRILLS NON-REVERSING DOUBLE REDUCTION SERIAL “A” Fig. Part Description *Order Quantity As Required SDR-27 Spacer FURNISH CATALOG, SERIAL, AND SDR-38 Cantilevered Gear Carrier (400 RPM) MODEL NUMBER SDR-39 Cantilevered Gear Carrier (1300 RPM) WHEN ORDERING PARTS...
- Page 26 WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. WARNUNG Der durch Elektrosanden, -sägen, -schleifen und -bohren sowie durch andere Bauarbeiten anfallende Staub enthält Chemikalien, die nachweislich Krebs sowie Geburts- bzw. andere Fortpflanzungsschäden hervorrufen.
- Page 27 ZCE800_revB used on SDR10A10N3 DRILL SS AH 3/8IN NR 1000 RPM SDR10A10N4 DRILL 1/2IN CAP 1000 RPM SDR10A10R3 DRILL SDR10A10R4 DRILL SS AH 1/2IN REV 1000 RPM SDR10A13N2 DRILL SS AH 1/4IN NR 1300 RPM SDR10A13N3 DRILL SS AH 3/8IN NR 1300 RPM SDR10A16R2 DRILL SS AH 1/4IN REV 1600 RPM SDR10A16R3...
