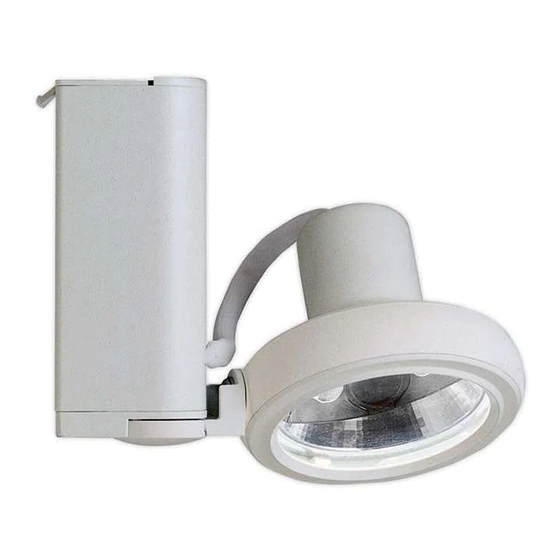

Lightolier Lytespan 6276B Specification

Page 1 of 2
5 4 6 3
4 3/32"
Ordering Information
Catalog No. Finishes
6276B WH Matte White
6276B BK
Matte Black
6276B AL
Metallic Aluminum
Features
1. Ring: Die-cast aluminum with cool grip insulation band, a high temperature
silicone rubber, which allows aiming adjustments while fixture is on.
2. Socket: Bi-pin ceramic socket wired with 18 ga. stranded Teflon
with fiberglass outer sleeve.
3. Transformer: Class two electronic transformer for 12V halogen lamps,
housed in an aluminum extrusion.
4. Track Attachment Fitting: Molded polycarbonate, rotates into track and
locks on with push tab; integral polarity key guard.
5. Push Tab: Locks and detaches unit from track.
6. Brass Contact: Extends for connection to second circuit in Advent
Lytespan track.
7. Tension Pivot Mounts: Die-cast aluminum. Allows for 180° horizontal
rotation and 180° vertical rotation.
8. Lamp Guard: Tempered glass.
9. Housing: Aluminum, fully encloses lamp back and socket. Vents dissipate
lamp heat. Die-Cast Aluminum.
Options & Accessories
Accessory Holder (7662) may be used with
One SNOOT (22SR6AL, BK, WH) plus one lens * or louver.
or One Lens (AF2 Series or ADF2 Series)
or One Louver (AL2 Series).
* Color Filters (ADF2 Series) may not be used with a SNOOT.
4 5/8"
7
Track Mountings
All Lytespan Track
Systems
® leads,
®
Lytespan
®
Sof-Tech
9
2
1
8
2 13/32"
Lamps
MR16 50W Max.
37W IR Max.
Electrical/Dimming
Dimming controls: Use only dimmers specifically designed for use with
electronic transformers, like Lightolier Sunrise
series. Low voltage fixtures may produce audible sound when used with
dimmers, which may be objectionable in acoustically critical areas.
Labels
UL, CUL
Teflon is a registered trademark of E.I. DuPont.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • D0606
6276B
Track Lighting
Low Voltage Enclosed Spot MR16
®
3 5/8" Pivot
4 15/16"
2 5/8"
and Neptune Momentum QE
TM
Type:
www.lightolier.com
TM
