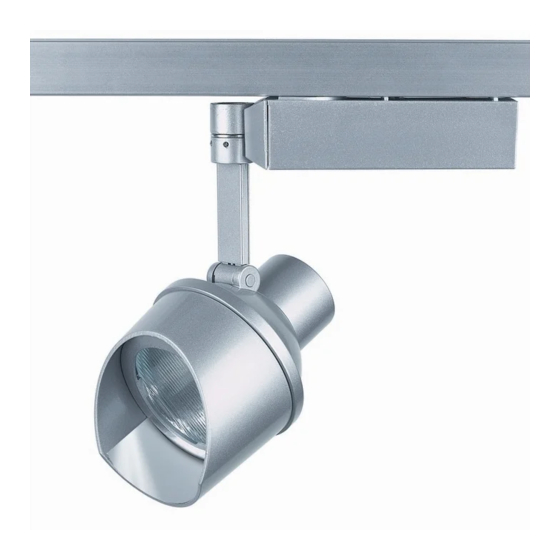

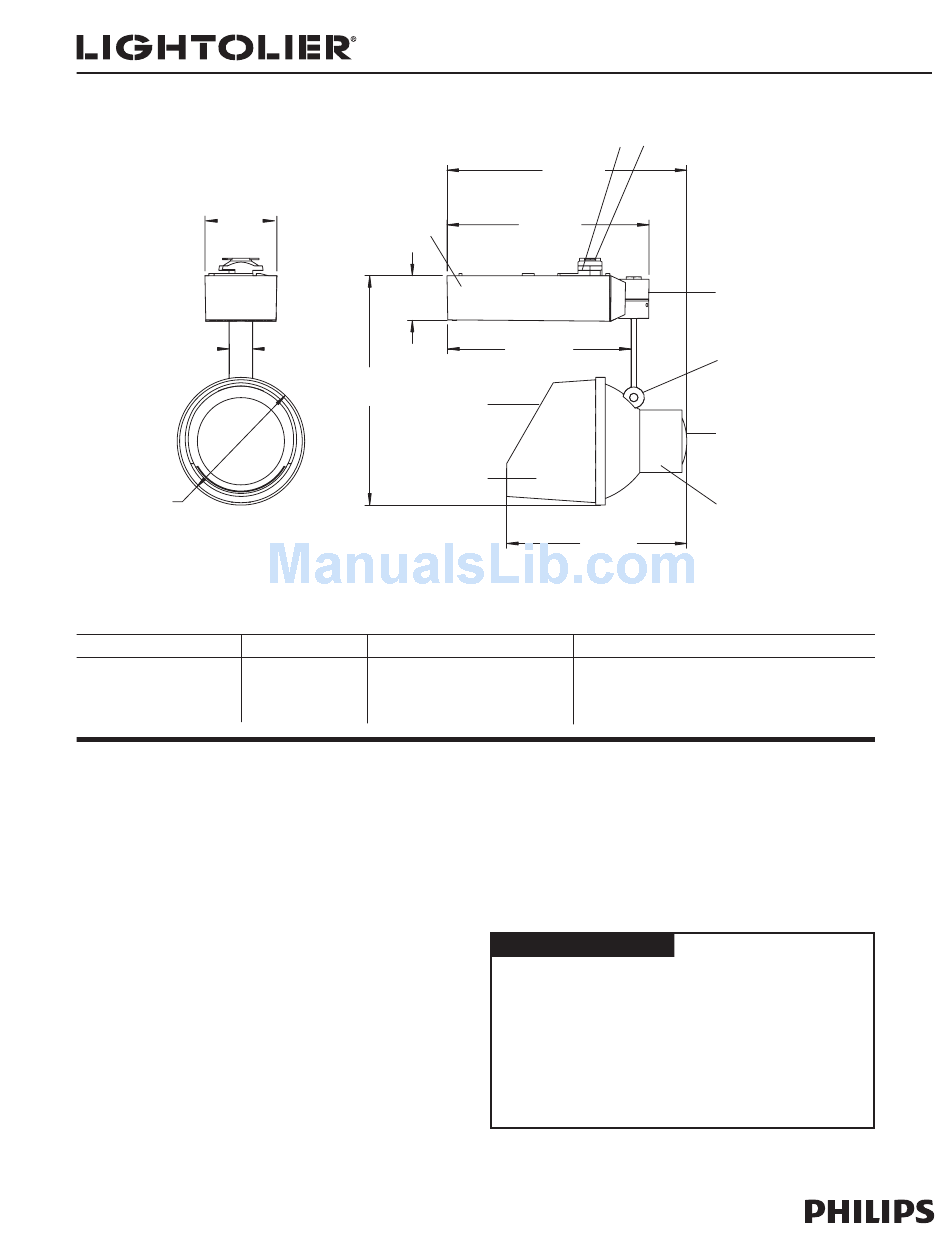

Lightolier Lytespan 22MW6 Specification

Page 1 of 2
1/2"
(13mm)
2 11/16"
(68mm)
Ordering Information
Catalog No.
22MW6WH
22MW6BK
22MW6AL
Features
1. Transformer: Class two electronic transformer for 12v halogen lamps
2. Track Attachment Fitting: Molded polycarbonate; rotates into track
3. Brass Contact: Extends for connection to second circuit
(Advent Lytespan track only)
4. Horizontal Pivot: Wireless stem profile with infinite horizontal rotation
5. Vertical Pivot: 0-90° vertical adjustment
6. Socket: Bi-pin multipoint contact low voltage halogen socket
7. Housing: Die cast aluminum
8. Front Cartridge: Hinged and captive.
9. Beam Elongator Lens: Fixed to ensure proper alignment. Meets UL
standards for use with unshielded lamps
Finish
All Painted finishes are baked enamel.
Dimming
Use only dimmers specifically designed for use with electronic transformers.
Low voltage fixtures may produce audible sound when dimmed.
Lightolier is a Philips group brand
1 1/2"
(38mm)
15/16"
(24mm)
4 3/4"
(120mm)
Finish Mounting
Matte White All Lytespan Track Systems.
Matte Black Does not mount on ProSpec Track.
Metallic Aluminum
Lytespan Track Lighting System
®
5"
(127mm)
4 1/4"
1
(108mm)
3 13/16"
(97mm)
9
8
3 3/4"
(96mm)
Lamps
MR16 Lamp with out Integral lens, 50W Max
MR16 Lamp with integral lens, 37W Max
Recommended Lamp Beam Spread: 25° - 40°
Optimal Lamp Beam Spread: 36°
Accessories
Accessory Holder:
Accessories:
Lens:
Louver:
Snoot Accessory:
Labels
UL, cUL
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
