Lightolier Lytecaster 2001L Specification

Lytecaster
Page 1 of 2
7 1/4"
Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.
Uniframe™ Compact Fluorescent Performance
Series Reflector Trims
Catalog No. Description
2001CLF 3-3/4" Vertical Wet Location Fresnel – Specular Clear
2001CDF 3-3/4" Vertical Wet Location Fresnel – Clear Diffuse
2001WHF
3-3/4" Vertical Wet Location Fresnel – Matte White
2001CLC 3-3/4" Vertical Wet Location Clear – Specular Clear
2001CDC 3-3/4" Vertical Wet Location Clear – Clear Diffuse
2001WHC 3-3/4" Vertical Wet Location Clear – Matte White
2001CLO
3-3/4" Vertical Wet Location Opal – Specular Clear
2001CDO 3-3/4" Vertical Wet Location Opal – Clear Diffuse
2001WHO 3-3/4" Vertical Wet Location Opal – Matte White
Features
1. Reflector: Formed aluminum. Matte White flange.
2. Finishes: CL = Specular Clear (Iridescent Free coating)
CD = Clear Diffuse
WH = Matte White Paint
3. Lens Type: F = Fresnel Lens
C = Clear Lens
O = Opal Lens
4. Performance Data: 65° Cutoff angle.
See attached photometric reports for distribution and efficiency data.
Go to www.lightolier.com for .IES files.
Performance Recessed CFL Downlighting
®
3 ¾" Aperture Vertical Wet Location, Compact Fluorescent, Performance Series,
2 7/8"
3 5/8"
4 1/2"

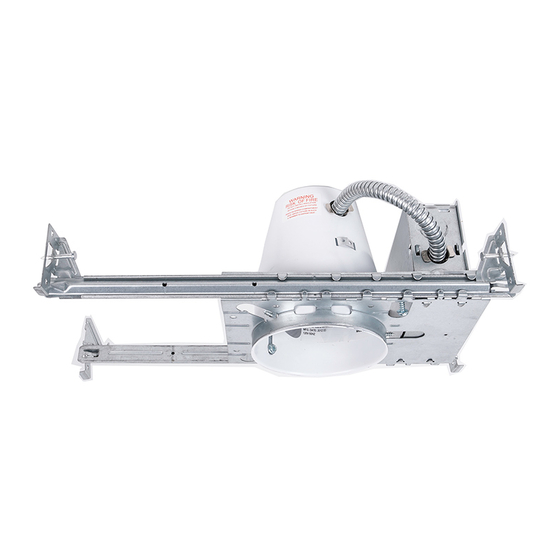

Compatible Frame-In Kits
(See Individual Frame-In Kit Specification Sheets)
Catalog No.
2001F13U
2001F18U
2001F13ICU/N
2001F18ICU/N
Installation Type
Uniframe ™ Non-IC 120/277v
Uniframe Non-IC 120/277v
™
Performance IC 120/277v
Performance IC 120/277v
Labels
cULus Listed. Suitable for Wet Locations. I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • C1007
2001L
Reflector Trim
Lamping
13w Quad/Triple
18w Triple
13w Quad/Triple
18w Triple
Type:
www.lightolier.com
