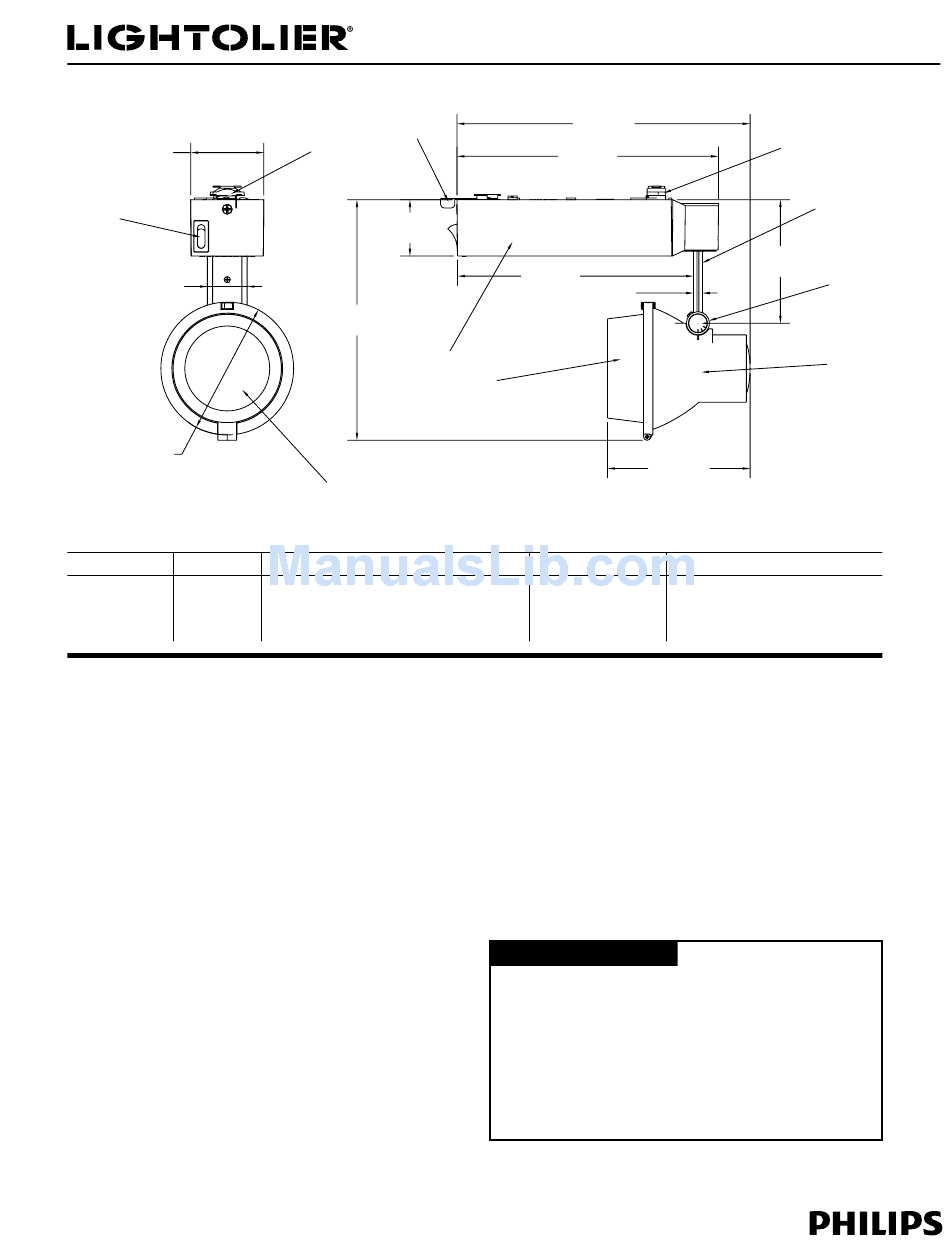

Lightolier Lytespan 23S39T4 Specification

Page 1 of 2
1 15/16 in
[50 mm]
8
1 1/16 in
[27 mm]
3 9/16 in
[90 mm]
Ordering Information
Catalog No. Finish
23S39T4AL
Aluminum
23S39T4BK Black
23S39T4WH White
Features
1. Track Attachment Fitting: Locking lever for mechanical/
electrical connection.
2. Brass Contact: Extends for connection to second circuit (Advent track only).
3. Horizontal Pivot: Wireless stem profile with 365° horizontal rotation.
Position may be locked using an allen key.
4. Vertical Pivot: 0-90° vertical adjustment with aiming indicator. Position
may be locked using an allen key.
5. Fixture Housing: Die cast aluminum
6. Ballast Housing: Molded polycarbonate
7. Safety Lens: Tempered 1/8" glass. Meets or exceeds UL safety requirement
for metal halide lamps.
8. On/Off Switch: Rocker switch to disconnect power to the ballast.
9. Accessory Cartridge: Hinged and captive; retaining ring included. Inside
painted black to reduce glare.
10. Safety Locking Lever: Locks ballast housing to track.
Finish
All Painted finishes are baked enamel.
Accessories
Accessory Holder: Integral
Accessories: Accepts 1 snoot plus 2 lenses or 1 louver plus 1 lens.
When using 2 accessories, remove safety lens provided.
Lens: AF25, ADF25 Series
Louver: AL25HC
Reflector
Interchangeable reflectors available to allow for desired beam spread.
REFLECTORS SOLD SEPARATELY.
Lightolier is a Philips group brand
Lytespan
10
2
1 1/2 in
[38 mm]
6 7/16 in
[163 mm]
6
7
Mounting
For use with Lytespan Radius, Basic and Advent
Track. Not compatible with extension wands
or slope ceiling adapters. For monopoint
applications refer to spec sheet 6172.
Track Lighting System
®
Alcyon HID 39W CMH T4 GU6.5 TAL Step Spot
7 13/16 in
[199 mm]
7 in
[178 mm]
6 5/16 in
[160 mm]
1/4 in
[6 mm]
9
3 13/16 in
[97 mm]
Lamps
39W T4 GU6.5 Base
Ceramic Metal Halide
Electrical
Electronic Ballast
Input Voltage: 120V, 50/60Hz
Power Factor: .9
Input Power: 45W
Max. Input Current: 0.40A
ANSI Code: C(M)130
Do not use on dimming circuit.
Labels
UL, cUL
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • B0908
23S39T4
1
3
3 5/16 in
[84 mm]
4
5
Reflectors
23MHRF, 23MHRS, 23MHRNF
23MHRFCCZ, 23MHRSCCZ, 23MHRNFCCZ
REFLECTORS SOLD SEPARATELY
Type:
