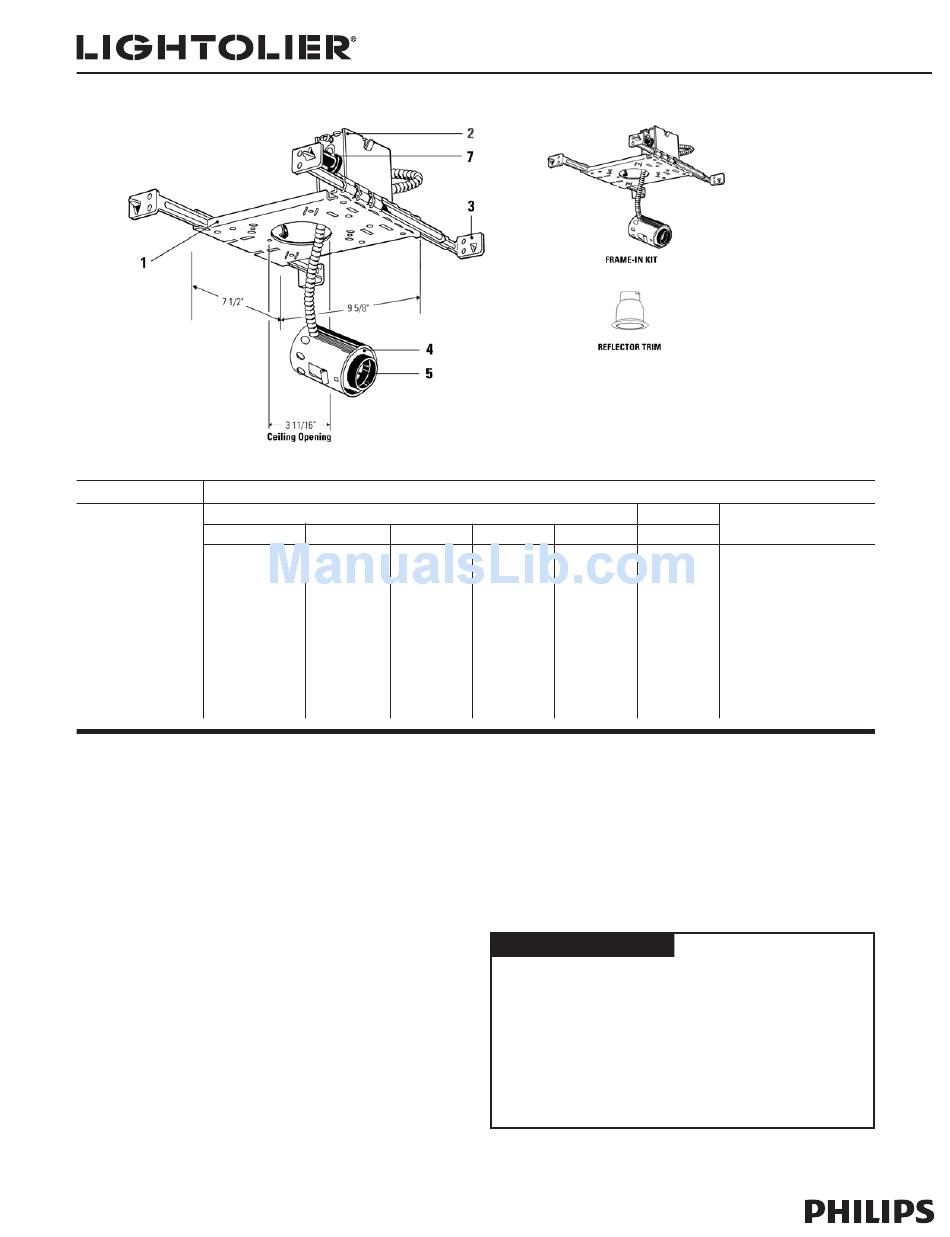

Lightolier Lytecaster 2000LVNT Specification

Page 1 of 1
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit
2000LVNT
Features
1. Mounting Frame: 0.036" galvanized steel. Accommodates all ceilings up
to1"thick. (Push-in/twist-out rotoclips hold reflector flush to ceiling.)
2. Junction Box: 4" x 3 1/2" x 2"; 0.063" galvanized steel. U.L. listed for;
maximum of 8 No. 12 ga. 90° C through branch circuit supply conductors
(75° C end of run). Integral cable clamps permit attachment of nonmetallic
Romex or armored cable without need of additional connectors.
®
3. MountingBars: 0.059"galvanized steel 13"long bars extend to 27" with
integral nailing tabs. Attaches to wood joist without need of accessories.
4. Socket Housing: Aluminum, with lamp adjustment assembly allows 35°
max. vertical, 358° horizontal adjustment.
5. Socket: Field replaceable. Two pin socket, pre-wired with #18 SF1 leads to
junction box.
6. Transformer: Frame-in Kit is provided without transformer. Transformer
must be provided by others. Lightolier Cat. #8608 or 8609 transformers may
be used. Frame-in Kit is rated at 50VA. Use only 12V. A.C. input.
7. Thermal Protector: Meets NEC and UL requirements. Insulation must be
kept 3" away from fixture sides and wiring compartments and must not be
placed above fixture in a manner which will entrap heat.
Dimming
Dimming Controls: Use only dimmers specifically designed for use with
transformers, like Lightolier Onset
Lightolier Controls dimming system. Low voltage fixtures may produce audible
sound when used with dimmers, which may be objectionable in acoustically criti-
cal areas.
Lightolier is a Philips group brand
Lytecaster
3 3/4" Aperture Low Voltage MR16 Remote Transformer Frame-In Kit
Reflector Trims — See Individual Reflector Trim Specification Sheets
Aperture Cone Satin Cone
2012 2008
2012NM 2008NM
2013BKNM 2010
2013CD 2010NM
2013CDNM
2013NM
2013BK
2013WH
2013
2013WD
2013WDP
, Sunrise series LV or VA dimmers, or any
® ®
Recessed Downlighting
®
Open Downlight
Baffles Slot Pinhole
2005 2006 2011
2005WH
2005BNM
2005NM

Options and Accessories

Mounting Bars:
T-Bar Ceiling Clips:
Plaster Ceiling Ring:
MR16 Socket Replacement:
Remote Transformer:
Labels
UL (Suitable for Damp Locations), I.B.E.W.
Romex is a registered trademark of General Cable Industries Inc.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • J1108
2000LVNT
Adjustable Enclosed
Mini Swivel Diffuser
2025WH 2090LV
2026WH
1964 - 20" set of (2)
1956 - set of (4)
1959 - 7/8" deep for wet plaster ceilings.
1975B
8608 or 8609
Type:
