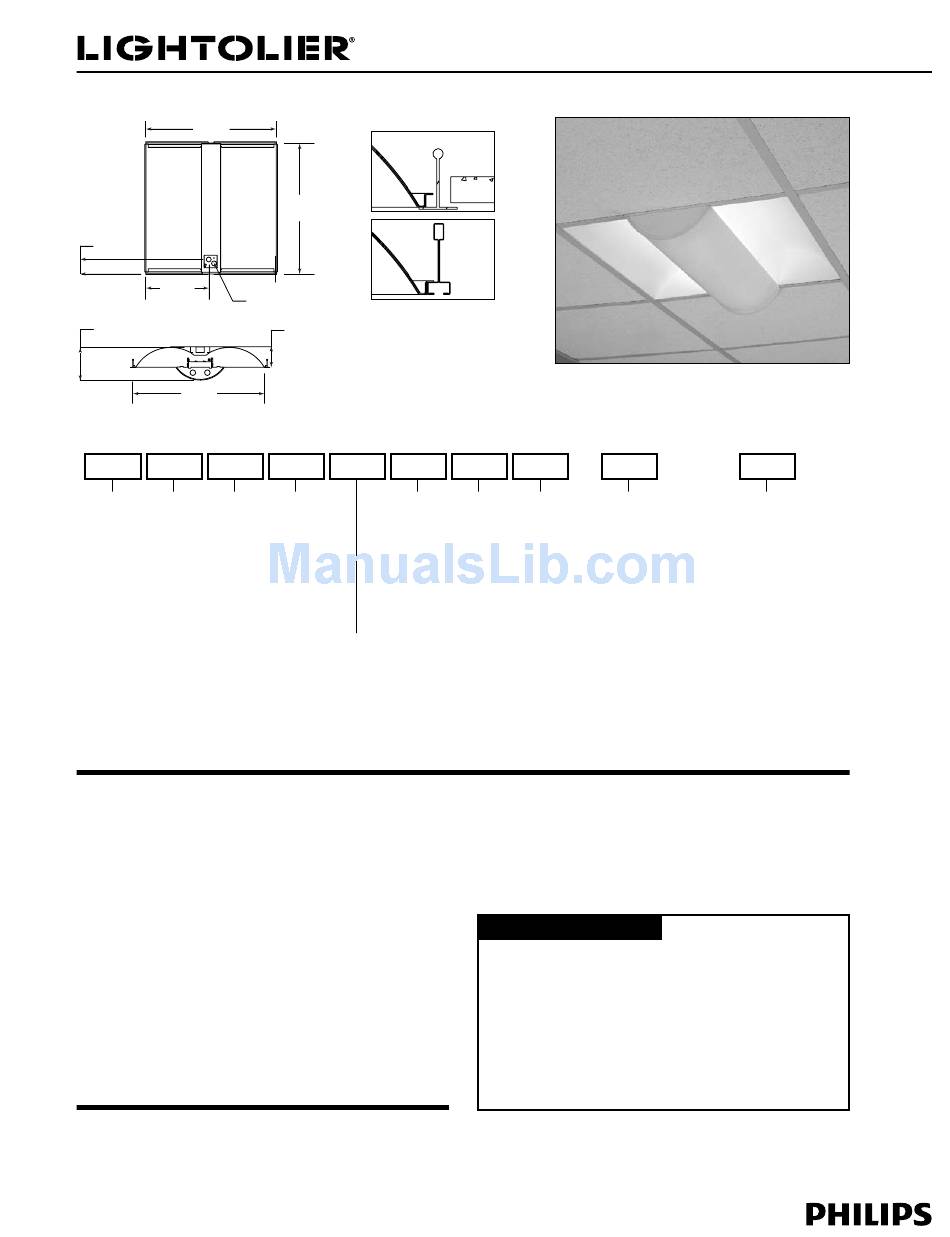

Lightolier Alter Concept SR T8 Specification

Page 1 of 2
23-3/4"
23-3/4"
(603mm)
(603mm)
2-11/16"
2-11/16"
(68mm)
(68mm)
11-7/16"
11-7/16"
(2) Ø7/8 " K.O.
(291mm)
(291mm) (2) Ø7/8 " K.O.
(22mm)
(22mm)
6"
6"
(152mm)
(152mm)
24"
24"
(610mm)
(610mm)
Ordering information
QCJ 2 G
Quality Luminaire Ceiling
Visual Width Type
Semi-recessed 2' G = Fits
direct indirect standard
soft light optical 15/16"
system T-grid
or Slot
T-grid
ceilings
s 3-lamp combination only available with one piece lamp shield
Features
• Efficiencies up to 68.6%
• Seamless welded form: curved top and side reflectors are formed together without
any gaps or visual barriers
• Painted after fabrication (PAF) luminaire
• Cost-effective T8 solution with shallow design, only 3-5/8" deep for easy installation
in shallow plenum
• One-piece swing-down microperforated lamp shield for easy relamping and
maintenance
• Alter soft white film on inside of mesh conceals lamp image providing balance
between reflected and direct light
• Semi-recessed luminaire and lamp compartment
• 95% Reflective Alter soft white paint finish
• One-piece body for easy installation
• Easy access to ballast through lamp compartment
• Not suitable for row mounting
• Fits standard 15/16" T-Grid, Slot T-Grid or drywall ceilings
Material
One piece chassis constructed from die formed 20 gauge cold rolled steel.
Reflectors - 95% reflectance baked white acrylic matte paint finish. Soft white acrylic
film on inside of lamp shield conceals lamp image.
Lightolier
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2008 Philips Group • QCJ2x2PFOP.pdf
Lightolier is a Philips group brand
Ceiling compatibility for G type luminaire
23-3/4"
23-3/4"
(603mm)
(603mm)
3-5/8"
3-5/8"
(92mm)
(92mm)
PF OP
Lamp Lamp
Shield Quantity
PF = Micro- 2 = 2 Lamp
perforated
3 = 3 Lamp
s
Lamp Shield Details
OP = One piece (no center slot) lamp shield
www.lightolier.com
Alter Concept SR T8
2' x 2' semi-recessed direct/indirect fluorescent
Suited to
standard
exposed
15/16"
T-grid
ceilings
Suited to
standard
exposed
Slot T-grid
ceilings
17
Lamp Voltage Ballast
Type
17 = 17WT8 uNv T8
SO = Electronic T8 Instant Start
347
(<20% THD)
RO = Electronic T8 Rapid Start
(<10% THD)
HI = Electronic T8 Instant Start
(<10% THD)
O3 = 3 Lamp Electronic T8
Instant Start (<20% THD)
H3 = 3 Lamp Electronic T8
Instant Start (<10% THD)
DA = Electronic T8 Program
Start (<10% THD)
Dali Digital
Addressable Dimming
For Dimming Ballast
Suffix, please consult your
Lightolier Representative.
Finish
Chassis exterior - phosphate undercoating, baked white acrylic matte high reflectance
paint finish.
Electrical
Thermally protected class "P" ballast. If K.Os are within 3" of ballast use wire suitable
for at least 90C. Suitable for damp location.
Labels
Listed by cCSAus.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Canlyte
3015 Louis-Amos, Lachine, Québec H8T 1C4 • (514) 636-0670 • (514) 636-0460
Options
F = Internal Fusing (Canada)
GLR = Internal Fusing (uSA)
FK92X2 = Drywall Kit for plaster
frames
EM* = T8 Emergency Lighting
System (uSA)
O* = T8 Emergency Lighting
System (Canada)
QvS-HD = Alter Hold Down Clips
(Std 15/16" only)
* All 2' x 2' luminaire using
Emergency Lighting System
are 5-1/2" deep
Type:
www.canlyte.com
