Catalog No.
Finishes
8430WH
Matte White
8430BK
Matte Black
8430AL
Aluminum
General Description

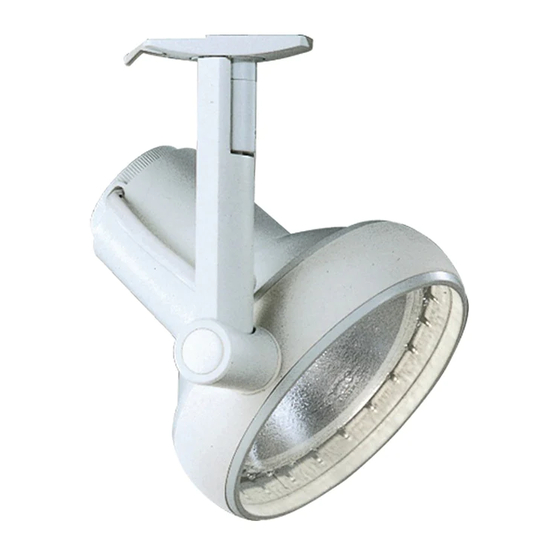

Die-cast spot fully encloses par lamp. Lightoliers unique "Cool-Grip
system incorporates a bold silicone rubber band which surrounds the lighting
element and allows you to aim the fixture even when hot. Solidly engineered
with vents for heat dissipation to ensure cool operation - front relamping for
easy maintenance.
Finish
All painted finishes baked enamel.
Electrical
Porcelain socket, medium base, nickel plated screw shell. No. 18 braided SF-1
leads with silicone sleeving.
Labels
UL, I.B.E.W., cUL
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • B0711
Mounting
Lamp
All Lytespan Track
PAR30 75W Max.
Systems
™
"aiming
Lytespan
Track Lighting
®
Accessories
Holder - 8473
Louver (Hex Cell) AL3HC
Beam Smoother AF3LF
Beam Elongator AF3AS
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
8430
Sof-Tech
Spot PAR30
®
Type:
