Lightolier STEM KIT Installation Manual

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE
This fixture is intended for installation in accordance with the National Electrical Code and local regulations.
To assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.
INSTALLATION OF STEM KIT TO CALCULITE
STEM KITS ARE SUITABLE FOR DAMP OR DRY LOCATIONS.

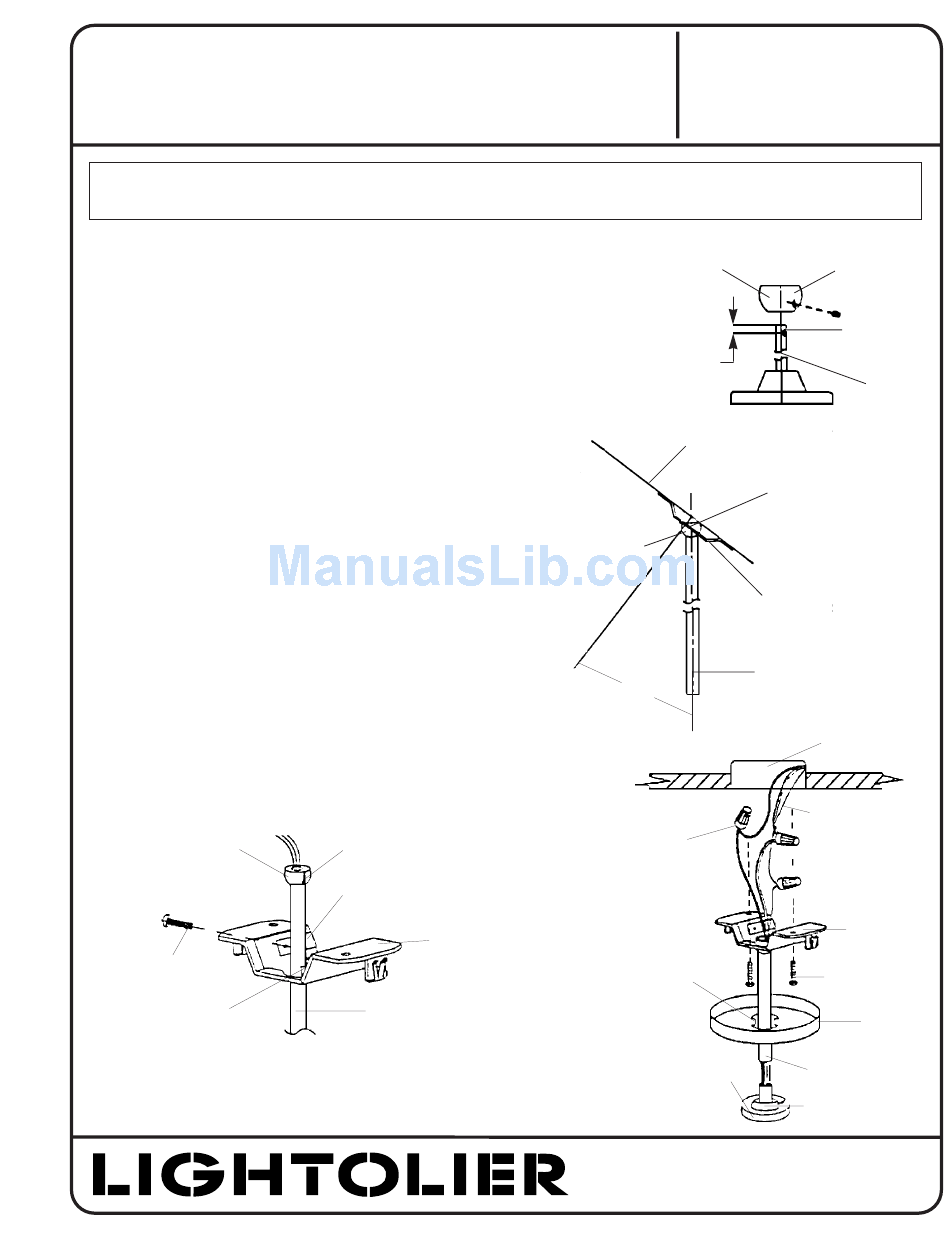

A. TO INSTALL STEM KIT ON CEILING

NOTE: STEM may be shortened by cutting STEM to desired
length. This must be done before hanging. Detach STEM from
STEM KIT by loosening SET SCREW from BALL SWIVEL. Be
sure that LEAD WIRES are completely out of STEM. Cut STEM,
then drill 1/8" diameter hole through the STEM 3/16" from
end. Be certain to deburr after cutting or slotting. (Fig. 1) (A
slot made with a file or hacksaw will also work.) Reassemble
STEM and BALL SWIVEL.
1. Bring SUPPLY LEAD WIRES from the OUTLET BOX through
the center hole of the MOUNTING STRAP. For sloped ceil-
ings, position opening in MOUNTING STRAP facing upward,
then thread SCREWS through MOUNTING STRAP to OUTLET
BOX. (Fig. 2 & 3)
2. Slide CANOPY down STEM to rest on STEM JOINT. (Fig. 3)
3. Hook BALL SWIVEL on MOUNTING STRAP. Make sure
GROOVE in BALL SWIVEL aligns with TAB in MOUNTING
STRAP. (Fig. 4)
4. Slide SAFETY CLIP to MOUNTING STRAP and tighten
SCREW. (Fig. 4)
5. Make electrical connections: connect FIXTURE GROUND to
the ELECTRICAL SYSTEM GROUND. WHITE FIXTURE LEAD
or LEAD WITH TRACER MARK to WHITE SUPPLY WIRE.
BLACK FIXTURE LEAD or FIXTURE LEAD WITHOUT TRACER
MARK to BLACK SUPPLY LEAD, with WIRE NUTS (provided).
Push all splice connections into OUTLET BOX.
6. Align TABS in CANOPY with notches in MOUNTING STRAP.
Slide CANOPY up over MOUNTING STRAP and push up
against ceiling. (Fig. 3)
