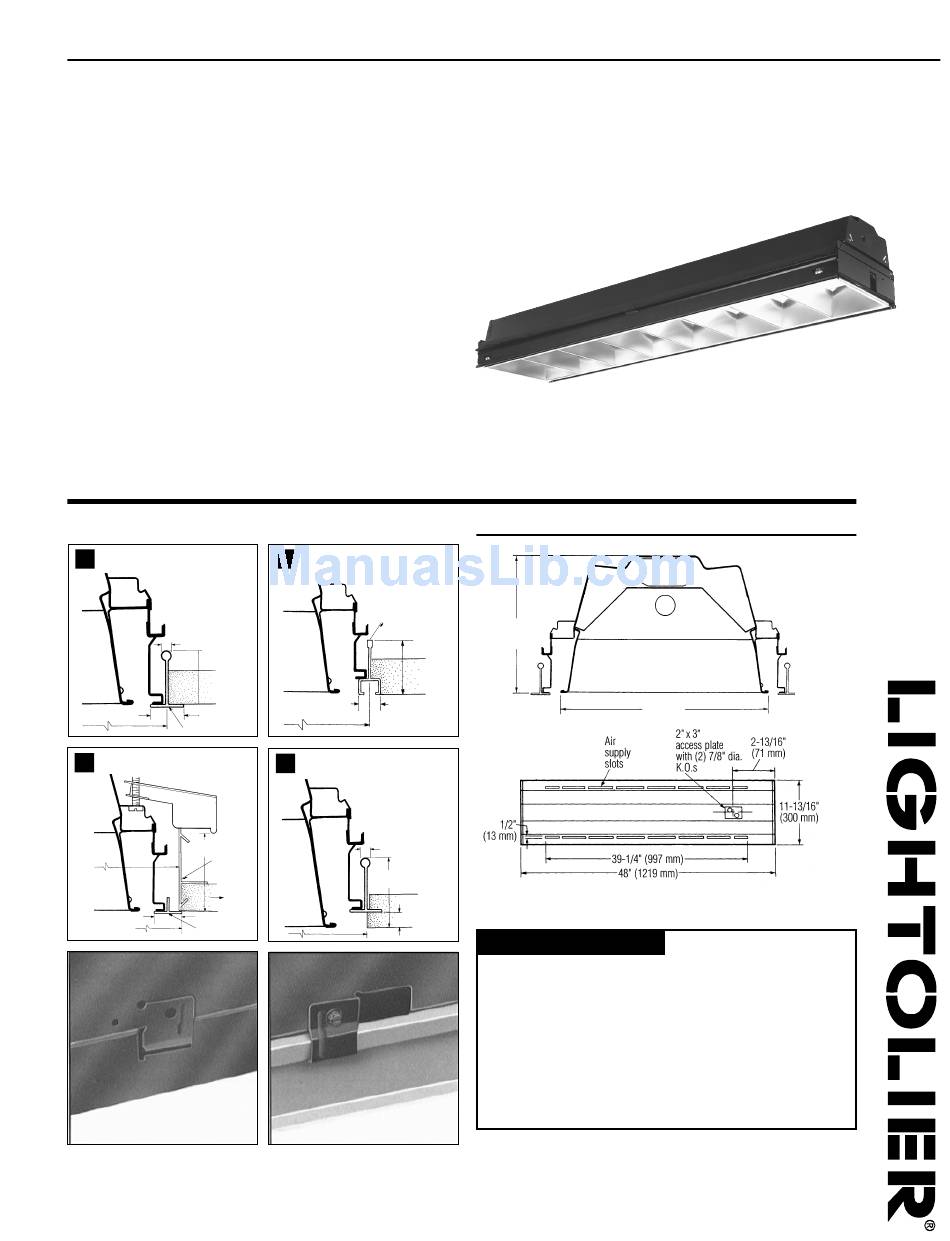

Lightolier STA 1'x4' 1 LAMP Specification

Page 1 of 2
Features
• Excellent for lighting library bookshelves, 97.5% of fixtures distribu-
tion is in the 0°-60° zone.
• Meets IES RP1 for lighting VDT areas with normal use.
• 73.3% efficient (T8 - 8 cell).
• Semi-specular low iridescence pre-anodized louver.
• Vertical grain on louver eliminates reflected lamp image on cross
baffle.
• Louver frame with integral positive light stop.
• Spring loaded latches (self centering).
• Louver has protective dust guard.
• Black housing exterior for cooler ballast operating temperature.
• Turned-in edges for safe handling.
• Built-in earthquake clip.
• UL-Listed twin knockout access plate.
• Air closure strips (optional).
• Construction to meet NYC Code or Chicago Plenum is available.
MOUNTING METHODS
exposed T-grid ceiling.
G
1/4" max.
Acoustical
material
by others
9/16" to 1"
Exposed T-bar
12"
by others
plaster ceiling/flanged.
F
1-1/8" min
Plaster 3-3/4" max.
Opening Plaster frame
must be
12-1/8"
ordered
separately
Plaster
by others
13/16"
Aluminum
12-11/16"
flange trim
earthquake clip
before
installation
STACKLYTE
1'x4' RECESSED FLUORESCENT, 3" DEEP, 8 OR 12 CELL PARABOLIC LOUVER
STATIC OR AIR SUPPLY/RETURN, IES RP1 FOR NORMAL VDT USE
exposed slot T-grid ceiling.
T
Exposed slot
T-bar by others
1-1/2" max.
Acoustical
material
by others
9/16"
12"
direct concealed two directional T-
T
grid ceiling.
1/4" max.
1-7/8"
max.
Acoustical
material
by others
3/8"
12"
earthquake clip
installed
STA 1'x4' 1 LAMP
DIMENSIONS
6-5/8"
(168mm)
(305mm)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte Thomas Company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division)
A0902
12"
Type:
www.lightolier.com
Section 2/Folio G40-14 REV. A
