Lightolier Calculite Matrix 9X9PL Specification

Page 1 of 2
7
5 1/2"
Ceiling Cutout: 9 5/8" L X 9 5/8" W
Trim Kits
Reflector
Finish / Flange
Trims
9X9PLCLW Specular Clear / White
9X9PLCLP Specular Clear / Polished
9X9PLCCLW Comfort Clear / White
9X9PLCCLP Comfort Clear / Polished
9X9PLCCDW Comfort Clear Diff. / White
9X9PLCCDP Comfort Clear Diff. / Polished
9X9PLCCGP Clear Corrugated / Self Flange
9X9PLWHW White / White

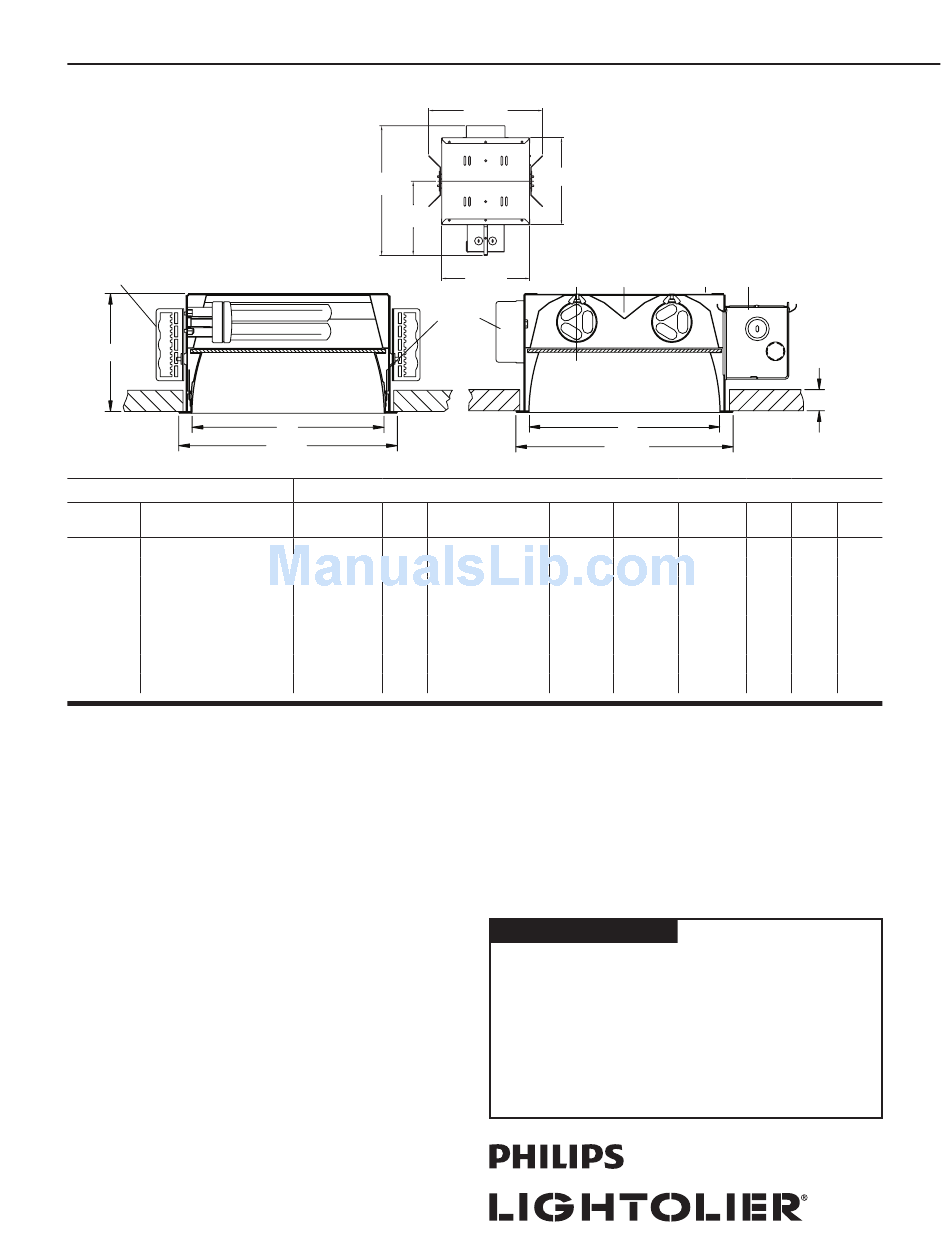

Features
1. Reflector Trim: Pre-finished aluminum with low iridescence clear finish.
Overlap flange accommodates different ceiling types. Precision mitered
flange corners. Prismatic spread lens, 5/32" thick tempered glass.
2. Upper Reflector: High efficiency, 97%, Specular Clear.
3. Housing: 20 ga. galvanized formed steel. Centerline notches and holes
for consistent alignment of multiple fixtures. Accomodates ceilings up to
1 1/4" thick.
4. Ballast Assembly: Door-mounted for easy service, allows replacement from
inside of fixture.
5. Torsiontite Springs: Precision-tooled steel springs secure reflector trim
to housing for quick tool-less installation. Positive tension holds flange tight
against ceiling.
6. J-Box: 14 ga. galvanized steel. Accessible from inside and outside of the
fixture. Outside J-box door is hinged for easy access.
7. Mounting Brackets: 16 ga. steel. Adjustable from inside fixture. Utilize 3/4"
or 1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
Options & Accessories
Chicago Plenum with Fuse (slow blow): add LCF suffix to frame-in kit, con-
sult factory for specifications.
Emergency: add EM suffix to frame-in kit, consult factory for specifications.
Mounting Bars / T-Bar Anchor Clips: See specification sheet "MBA".
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • C1009
Calculite
9" X 9" Square Aperture (2) 26W Quad / 32/42W Triple Tube Prismatic Lens
14 1/8"
8 1/8"
5
9"
10 1/4"
Frame-In Kits
Frame-In Kits Type Ballast
9X9242HU Non-IC Electronic
9X9242HUEM Non-IC Electronic - Emergency 120/277V
9X9242HJUM7 Non-IC Mark 7
9X9242HJ1MX Non-IC Mark 10
9X9242HJ2MX Non-IC Mark 10
Matrix Lensed Downlight
® ®
12 3/8"
9 9/16" Top View
1 2
9 9/16"
4
9"
10 1/4"
Input Quad Tube
Voltage Wattage
120/277V (2) 26W
(2) 26W
® Dimming 120/277V
Dimming 120V
®
Dimming 277V
®
Electrical
UL Listed for through circuit wiring with max of (8) No. 12 AWG, 90° C
supply conductors.
Note: For complete ballast data and lamp / ballast compatibility refer to
"Ballast" specification sheet.
General
UL listed for wet locations, I.B.E.W. Union Made.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
9X9PL
3 6
1 1/4" Max.
Ceiling Thickness
Triple Tube
Length Width Height
Wattage
(2) 32/42W 12 1/2" 14" 5 3/4"
(2) 32/42W 12 1/2" 15 3/4" 5 3/4"
(2) 32/42W 12 1/2" 13 3/4" 5 3/4"
(2) 32/42W 12 1/2" 13 1/2" 5 3/4"
(2) 32/42W 12 1/2" 13 1/2" 5 3/4"
Type:
