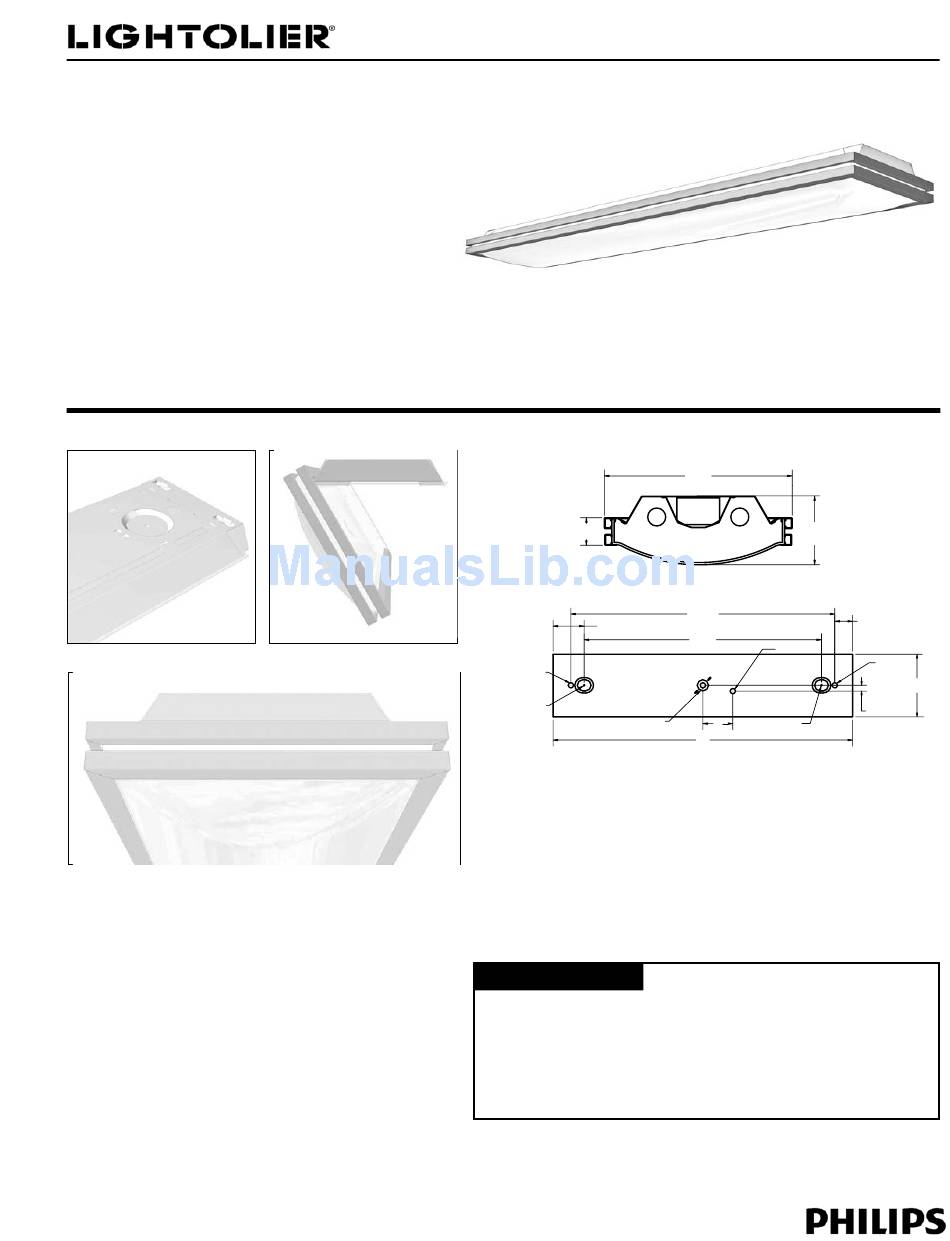

Lightolier BESF1X4 Specification

Page 1 of 2
Features
• Excellent for lighting Cafeterias, Small Offices, Corridors,
Kitchens and Family Rooms.
• Unique rectangular double frame creates uninterrupted spill
of light from all four sides.
• Extruded Aluminum Frame with mitered corners.
• 1/8" thick white acrylic lens containing 25% DR.
• Only 3-3/4" total depth.
• Step back housing for an apparent depth of 1-1/2".
• 64.1% efficient (2 lamp T8)
• Lens opens and hinges from either side.
• Zip-clip flush mount on T-grid ceilings.
• Off-center 7/8" K.O. for flush mount to T-grid ceiling.
Features
Offset ballast mounting and 7/8¨ knockouts
Unique rectangular double frame creates uninterrupted spill of light from all
four sides.
Lightolier is a Philips group brand
Lens hinges from either side of housing
Belmont Spill Frame
10-1/2" Wide, 50" Length, 2 Lamp T8
Dimensions
1 1/2"
(38mm)
5 3/16"
(132mm)
7/8" KO
9/32" MOUNTING
HOLES
7/8" KO WITHIN
1 7/8" KO
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
For Factory Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 a Philips Group
BESF1X4
Architectural Surface Fluorescent
10 1/2"
(267mm)
3 3/4"
(95mm)
44 1/16"
(1119mm)
39 5/8"
(1006mm)
7/8" KO
5"
9/32" MOUNTING
(127mm)
HOLE
50"
(1270mm)
Type:
Section 3A/Folio H10-10 Rev. A
2 31/32 "
(75mm)
7/8" KO
10 1/2"
(267mm)
31/32 " (25mm)
02/09
