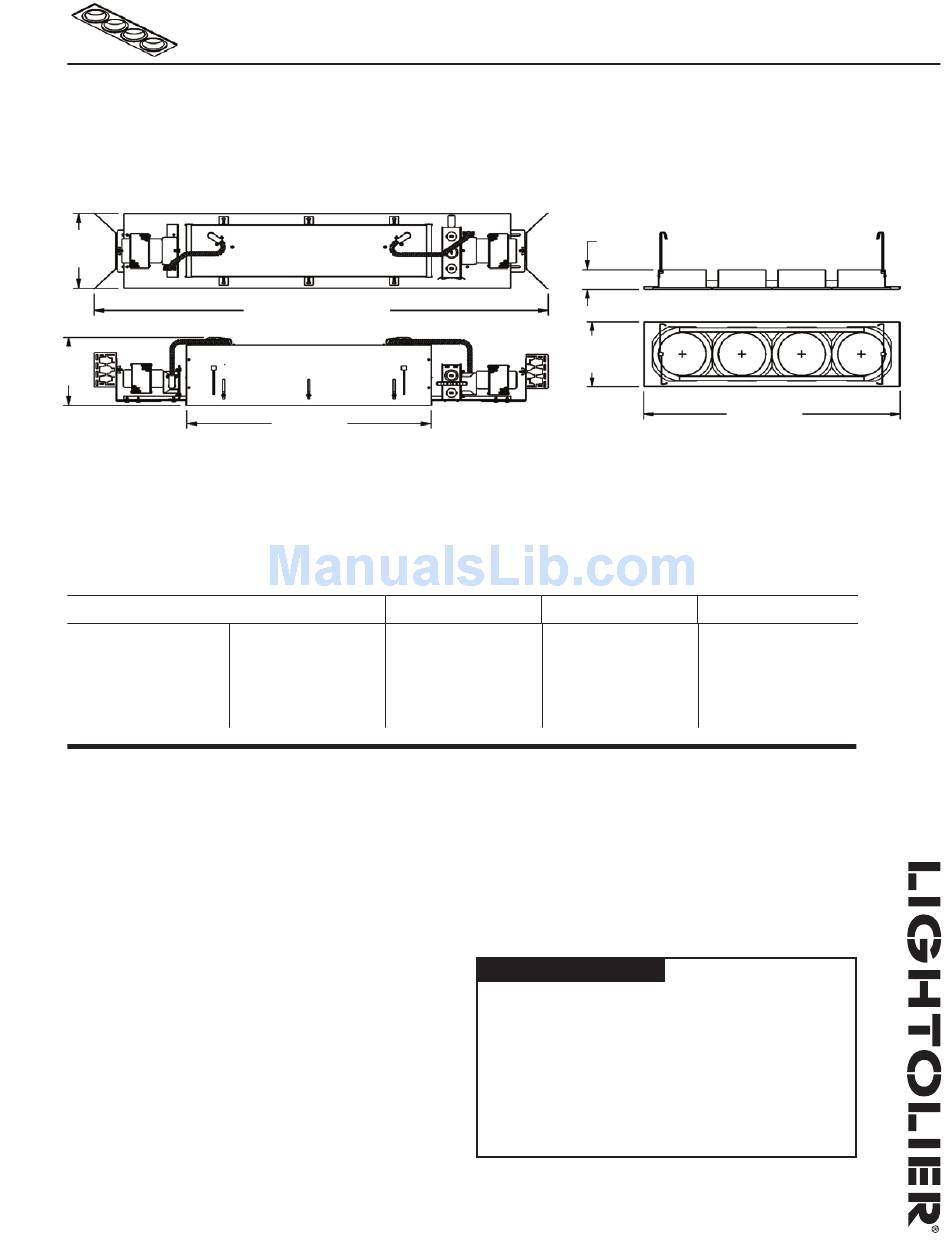

Lightolier Lytecaster 604MR Specification

Page 1 of 1 Recessed Linear Low Voltage 4 x MR16
7 3/8"
6 3/4"
Complete fixture consists of Reflector Trim (4 needed), Frame-in Kit and Face Plate. Select each separately
Reflector Trim
404X series
405X series
406X series
409X series
413X series
478X series
Features
1. Housing / Plate: Die-formed 20 ga. steel ; Black painted finish.
Accommodates all ceilings up to 2" (51mm) thick. Adjustable from inside.
Concealed wiring channel.
2. Face Plate: Die-formed 20 ga. steel; White painted finish. Inner
Mounting ring welded to plate to accept 400 series trims. 1/4"
(7mm) lip all around.
3. Torsiontite Springs: For easy installation of faceplate. Insures that
faceplate edges are snug to ceiling.
4. Junction Box: 14 ga. steel, 5" (127mm) x 3-1/2" (89mm) x 1 1/2" (38mm)
deep box, allows inspection from below. CSA, US certified for through branch
circuit wiring with maximum of 8 (#12ga.), 90º C conductors.
5. Transformer: Magnetic 150VA (Class "B") and 75VA (Class "H"),
120/277/347 volt primary, nominal 12 volt secondary.
6. Thermal Protector: Meets CSA/UL requirements. Insulation, if used,
must be kept 3" away from luminaire sides and junction box. Do not cover
top of luminaire.
7. Socket: Porcelain body; Two-pin (GX5.3 base) Pre-wired with 18 ga.
Teflon 250º leads to junction box.
Markings
CSA,US ; Certified for damp locations.
Lytecaster Recessed Downlighting
Frame-In Kit
MAX: 42 1/2"
MIN: 40 1/2"
22"
Frame-In Kit
604MR120
Alzak Cones
604MR277
Painted Baffles
Eyeball
Pinhole
Gimbal
Elbow
Ceiling Opening: 5 3/8" (137mm) x 22 1/4" (567mm)
2"
6 3/4"
Face Plate
604WH
Accessories
1950 - 18" Mounting Bar
1951- 31" Mounting Bar
FA10251-WH - Replacement Spacer Ring
Note
Magnetic transformers may produce audible sound which may be
objectionable in acoustically critical areas. The use of dimmers can further
amplify the sound levels.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • E0711
604MR
Face Plate
24 7/16"
Lamp
4 x 75W MR16
4 x 75W MR16
4 x 75W MR16
4 x 65W MR16
4 x 75W MR16
4 x 75W MR16
Type:
www.lightolier.com
