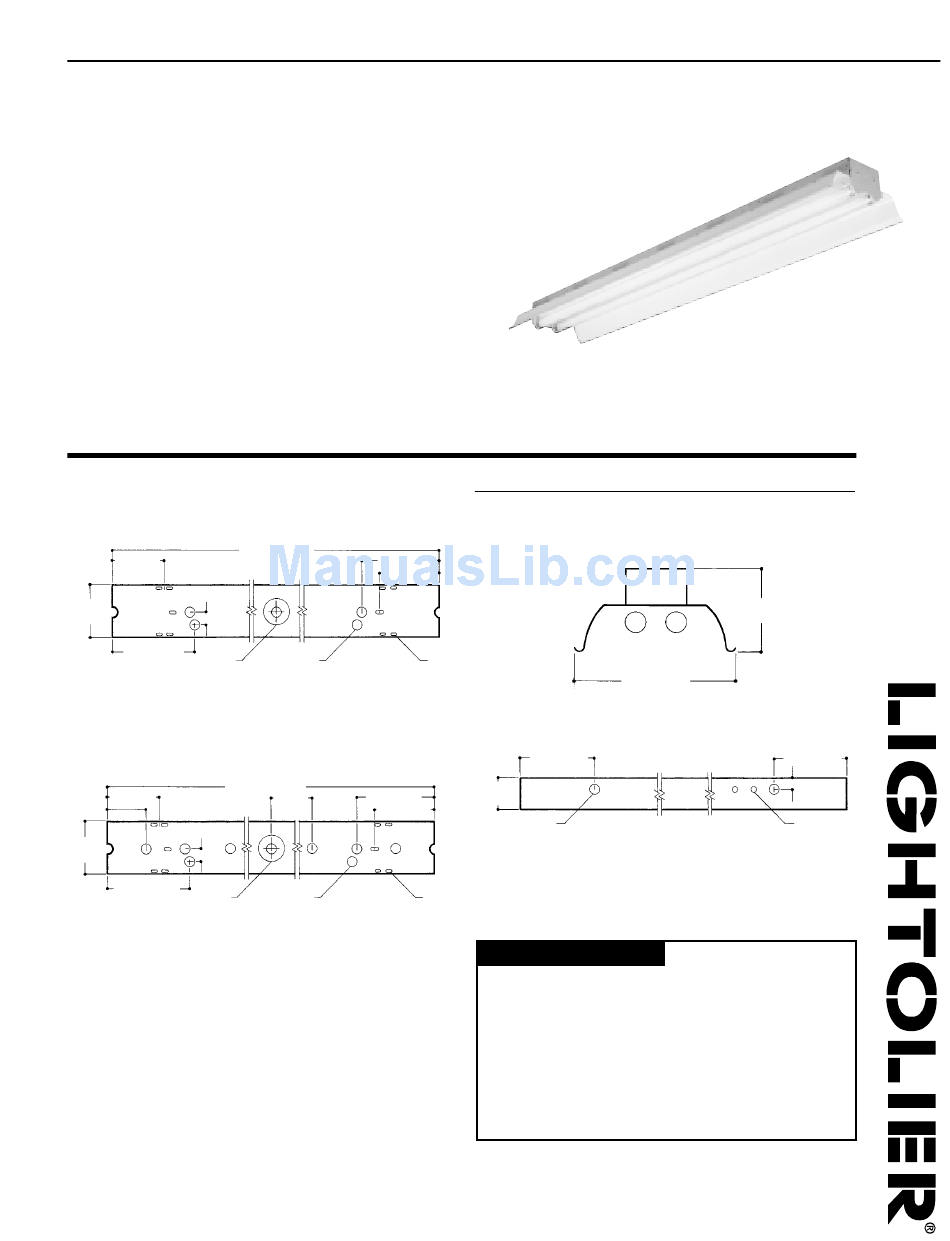

Lightolier KD SERIES HO Specification

KD Industrial HO/VO Solid Top Fluorescent
Page 1 of 2
Features
• Reflectors are embossed for rigidity.
• Reflector sides are turned up for rigidity and safe handling.
• Solid top reflector, standard.
• 10% aperture reflector, optional.
• Reflectors easily installed with quarter turn fasteners. No tools
required.
• 4-1/8" wide heavy duty channel of code gauge die-formed steel.
• Combination end cap/coupler requires no tools for installation.
• Suitable for individual or row mounting.
• Fully enclosed wiring.
• Multiple knockouts for convenient installation.
• Optional hangers, wire guards and aligners.
• Optional heavy duty coupling.
4" (102mm)
4-1/8"
1-1/8"
(105mm)
(29mm)
6-3/8" (162mm)
2" Dia.K.O. with
7/8"Dia.K.O.
96" (2438mm)
4" (102mm)
3-1/16"
(78mm)
4-1/8"
(105mm) 1-1/8"
(29mm)
6-3/8" (162mm)
2" Dia.K.O. with
7/8"Dia.K.O.
4-1/8" Wide x 48" or 96" Lengths, Solid Top, 2 Lamp T8 or T12 HO or VHO
48" (1219mm)
6" (152mm)
4-5/8"(117mm)
7/8"Dia.K.O. (4)
S Hook
K.O. (8)
4' CHANNEL
6" (152mm)
24"
4-5/8" (117mm)
(610mm)
7/8"Dia.K.O. (8)
S Hook
K.O. (8)
8' CHANNEL
KD SERIES HO/VO
Dimensions
10-1/2" (267mm)
5-7/8"(149mm)
2-3/4"
(70mm)
7/8" Dia.K.O. (4)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte Thomas Company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
Copyright 2002 Lightolier
5-1/2"
(140mm)
5-7/8"(149mm)
7/8"(22mm)
1/2"
Dia.K.O. (2)
SIDE VIEW
Type:
www.lightolier.com
Section 7/Folio Q70-52
