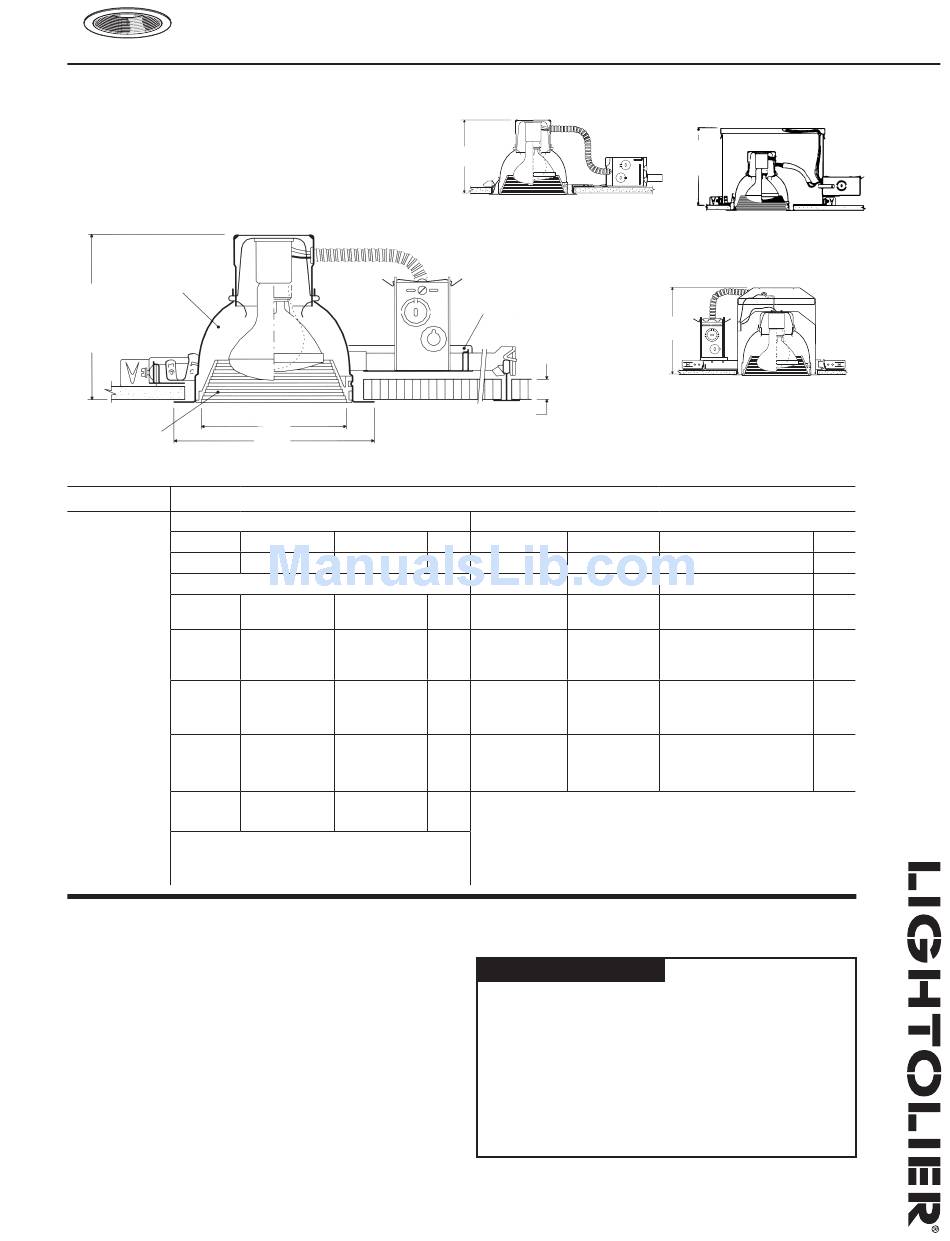

Lightolier Lytecaster 1179M1 Specification

Page 1 of 2
1
6 3/8"
2
Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets
Frame-In Kit Installation Type
L56LED Non-IC Retrofit
1102P1
Non-IC
1103R
Non-IC Remodeler
1100IC IC
1100AICM AirSeal
1104ICX/N
AirSeal
1179M1
Matte Black Baffle 1104IC/N** AirSeal
1179WH 1104ICR** IC Remodeler
Perma White Baffle
1104IC/N** Non-IC
1104ICR** Non-IC Remodeler
1100DAICM Deep AirSeal
1100DICM Deep IC
* Use socket extender 1968 for short neck PAR30 lamp.
** PAR38 use only with Frame-In Kits indicated
Features
1. Reflector: Hydroformed aluminum, .040" thick (18 ga.) ; non-yellowing,
scruff-resistant Perma White finish with 88% reflectance; white trim flange.
2. Step Baffle: Molded high temperature phenolic. Stepped conical surface for
low brightness; matte black or gloss white finish.
3. Frame-In Kit: (1102P1 standard frame shown). Other frames listed above
and shown on the right. See Frame-In Kit specification sheets for more
details.
Options & Accessories
Par30 Socket Extender: 1968 - for short neck Par30 lamp
Spread Lens: L56WWLENS - Proprietary spread lens for use with
combination of wall washer optics and LED Frame-In Kits.
Labels
UL (Suitable for Damp Locations), I.B.E.W.
Lytecaster
5 1/2"
1179M1/1102P1
7 9/16"
Standard Incandescent
LED
Lamping Height
LED 6 3/8"
Incandescent
75W A19, PAR30* 6 3/8"
85W BR30 6 3/8"
75W PAR30 7 5/16"
IC 85W BR30 7 5/16"
®
IC 7 1/4"
®
IC 90W PAR38** 7 1/2"
®
75W PAR30 7 1/2"
85W BR30
75W PAR30* 7 1/2"
85W BR30 7 1/2"
90W PAR38
IC 75W PAR30* 9 1/4"
®
85W BR30 9 1/4"
Recessed Downlighting
®
6 3/4" Aperture Basic Baffle Reflector Trim
6 3/8"
1179M1/1103R
0
Non-IC
™
Remodeler Ring
3
3/4" Max.
Fluorescent
Frame-In Kit Installation Type
1104F13 Series IC
1104F18 Series IC
†
1100FTU Series
Non-IC
1100AICMFT AirSeal -IC
®
1910XDH1
Conversion Kit
1910XFH1 Conversion Kit
Lightolier recommends the use of triple tube lamps.
†
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • H0711
1179M1
9 1/4"
1179M1/1100 DEEP IC Series
Incandescent Insulated Ceiling
7 1/2"
1179M1/1104IC/N
0
™ Convertible
IC/Non-IC
Lamping Height
(1) Quad/Triple 13W (GX24q-1) 7 1/2"
(1) Quad/Triple 18W (GX24q-2) 7 1/2"
6 7/8"
(1) Triple 26/32W (GX24q-3)
6 7/8"
(1) Triple 26/32W (GX24q-3)
(2) Quad 13W (GX23-2) 6 7/8"
(1) Quad 13W (GX23-2) 6 7/8"
Type:
www.lightolier.com
