Lightolier Calculite S6132BUES Specification

Calculite Compact Fluorescent Recessed Downlighting
®
Page 1 of 1

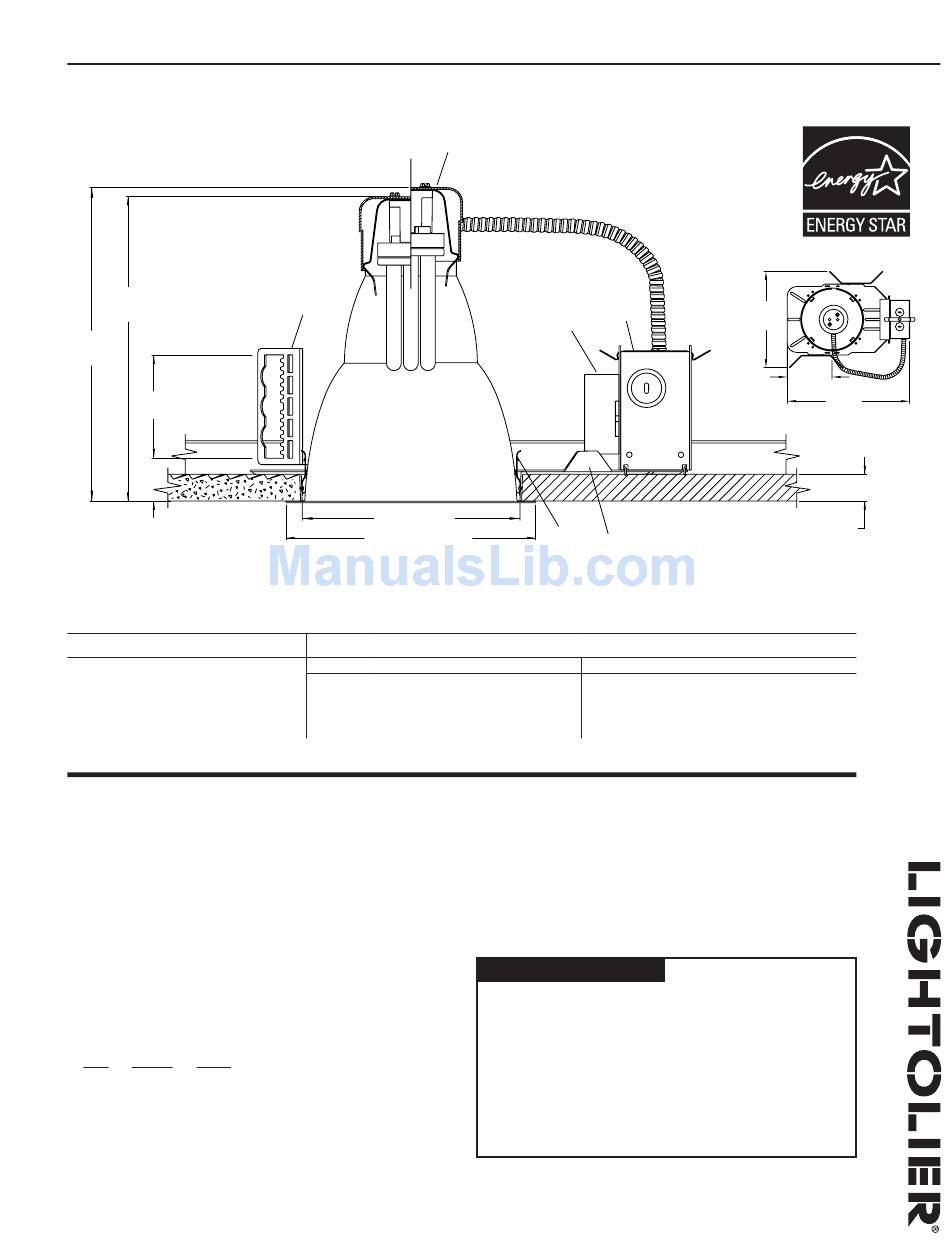

26W 9 3/8"
(238mm)
32W 9 7/8"
(251mm)
3"
(76mm)
Vertical Adjustment
1 1/4" (32mm)
2 1/4" (57mm) Max.
Ceiling Cutout: 6 9/16" (167 mm) Dia.
Frame-In Kit
S6132BUES Electronic 120V
26 or 32W Triple Tube
4-Pin (Amalgam)

Features

1. Socket Cup: Snaps onto reflector neck to assure consistently correct optical
alignment without tools.
2. Mounting Frame: Galvanized stamped steel for dry or plaster ceilings.
3. Retaining Springs: Precision-tooled steel friction springs secure reflector to
mounting frame for quick, tool-less installation.
4. Mounting Brackets: Galvanized steel. Adjust from inside of fixture. Use
3/4" or 1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
5. J-Box: UL listed for through branch circuit wiring with max of (8) No. 12
AWG, 90°C supply conductors.
6. Ballast: 120V, electronic, rapid-start, high power factor, Class "P" thermally
protected, end of lamp life and transient protection, THD <10%, FCC Class
"B" consumer limits, Class "A" sound rating. Type 1 Outdoor. Min. starting
temperature 0°F/-18°C. Outboard mounted to reduce heat transfer and
maintain lamp efficacy and life. Service from below without tools.
Input
Lamp Wattage Current
26W 29 0.24A
32W 36 0.31A
1
4
6" (152mm) Dia.
7 1/4" (184mm) Overlap
8021CCLW Shown
Compatible Reflector Trims
Downlights*
8021 Open, Vertical Lamping
8031 Open, Horizontal Lamping
8091 Lensed, Horizontal Lamping
8091CB Cross Blade, Horizontal Lamping
*See individual Reflector Trim specification sheets for finishes and additional information
Options & Accessories
Emergency Lighting Frame-In Kit: Consult factory.
Mounting Bars:
T-Bar Anchor Clips:
Labels
UL listed for damp locations; Energy Star/California Title 24.
6" Aperture Type Non-IC Triple Tube Frame-In Kit
5
6
3
2
Wall Washer*
8021WW Open, Vertical Lamping
8081 Open, Horizontal Lamping
8046 Lensed
1950 - 18" Set of (2)
1951 - 27" Set of (2)
1956 - Set of (4), for use with above

Job Information

Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0705
