Delete Antenna; Radiation Pattern Repository - 3Com 3CWXPGS - AirProtect RF Planning Tool User Manual

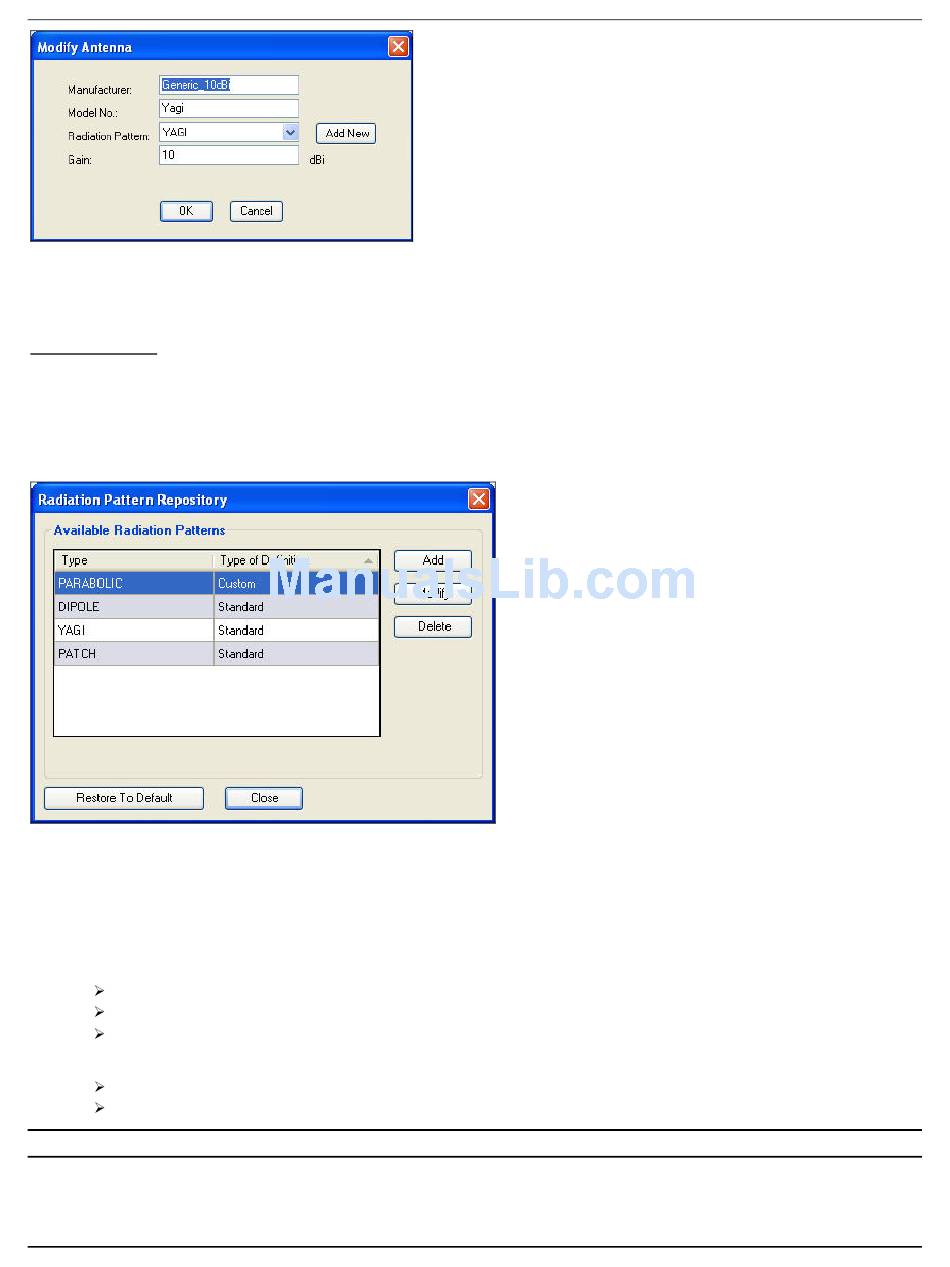

Figure 50. Antenna Repository – Modifying an Antenna
The Modify Antenna dialog box is similar to the Add Antenna dialog box.
Delete Antenna
Click <Delete> and confirm the deletion of the antenna.
5.5.4 Radiation Pattern Repository
You can create custom defined radiation patterns where you can define the gain at each angle starting from 0° to 359°.
Select Radiation Pattern Repository from the Tools menu.
Figure 51. Tools Menu – Radiation Pattern Repository
The Radiation Pattern Repository dialog box displays a list of available radiation patterns, their type, max gain, and type of
definition.
You can do the following:
•
In case of a Custom Radiation Patterns:
Add a Radiation Pattern
Modify/View a Radiation Pattern
Delete a Radiation Pattern
•
In case of a Standard Radiation Pattern:
Add a Radiation Pattern
View a Radiation Pattern
Note: The Delete option is disabled in case of Standard Radiation Patterns.
