Tolerance: Specify the tolerance in the range of 1 to 20. For example, if you click the mouse 20 pixels away from the
declared tolerance value, the cursor will select the device.
•
Angular Line Settings: Default Width: Specify the desired width to draw all angular lines.
•
Hollow Object Settings: Default Thickness: Specify the desired thickness to draw all hollow objects.
8.2.2 Preferences: AP Views
Go to Settings Preferences AP Views, the AP Views tab appears.

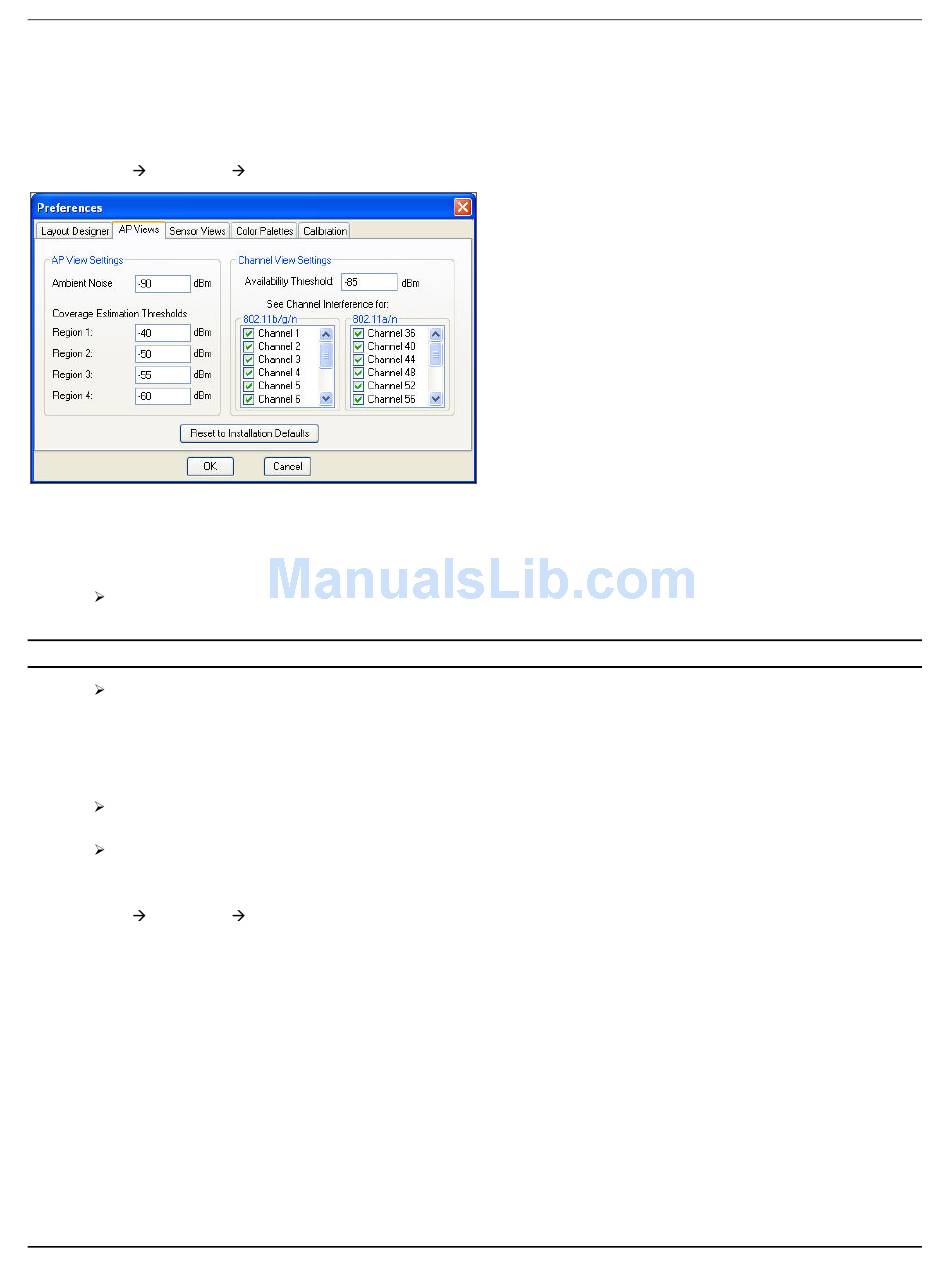

Figure 130. Preferences – AP Views
The screen allows you to define AP and Channel views settings:
•
AP View Settings
Ambient Noise: Specify a value to calculate the SINR value with respect to the total channel interference across
the layout.
Recommended: Do not change the Ambient Noise values unless you are very sure of the environment properties.
Coverage Estimation Thresholds: Specify the threshold for the coverage outlines shown for APs while dragging
those on the layout. Enter the values in the range ‐100 to ‐10 dBm. Planner shows the areas covered in the form of
concentric spheres, depending upon the values specified for the regions. You can have a maximum of four
separate regions. Planner assumes an Omni‐directional antenna in this case.
•
Channel View Settings
Availability Threshold: Define a threshold value for the Channel View. Planner does not consider a signal below
this value, while calculating the channel at a location. The value should be in the range ‐150 to ‐20.
See Channel Interference for: Allows you to view channel interference for the selected channels.
8.2.3 Preferences: Sensor Views
Go to Settings Preferences Sensor Views, the Sensor Views tab appears.
