Auto Device Placement
Auto Channel Allocation
•
Capacity Estimation
•
Support of AutoCAD files for site modeling.
2.6 Working of Planner
Perform the following steps for WLAN Planning using Planner:
1 Installing
2 Launching
3 Designing a Layout
4 Planning WLAN for security, coverage, and speed
5 Setting various protocols, filters, and advanced parameters for accurate RF views
6 Generating a BoM and reports
2.7 Planner: Workflow
Planner helps you plan the entire WLAN with minimal input from the customer. The input to Planner is a layout image in any
graphical format or a valid AutoCAD file. You can create a model of the deployment space by placing objects such as walls,
windows, doors, furniture, and open spaces onto the layout as depicted below.

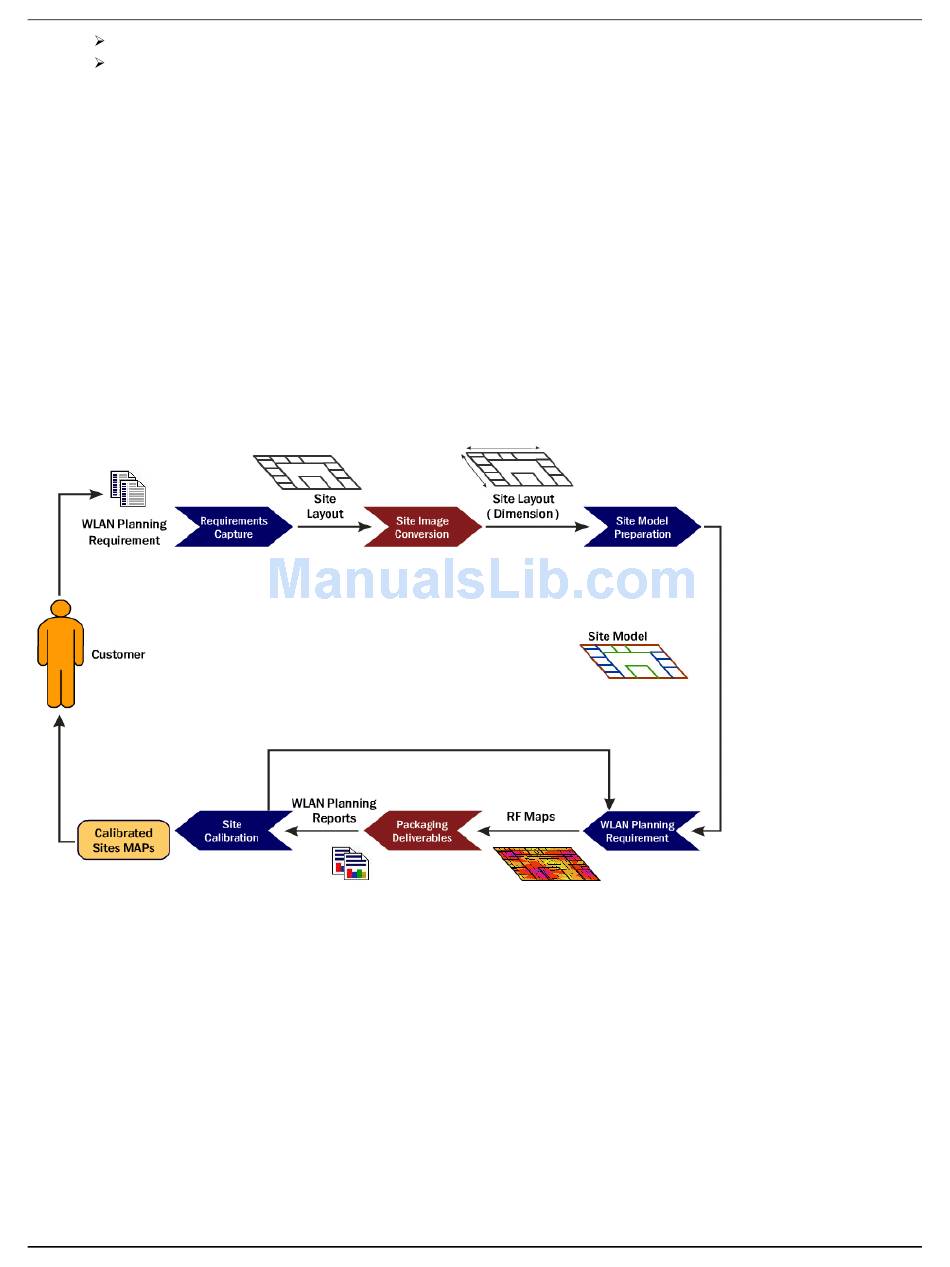

Figure 1. Planner Workflow
4
Introduction to WLAN Planning and Planner
3Com ® AirProtect Planner User Guide
