Lightolier C6TCAD Instructions For Maintenance Reference

Calculite evolution 6 inch aperture thick ceiling adapter ring

Advertisement

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING ACCESSORY
This accessory is intended for installation in accordance with the National Electrical Code and local regulations.
To assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electric shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.

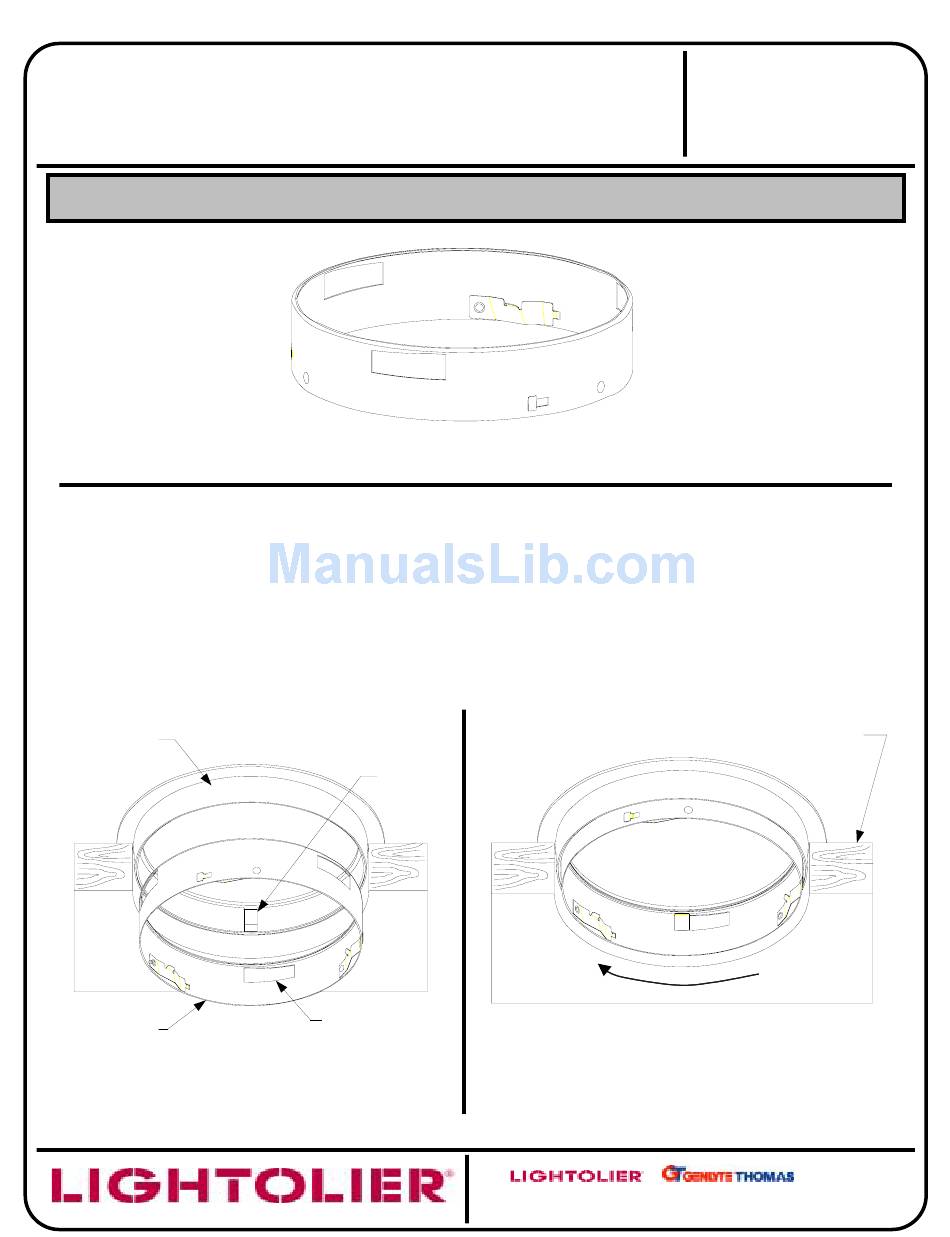

INSTALLATION PROCEDURE FOR C6TCAD CALCULITE EVOLUTION

Installation Instructions:

Align largest opening of SLOT DETAILS with SPRINGS as shown in Fig. 2.
1 .
Push ADAPTER RING straight up into APERTURE RING (supplied with FIK) until SPRINGS fully engage
2 .
SLOT DETAILS.
Rotate ADAPTER RING in direction shown (Fig. 3) to lock firmly in place.
3 .
Install appropriate reflector trim in the usual fashion. Refer to reflector trim instruction sheet for installation,
4 .
wiring, and lamping information.
APERTURE RING
ADAPTER RING
6 INCH APERTURE THICK CEILING ADAPTER RING
SPRING
SLOT DETAIL
FIG. 2
FIG. 1
Direction of rotation
631 Airport Road, Fall River, MA 02720
INSTRUCTION SHEET NO.
IS:C6TCAD
A0502
C6TCAD
6" Aperture
Thick Ceiling Adapter
Downlight Style
CEILING
to lock
FIG. 3
A
COMPANY
Page 1 of 1
