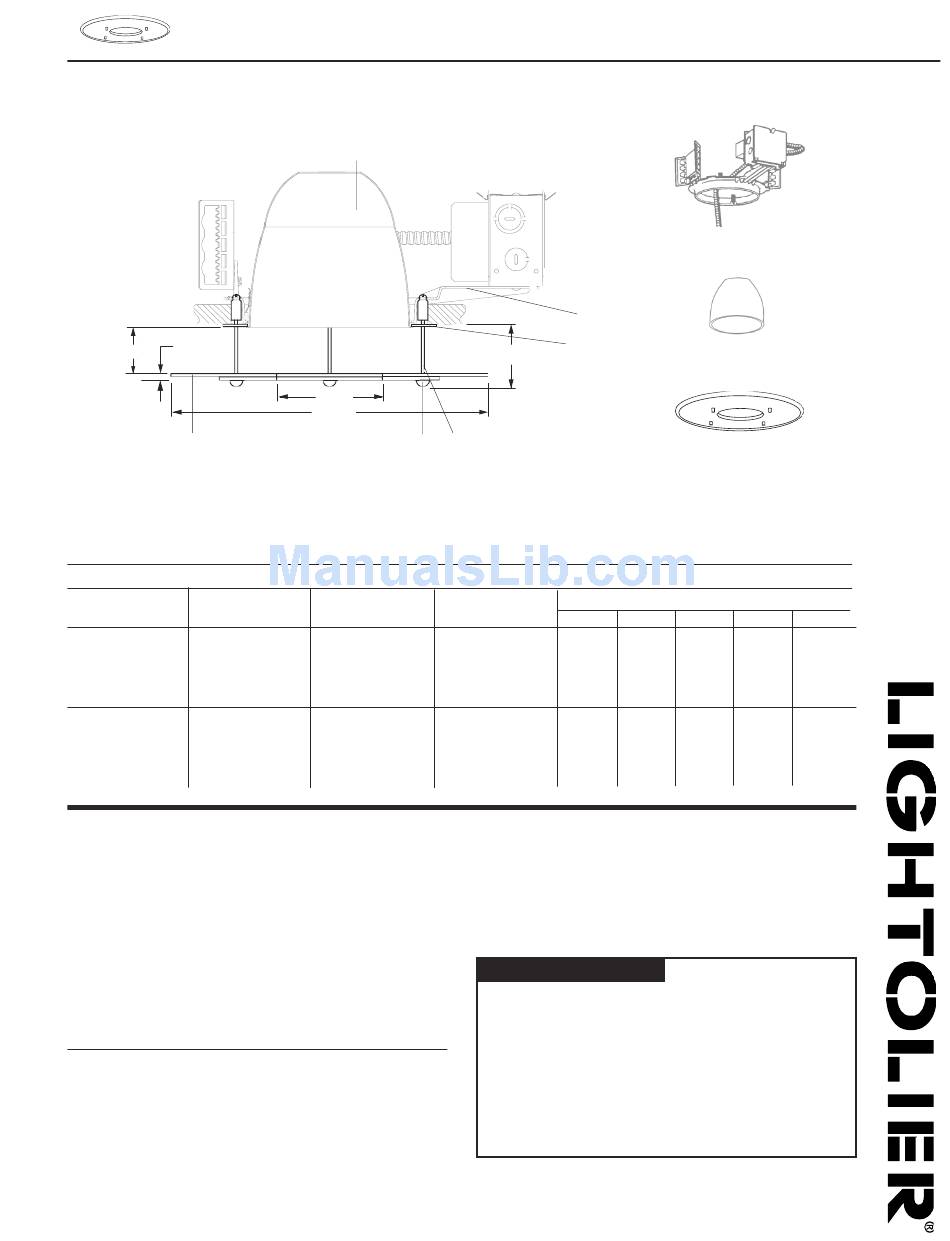

Lightolier Calculite GC Specification

Page 1 of 1
D
E
1
Complete Fixture consists of decorative element, standard Frame-In Kit and trimless reflector. Select each separately.
Ordering Information
Decorative Element
Catalog No. Finish/Color
GC6A
Amber Edge
GC6G Green Edge
GC6B Blue Edge
GC7A
Amber Edge
GC7G
Green Edge
GC7B Blue Edge
Features
1. Decor Disc: Two layers of hand fused art glass. A white base fused to a
colorful edge capped with a clear layer of glass.
2. Mounting Rod: 4 stainless steel rods 1/8" diameter.
3. Decorative Fastener: Four placed 90˚ apart, with matte white painted
finish.
4. Trim Ring: .090" thick aluminum ring with matte white finish.
5. Reflector: See reflector trim for Specification Sheet.
6. Frame-In Kit: See Frame-In Kit for Specification Sheet.
Lighting Data
See applicable downlight Specification Sheet for base lighting data. Multiply the
candlepower values or the coefficient of utilization by the following factors:
A Lamp downlights
Compact Fluorescent lamp downlights
PAR Lamp downlights
Calculite
5
B
A
3
Trimless Reflector
For use with all Calculite For use with all Calculite
6" Compact Fluorescent 6" Compact Fluorescent
and Incandescent open and Incandescent open
downlight Frame-In Kits
trimless downlight
reflectors except ProSpec. except ProSpec.
For use with all Calculite For use with all Calculite
7" Compact Fluorescent 7" Compact Fluorescent
and Incandescent open and Incandescent open
trimless downlight downlight Frame-In Kits
reflectors except ProSpec. except ProSpec.
6" 7"
.70 .70
.65 .75
.85 .85
® Decorative Claritas Art Glass
6" & 7"Aperture Decorative Glass Edge Lit Circle
6
4
C
2
Frame-In Kit
A
12"
13 1/2"
Mechanical
Decorative Elements securely fastened to 4 mounting frame rods with 4 half
round decorative spheres (3/8" dia.) and 4 (1/8" dia.) stainless steel rods for
maximum security.
Labels
U.L. (Damp Location)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
Frame-In Kit
Trimless Reflector
Glass Edge Lit Circle
Dimensions
B C D E
4" 2 1/4" 1/4" 1 3/4"
5" 2 1/4" 1/4" 1 3/4"
Type:
www.lightolier.com
GC
