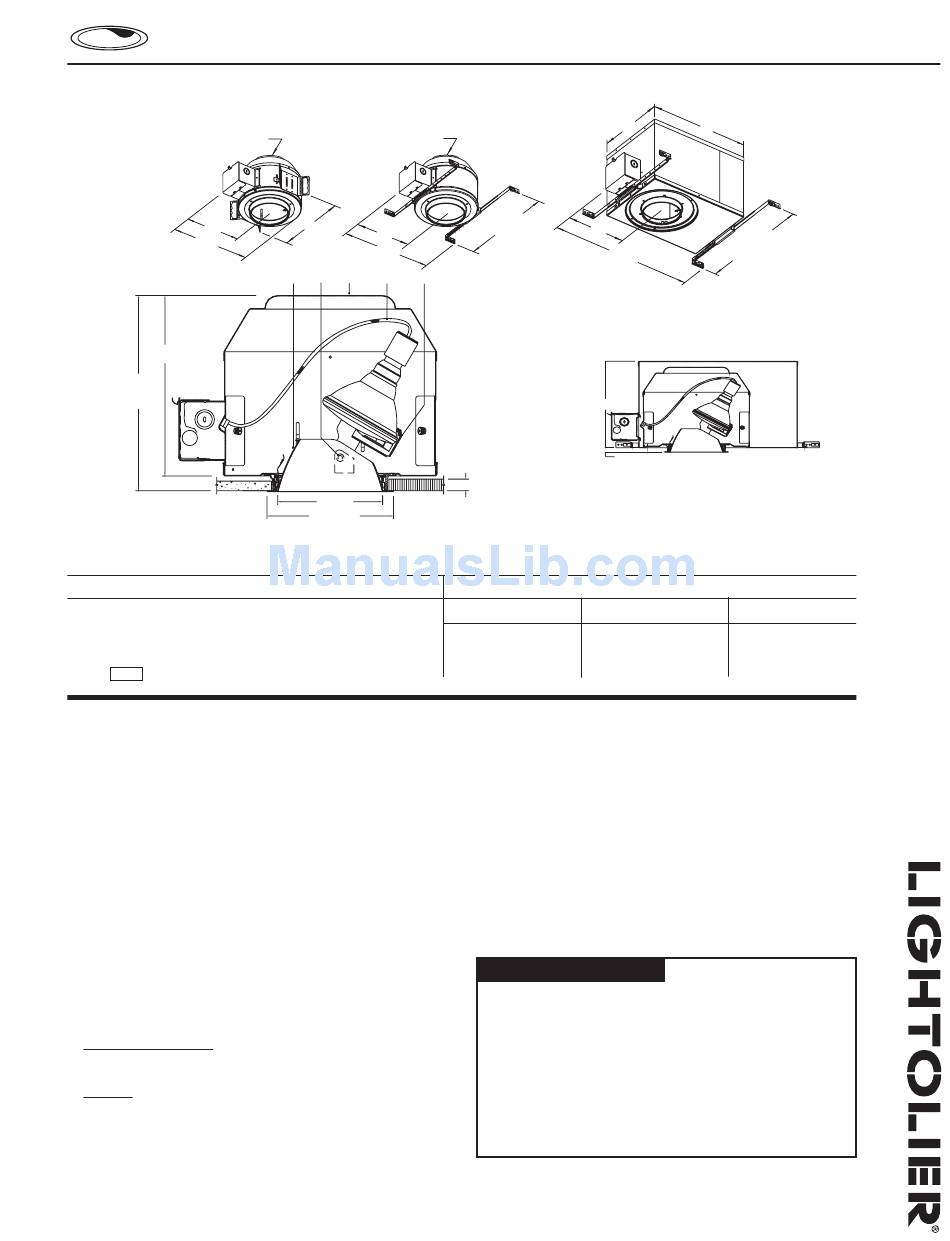

Lightolier Calculite C6P38A Specification

Calculite
Page 1 of 2
7 8
10 3/8"
11 1/8"
11 5/8"
* 11 1/8" min. is for up to 3/4" thick ceiling.
Ceiling Cutout: 6 11/16" Dia.
Reflector Trim
C6P38A CLW
C6P38A CLP
C6P38A CLW30
C6P38A CLP30
C6P38A
Features
1. Aperture Cone: 16 ga. aluminum. Slot cut cone opening cone minimizes
view into fixture. For maximum shielding order the 30° bias cut cone.
Keyed to lampholder assembly for true aiming of lamp through aperture
center and to prevent incorrect installation of cone. Available with painted
white or polished flange. Interchangeable with other Evolution 6" line
voltage trims.
2. Lampholder Assembly: Die-cast aluminum "U" shape lamp and
accessory holder provided with tension springs for fast snap-in/snap-out
side mounting of lamp and various accessories. 40° vertical tilt, 358°
horizontal rotation; lockable. Can be relamped without disturbing aiming.
Hot aiming can be done with the blade of screwdriver. Accepts up to two
4 3/4" dia. accessories. Can be relamped from above.
3. Socket Harness: Medium base porcelain socket with nickel plated
screw shell, No. 18 SF-1 leads to keyed plug-in quick connector for power
connection to junction box.
4. Vertical / Horizontal Locking: Single screw adjustment and locking
system.
5. Frame-In Kit: Compatible frame-In kits are listed above. See separate
frame-in kit specification sheets for details.
Non-IC and Non-IC AirSeal
sides and wiring compartments and must not be placed above fixture in a
manner which will entrap heat.
IC-AirSeal - Fixture may be in direct contact with insulation.
®
Options & Accessories
Reflector Finishes
1
Clear:
Black:
Comfort Clear Diffuse: CCD
Champagne Bronze:
Evolution Incandescent Adjustable Accent
®
9 1/2" DIA
C6D120
Non-IC
13"
9 1/4"
15 3/8"
O.A.
1 4
5
6" Dia.
7 1/4" Dia.
Specular Clear, White Flange
Specular Clear, Polished Flange
Specular Clear, White Flange (30° Cut)
Specular Clear, Polished Flange (30° Cut)
Add suffix. See options for other finishes
- Insulation must be kept 3" away from fixture
®
CL Gold: GD
BK White: WH
CCZ
9 1/2" DIA
C6DA120
Non-IC AirSeal
13 3/4" TO 24"
Adjustment
9 1/4"
(Mounting Bars
Included)
15 3/8"
O.A.
3 2
1 1/4" Max. Ceiling Thk.
C6P38ACLW / C6D120 or
C6P38ACLW / C6DA120
Frame-In Kit
Non-IC
C6D120
120W PAR38
Options & Accessories (cont.)
Specify desired flange: W White, P Polished
1
For 30° bias cut cone, add suffix "30".
Evolution 6" Trims with Non-IC Frames
C6P38A
1 Primary Color Lens or 1 Secondary Color Lens or
1 Mixing Color Lens and 1 Specialty Filter
C6P38A30 1 Primary Color Lens or 1 Secondary Color Lens or
1 Mixing Color Lens and 1 Specialty Filter
Labels
UL listed (suitable for damp locations), I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • E0711
6" Aperture PAR38 Reflector Trim
18 1/8"
13 1/2"
®
10 1/4"
13 3/4" TO 24"
Adjustment
24 1/4"
(Mounting Bars
O.A.
Included)
11 1/4"
1/2" to 1" Thk. Ceiling
C6P38ACLW / C6DAIC
Non-IC AirSeal
®
C6DA120
120W PAR38
Type:
C6P38A
C6DAIC
®
IC AirSeal
IC-AirSeal
®
C6DAIC
