IS_CD7-STEM
Lighting Systems
9" (22.86cm)
3-1/4"
(8.26cm)
Direct Lens
Direct/Indirect Lens
Direct Louver
Direct /Indirect Louver
SAMPLE RUNS
45-1/2"
(115.57cm)
4-Foot
49" (124.46cm)
94-1/2" (240.03cm)
8-Foot
98" (248.92cm)
49" (124.46cm)
94-1/2" (240.03cm)
98" (248.92cm)
20-Foot
20' 5" (622.30cm)
We reserve the right to change details of design, materials and finish.
Advertisement
Table of Contents
Related Manuals for Lightolier IS_CD7-STEM
Summary of Contents for Lightolier IS_CD7-STEM
-
Page 1: Lighting Systems

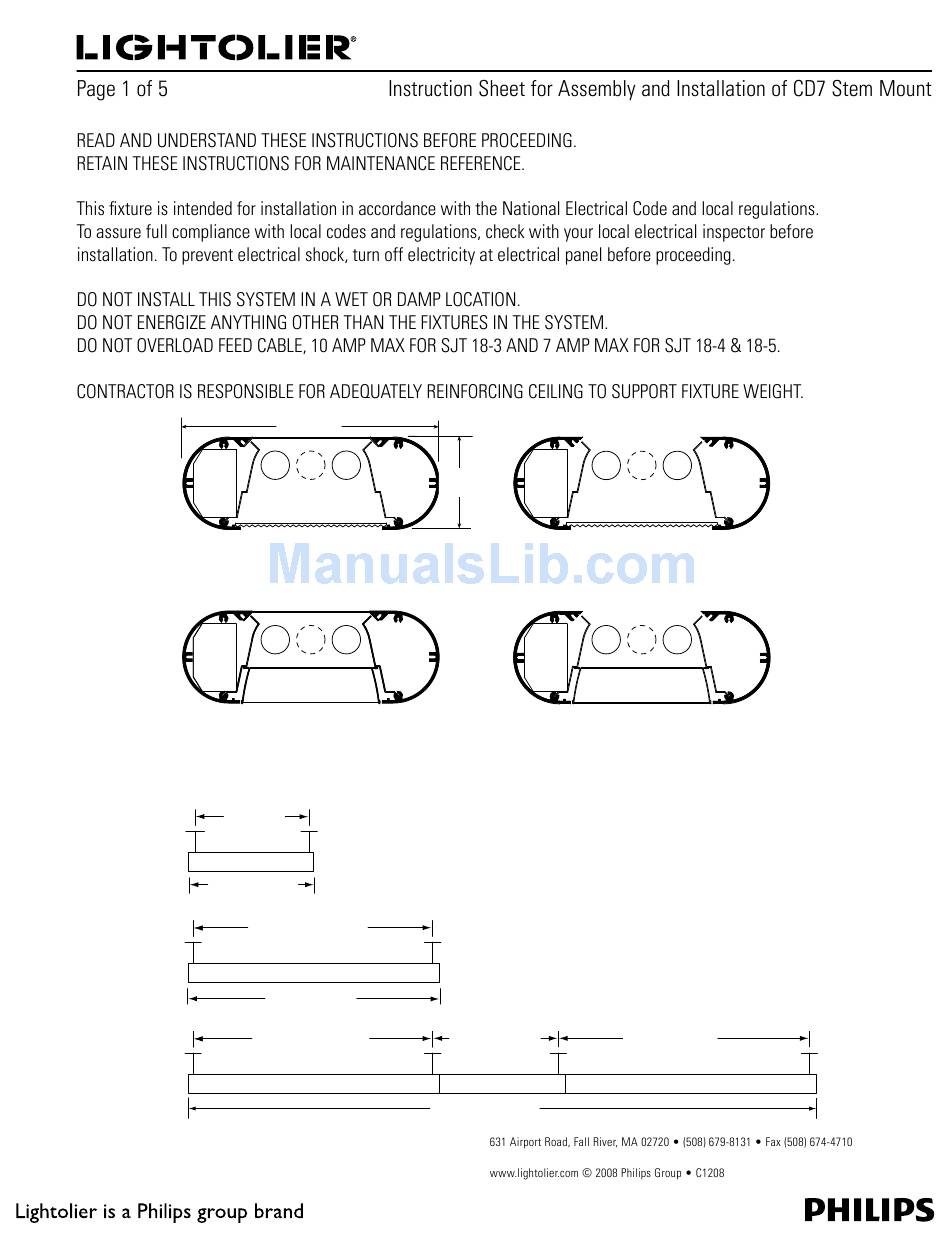

IS_CD7-STEM Lighting Systems 9" (22.86cm) 3-1/4" (8.26cm) Direct Lens Direct/Indirect Lens Direct Louver Direct /Indirect Louver SAMPLE RUNS 45-1/2" (115.57cm) 4-Foot 49" (124.46cm) 94-1/2" (240.03cm) 8-Foot 98" (248.92cm) 49" (124.46cm) 94-1/2" (240.03cm) 98" (248.92cm) 20-Foot 20' 5" (622.30cm) We reserve the right to change details of design, materials and finish. - Page 2 IS_CD7-STEM Lighting Systems PROCEDURE TO INSTALL STEM MOUNT FIXTURE Step 1. Be Sure Electrical Power Is Off Step 2. Sloped Ceiling Step 3. Mark Off Mounting Center Step 4. Secure Mounting Plates MOUNTING J-BOX 45-1/2” (115.57cm) for 4’ Fixture CENTER CENTER 94-1/2”...
- Page 3 IS_CD7-STEM Lighting Systems PROCEDURE TO INSTALL STEM MOUNT FIXTURE (CONT’D) Step 5. Secure Stems To Fixtures (NOTE: Threads Must be fully engaged) Step 6. Mount Fixture J-BOX CENTER J-BOX (by others) MOUNTING PLATE 3/4”Ø HOLE 8-32 SCREW BALL ALIGNER TOGGLE NUT (by others) (by others) CANOPY...
- Page 4 IS_CD7-STEM Lighting Systems PROCEDURE TO INSTALL TANDEM MOUNT FIXTURE Step 1. Be Sure Electrical Power Is Off Step 2. Sloped Ceiling Step 3. Remove End Covers Step 4. Remove Stem Bracket Step 5. Tandem Mount Fixtures connections. 8-32 HEX NUT COVER PLATE END COVER (loose parts bag)
- Page 5 IS_CD7-STEM Lighting Systems PROCEDURE TO INSTALL TANDEM MOUNT FIXTURE (CONT’D) Step 6. Replace Reflectors FIXTURE HOUSING REFLECTOR LENS Figure 4 Please consult factory regarding stem shortening. We reserve the right to change details of design, materials and finish.
