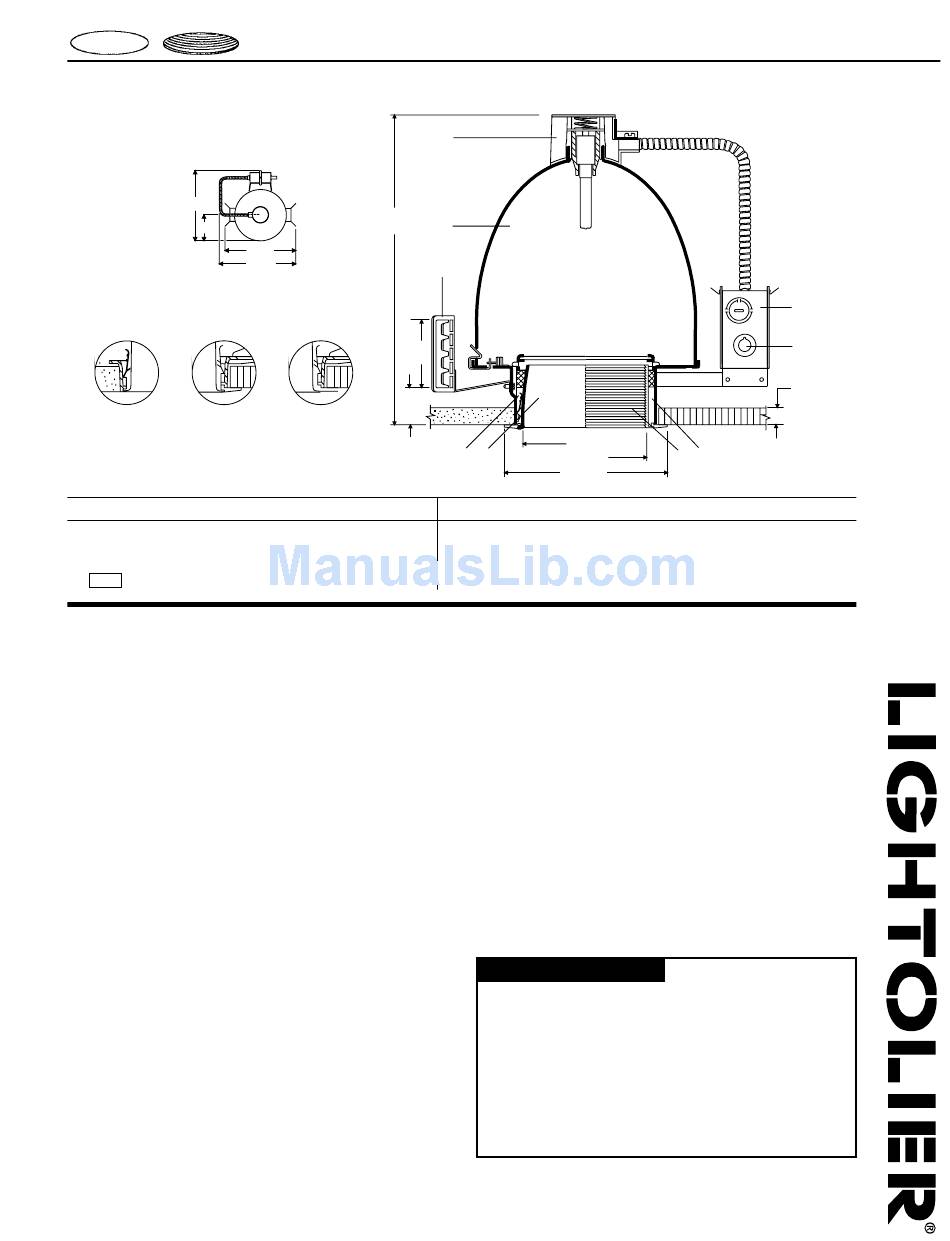

Lightolier Calculite 784 Specification

6” aperture t4 (t.h.) ellipsoidal reflector

Advertisement

Quick Links

Page 1 of 2
14 1/2"
5 3/8"
14 1/2"
15 1/2"
Top View
Molded
Flush Trim
Trim Ring
(Molded trim ring removed)
Ceiling Cutout: 6 1/2" Dia.
Reflector Trims
784CLW
Specular Clear finish with white flange
784CLP
Specular Clear finish with polished flange
784CL
Specular Clear finish with molded trim ring (flangeless)
784
Add suffix for other finishes (see options)
Features
1. Socket Cup: Heat dissipating die-cast aluminum with mini-can base porce-
lain socket, nickel plated screw shell No.18 SF1 leads to J-Box effectively
acts to cool and properly stabilize lamp temperature. Adjustable socket fea-
ture allows same fixture to be operated as wide or narrow distribution
downlight.
2. Mounting Brackets: Adjust vertically from inside of fixture. Durable 16
ga. steel construction. Use with standard 3/4" or 1 1/2" lathing channels (by
others), or Lightolier accessory mounting bars.
3. Retaining Springs: Precision tooled springs secure aperture mounting
frame for quick tool-less installation.
4. Reflector: Specular clear Alzak
®
upper reflector, retained by spring latches
for inspection and maintenance, top relampable.
5. Junction Box: 14 ga. steel, 4" x 3 1/2" x 2" box.
6. Thermal Protector: Meets NEC and UL requirements. Insulation must be
kept 3" away from fixture sides and wiring compartments and must not be
placed above fixture in a manner which will entrap heat.
7. Aperture Cone: 16 ga. Specular Alzak
groove. Available with white or polished flange, or with removable white
molded trim ring (field paintable).
8. Multigroove Baffle: One piece seamless aluminum. Sharply detailed con-
centric rings with "sawtooth" profile, optical black finish.
9. Mounting Collar: Die-formed steel painted in baked black enamel.
Other Reflector Finish Options
Comfort Clear Diffuse
CCD
Specular Black
Specular Gold
GD
Black Multi-Groove
(MG is only available with molded trim ring)
Flange Options
White
W
Polished Flange
P
Flangeless
Leave Blank (molded trim ring)
Calculite
®
Incandescent Open Downlight
1
14 5/8"
4
2
3"
White or
Polished Flange
1 1/8" min.
1 7/8" max.
(Ceiling Runner)
®
aluminum, or optical black multi-
BK
MG
6" Aperture T4 (T.H.) Ellipsoidal Reflector
6" Dia..
5 5/8" Dia.
3
7
7 1/4" Dia.
Frame-In Kit
7084
T4 400W-500W Tungsten
Halogen Frosted (Mini-can base)
Accessories/Options
18" Mounting Bars
27" Mounting Bars
T-Bar Anchor Clips
Wood Joist Mtg. Bars
Sloped Ceiling Adapters
Step Down Transformer
Chicago Air Plenum
Electrical
UL Listed for maximum of 8 No. 12, 75˚C through branch circuit
conductors, or 60˚C supply conductors for end of run.
Labels
UL Listed (Suitable for damp locations), I.B.E.W.
Install fixtures with minimum spacing of: 4' between centers of adjacent fix-
tures; and 3" between top of fixture and overhead building member; and 2'
between fixture center and building side wall.
Alzak
®
is a registered trademark of ALCOA.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2003 Genlyte Thomas Group LLC (Lightolier Division) • B0703
784/7084
5
6
1" max.
Ceiling Thickness
8
9
Lamp
1950 (set of 2)
1951 (set of 2)
1956 (set of 4, for 1950 & 1951 bars)
7994 (set of 2)
7925 (see SCA specification sheet)
7997 (see 7997 specification sheet)
LC (add suffix to Frame-in Kit, requires
access from above ceiling)
Type:
www.lightolier.com
