Installing the main unit

Installing the main unit

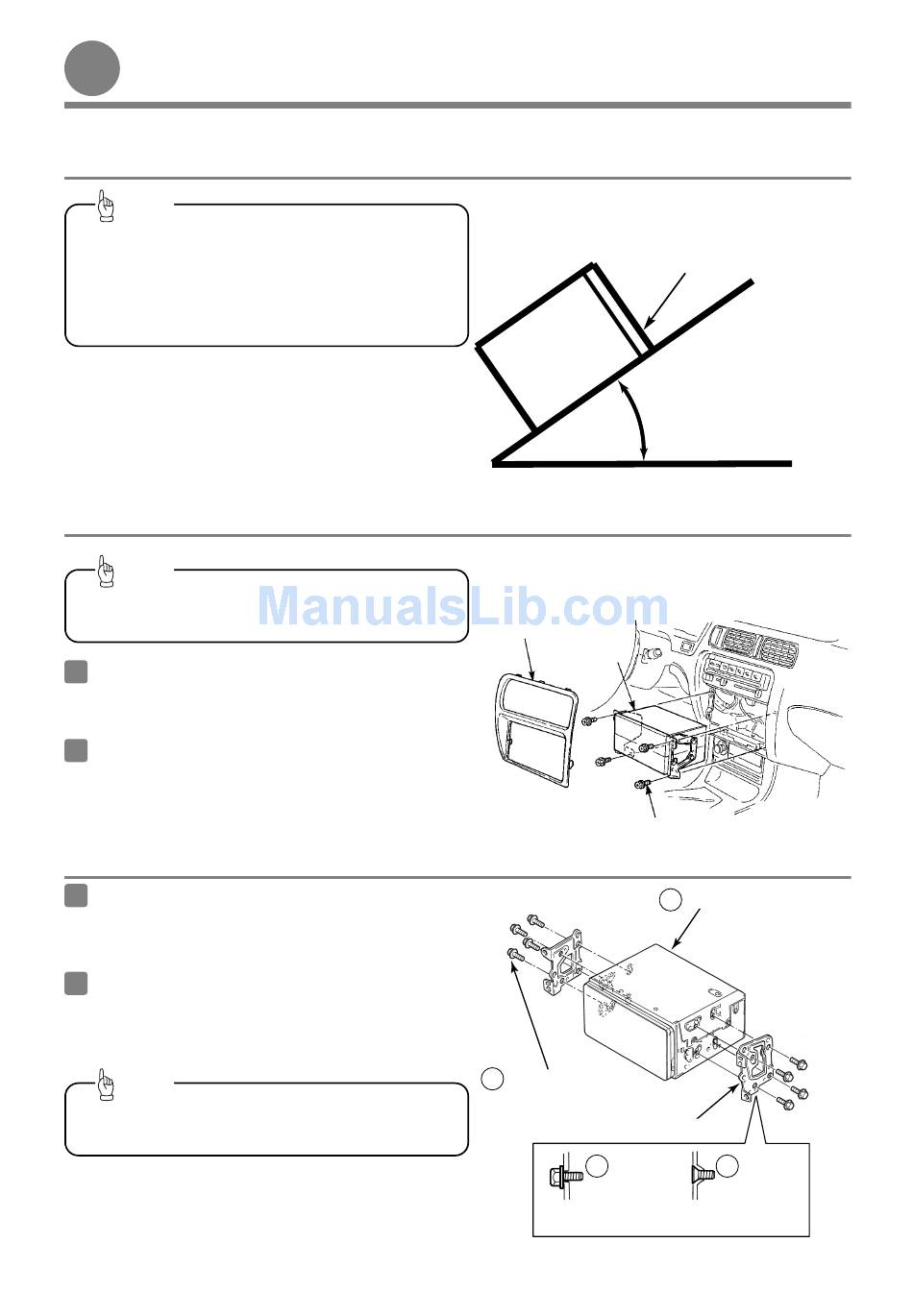

- Installation angle -

Tip
To maintain proper function, the unit must be
mounted less than 30 degrees. If the angle is in
excess of 30 degrees, DVDs, CDs, skipping and
improper DVD, CD and Memory Stick ejection may
occur.
- Mounting the main unit (example)-
Tip
Connect all cables before installing the main
unit.
1
Remove the pocket and any other accessories
from the center cluster to make room for the main
unit.
2
Remove the mounting brackets for the pocket.
3
Attach the brackets to the main unit.
4
Install the main unit in the vehicle.
Tip
Be sure to use the accessory screws (M5x8) to
install.
Center cluster panel
Pocket, etc
Hex-head bolt
7
(M5 x 8) x 8
7
Select the screws in accordance with the shapes
of the screw holes in the mounting bracket.
- 16 -
Front
30˚ or less
Mounting bolts
Main unit
1
Mounting bracket
Hex-head bolt Flathead
8
screw
(M5 x 8) x 8
(M5x8) x 8
090003-2817A700
0412DE (CN)
Level (reference)
