- Using the splicing connector -

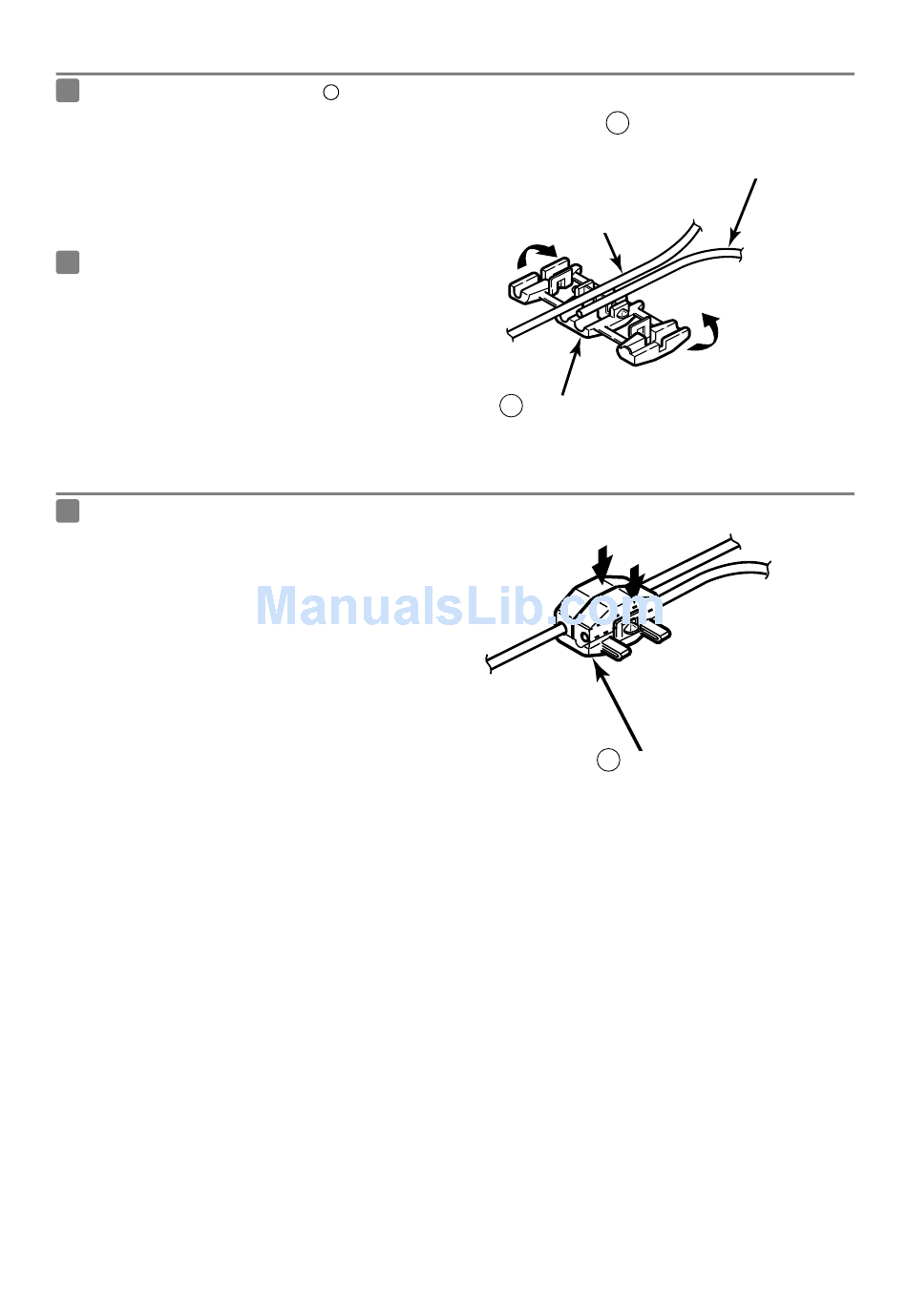

1
Insert the connection cable
pulse signal cable (purple/white), parking brake
cable (red/white) or reverse cable (green)] and
the vehicle cable into the splicing connector.
2
Push in the terminal (the metal part) of the
splicing connector using a pair of pliers.
3
Press down the cover of the splicing connector
and squeeze it until it locks.
[vehicle speed
4
- 11 -
Interconnecting cable
4
Vehicle speed pulse signal cable
(purple/white), parking brake cable
(red/white) or reverse cable (green)
Harness in the car
Splicing connector
9
Lock
Splicing connector
9
