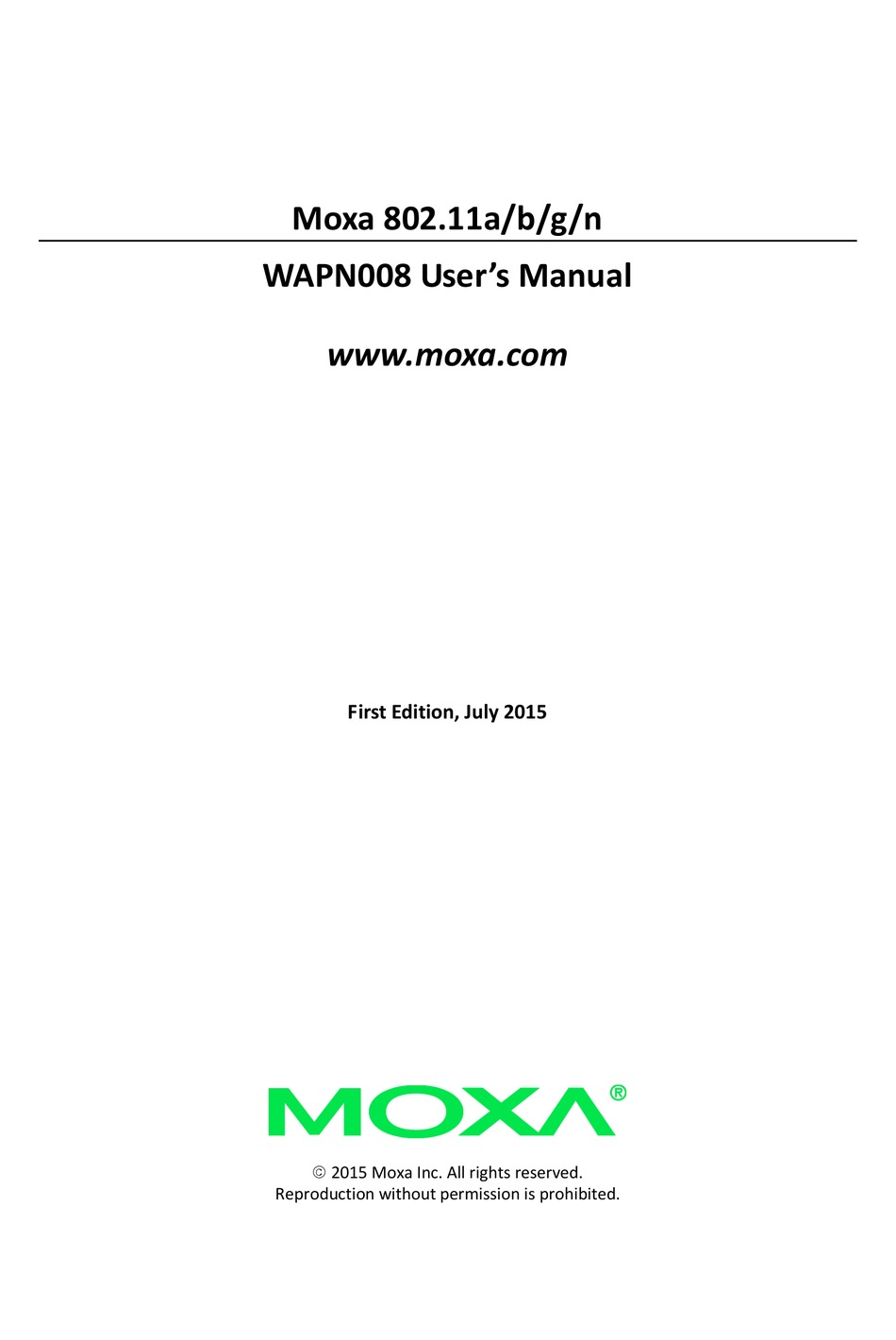

- Page 1 Moxa 802.11a/b/g/n WAPN008 User’s Manual www.moxa.com First Edition, July 2015 2015 Moxa Inc. All rights reserved. Reproduction without permission is prohibited.
- Page 2 WAPN008 User’s Manual The hardware and software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice Copyright 2015 Moxa Inc. All rights reserved.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Introduction Overview Specification Chapter 2 Getting Started Module Layout Block Diagram Hardware Installation Software Installation... -
Page 4: Overview Specification
WAPN008 User’s Manual Introduction Introduction Chapter 1 The following topics are covered in this chapter: Overview Specifications... - Page 5 Introduction Overview WAPN008 PCI module is designed to provide wireless communication for Moxa industrial wireless products. It communicates via the standard 802.11a/b/g/n protocols on standard 2.4GHz/5GHz and 5GHz DFS channels. The WAPN008 uses the AR9344 SoC Wireless chipset from Atheros.
- Page 6 WAPN008 User’s Manual Introduction Typ. 24±1.5 dBm @ 6 to 24 Mbps, Typ. 22±1.5 dBm @ 36 Mbps, Typ. 20±1.5 dBm @ 48 Mbps, Typ. 18±1.5 dBm @ 54 Mbps 802.11n (2.4 GHz): Typ. 23±1.5 dBm @ MCS0/8 20 MHz, Typ. 17±1.5 dBm @ MCS7/15 20 MHz Typ.
-
Page 7: Getting Started
Getting Started Chapter 2 This chapter covers the module layout, and block diagram, hardware installation of the WAPN008. Software installation is covered in the next chapter. The following topics are covered: Module Layout Block Diagram Hardware Installation... -
Page 8: Module Layout
WAPN008 User’s Manual Getting Started Module Layout Top and Bottom Block Diagram Below is a block diagram of the WAPN008. - Page 9 WAPN008 User’s Manual Getting Started Connector Locations...
- Page 10 WAPN008 User’s Manual Getting Started...
- Page 11 WAPN008 User’s Manual Getting Started PCI Bus Connector PIN Assignments Function Connect to Function Connect to 3.3v 3.3v 3.3v 3.3v 3.3v 3.3v ERXD3 PHY RGMII 3.3v 3.3v ERXD2 PHY RGMII 3.3v 3.3v ERXD1 PHY RGMII 3.3v 3.3v ERXD0 PHY RGMII 3.3v...
-
Page 12: Hardware Installation
The WAPN008 can be installed into all Moxa wireless system board series. Step for Installation 1. Install the WAPN008 PCI card on the system board. Apply pressure to both bus connectors and gently press the board onto the stack. The board should slide into the matching bus connectors. - Page 13 This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: "Contains FCC ID: SLE-WAPN008 ”...
- Page 14 2) Please see the full Grant of Equipment document for other restrictions. This radio transmitter FCCID: SLE-WAPN008 has been approved by FCC to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated.
