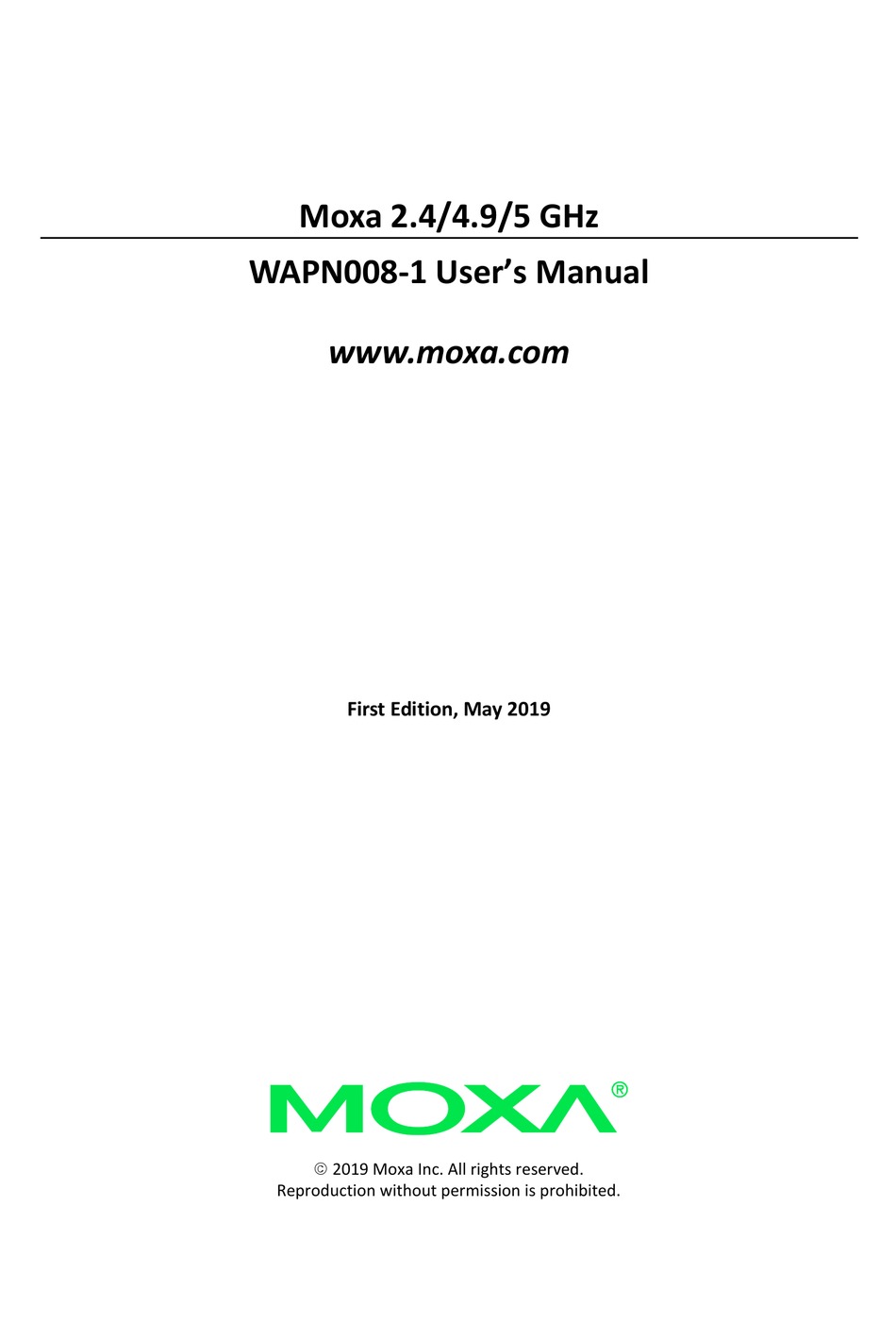

- Page 1 Moxa 2.4/4.9/5 GHz WAPN008-1 User’s Manual www.moxa.com First Edition, May 2019 2019 Moxa Inc. All rights reserved. Reproduction without permission is prohibited.
- Page 2 WAPN008-1 User’s Manual The hardware and software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice Copyright 2019 Moxa Inc. All rights reserved.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Introduction Overview Specification Chapter 2 Getting Started Module Layout Block Diagram Hardware Installation Software Installation... -
Page 4: Overview Specification
WAPN008-1 User’s Manual Introduction Introduction Chapter 1 The following topics are covered in this chapter: Overview Specifications... - Page 5 WAPN008-1 User’s Manual Introduction Overview WAPN008-1 PCI module is designed to provide wireless communication for Moxa industrial wireless products. It communicates via 2.4 GHz/4.9 GHz/5 GHz channels. The WAPN008-1 uses the AR9344 SoC Wireless chipset from Atheros. Specification Features WAPN008-1...
-
Page 6: Getting Started
Getting Started Chapter 2 This chapter covers the module layout, and block diagram, hardware installation of the WAPN008-1. Software installation is covered in the next chapter. The following topics are covered: Module Layout Block Diagram Hardware Installation... -
Page 7: Module Layout
WAPN008-1 User’s Manual Getting Started Module Layout Top and Bottom Block Diagram Below is a block diagram of the WAPN008-1. - Page 8 WAPN008-1 User’s Manual Getting Started Connector Locations...
- Page 9 WAPN008-1 User’s Manual Getting Started PCI Bus Connector PIN Assignments Function Connect to Function Connect to 3.3v 3.3v 3.3v 3.3v 3.3v 3.3v ERXD3 PHY RGMII 3.3v 3.3v ERXD2 PHY RGMII 3.3v 3.3v ERXD1 PHY RGMII 3.3v 3.3v ERXD0 PHY RGMII 3.3v...
-
Page 10: Hardware Installation
The WAPN008-1 can be installed into all Moxa wireless system board series. Step for Installation 1. Install the WAPN008-1 PCI card on the system board. Apply pressure to both bus connectors and gently press the board onto the stack. The board should slide into the matching bus connectors. - Page 11 This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: "Contains FCC ID: SLE-WAPN008-1 ”...
- Page 12 Any party of the installer who likes to use the module of 4.9GHz band shall fulfill licensing requirement (§90.1207). The installation to Aeronautical mobile operations are prohibited (§90.1205). The end product with an embedded WAPN008-1 module may also need to pass the FCC Part 15 unintentional emission testing requirements and be properly authorized per FCC Part 15.
- Page 13 WAPN008-1 User’s Manual Getting Started...
