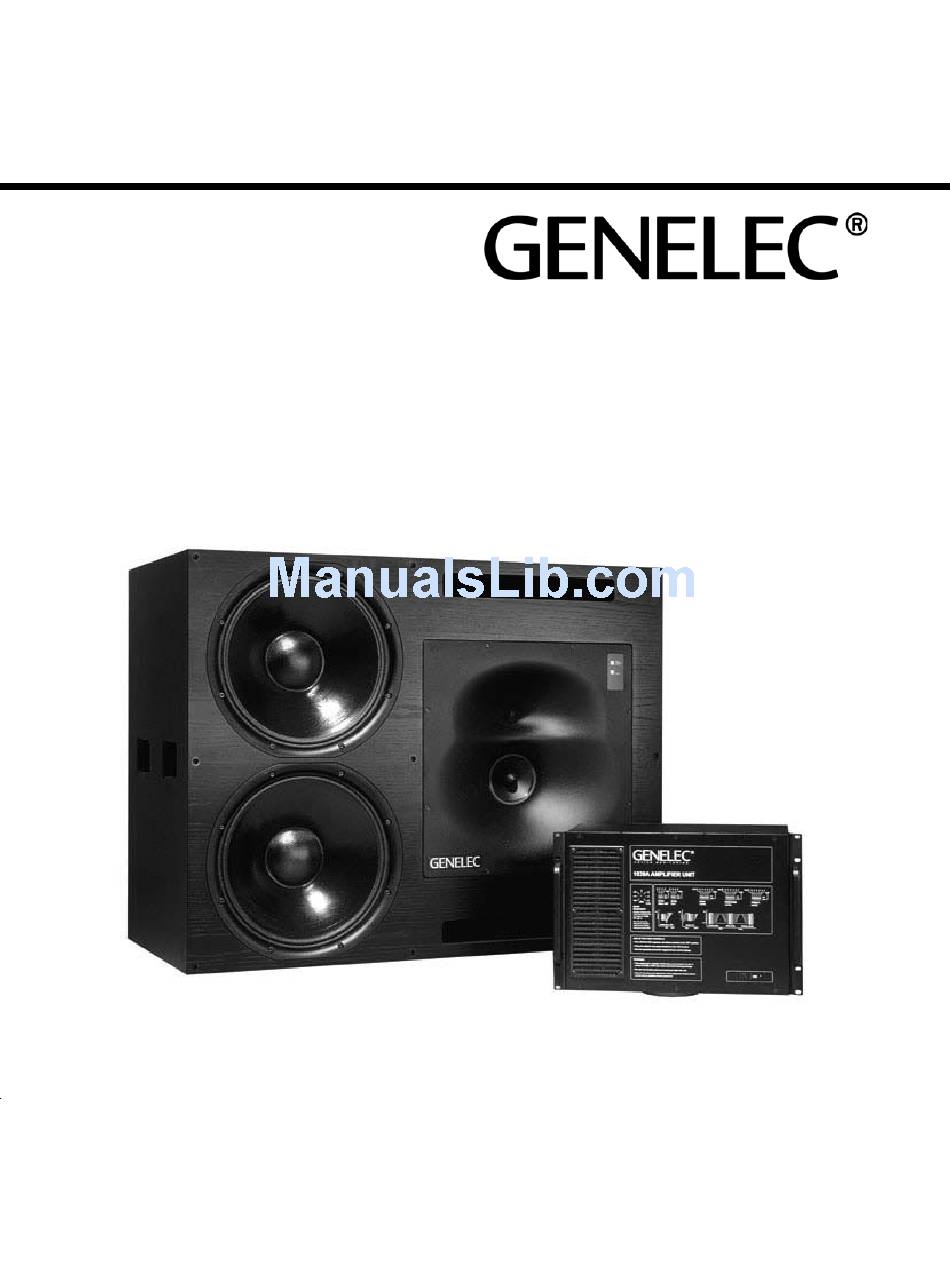

- Page 1 HT330A Operating Manual Genelec HT330A Three-Way Active Loudspeaker...
-
Page 2: Installing The Amplifier
Great care should be taken over how and treble drivers are mounted in a Genelec the rear panel of the amplifier unit. the loudspeaker is mounted into the wall. - Page 3 Loudspeaker cabinet Fig 2.1 Horizontal configuration. Amplifier unit Allen key Loudspeaker Mains connector connecting cable LED connector Fig 1. The HT330A system. Fig 2.2 Vertical configuration. Fig 3. Speaker mounting. Fig 5. Eliminating discontinuities. Fig 4. Speaker mounting details. Fig 6. Recess for loudspeaker connectors. (Front view) Fig 7.
-
Page 4: Connecting Cable
Recess for loudspeaker Speaker mounting Control connectors environment Bass Roll-Off Bass Tilt Bass Level Mid Level Treble Level Flat anechoic All OFF All OFF All OFF All OFF All OFF A space at least 120 mm (4 3/4”) deep must response (factory exist to allow for the cable connectors behind setting) -
Page 5: Safety Considerations
When com- Safety considerations paring the results, the following items should This is to certify that Genelec HT330A be noted. Although the HT330A has been designed in Control Room Monitoring System conforms... - Page 6 ") Width 483 mm (19") Depth 250 mm (9 ") www.genelec.com Genelec Document D0072R001 Copyright Genelec Oy 1.2006. All data subject to change without prior notice International enquiries: In the U.S. please contact: In China please contact: Genelec, Olvitie 5 Genelec, Inc., 7 Tech Circle...
